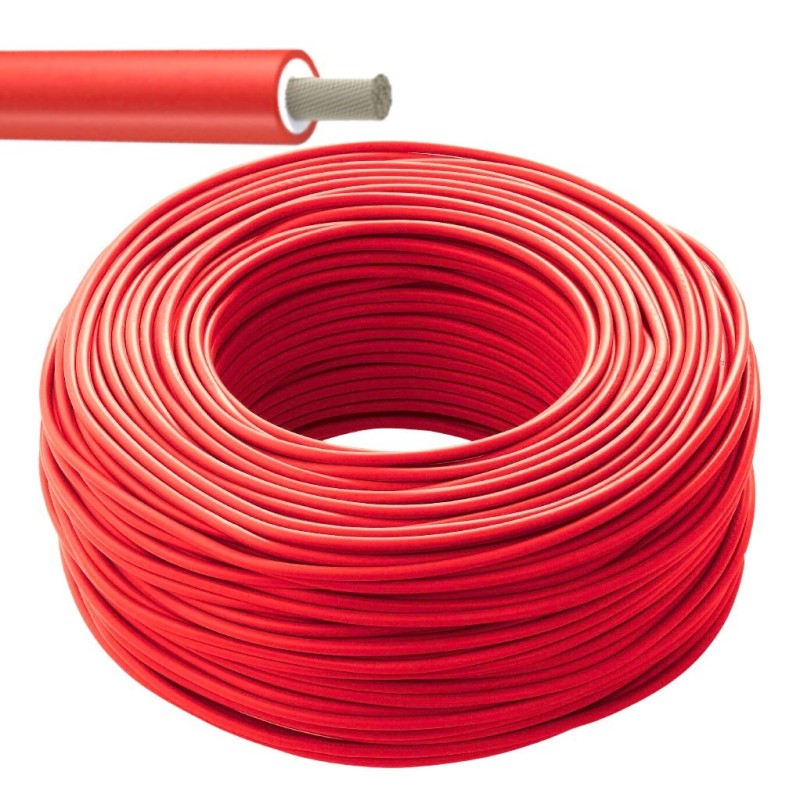

100m Red Unipolar Photovoltaic Cable coil 4 sqmm N50830750291

100m Red Unipolar Photovoltaic Cable coil 4mmq

Unipolar Cable with grade 5 tin-plated copper flexible conductor for cabling of photovoltaic systems. Resistant to mechanical and climatic stresses. Solar cable for installation in dry and humid rooms, under ground and also outdoors under direct sunlight.
Insulation: LSZH compound based on crosslinked rubber. Outer sheath: LSZH compound based on special crosslinked rubber, resistant to UV rays.
Specific for Photovoltaic systems with nominal voltage U o/U600/100V in alternating current and not over 1500V in direct current, flame retardant, halogen free, designed to last at least 25 years.

Technical specifications:
- Continuous operating temperature: -40°/+90°C;
- Maximum operating temperature: +120°C;
- Minimum operating temperature: -40°C;
- Peak temperature: 250°C;
- Wire life at 60°C: 25 years;
- Test voltage: 5Kv;
- Minimum bending range: 6 times the external diameter;
- Break load: 50 N/mmq;
- Colour: Red;
- Diameter: 4 mmq;
- Coil length: 100 mt.
