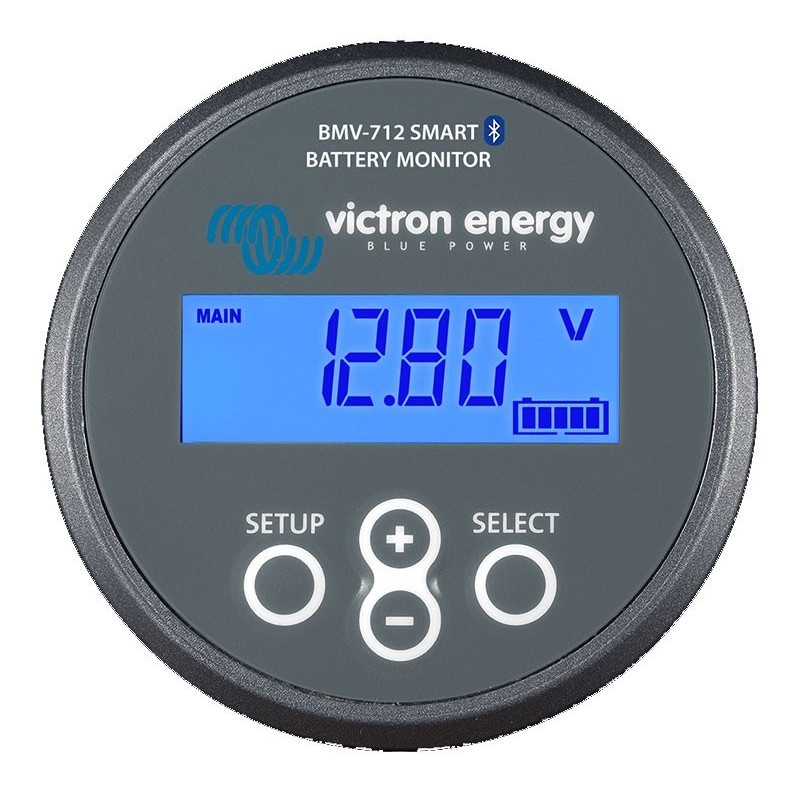

Victron BMV 712 Smart Monitor 2 Batteries 6,5-70 VDC with cables and shunt UF21396Z

BMV 712 Smart Victron Energy Monitor 2 Batteries 6,5-70 VDC with cables and shunt.
With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance.

Specifications:
Supply voltage range 6,5 - 70 VDC
Current draw, back light off < 1mA
Input voltage range, auxiliary battery 6,5 - 70 VDC
Battery capacity (Ah) 1 - 9999 Ah
Operating temperature range -40 +50°C (-40 - 120°F)
Measures voltage of second battery, or temperature, or midpoint: yes
Temperature measurement range -20 +50°C
VE.Direct communication port Yes
Relay 60V / 1A normally open (function can be inverted)
RESOLUTION & ACCURACY (with a 500 A shunt)
Current ± 0,01A
Voltage ± 0,01V
Amp hours ± 0,1 Ah
State of charge (0 – 100%) ± 0,1%
Time to go ± 1 min
Temperature (0 - 50°C or 30 - 120°F) ± 1°C/°F
Accuracy of current measurement ± 0,4%
Accuracy of voltage measurement ± 0,3%
INSTALLATION & DIMENSIONS
Installation Flush mount
Front 63mm diameter
Front bezel 69 x 69mm (2.7 x 2.7 inch)
Body diameter 52mm (2.0 inch)
Body depth 31mm (1.2 inch)
STANDARDS
Safety EN 60335-1
Emission / Immunity EN 55014-1 / EN 55014-2
Automotive ECE R10-4 / EN 50498
ACCESSORIES
Shunt (included) 500A / 50mV
Cables (included)
10 meter 6 core UTP with RJ12 connectors, and cable with fuse for ‘+’ connection
Temperature sensor Optional (ASS000100000)
