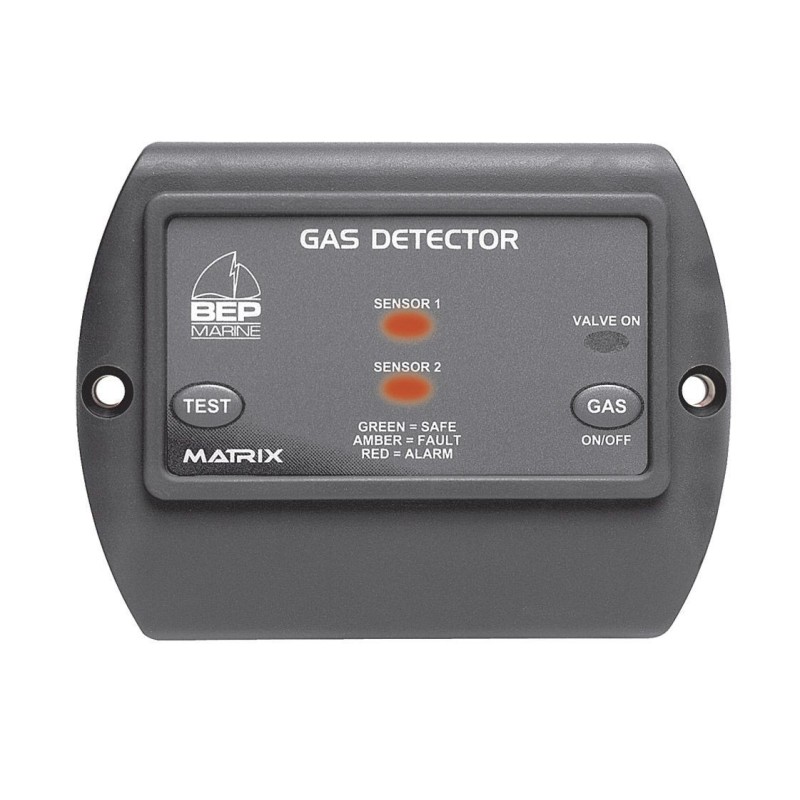

Uflex 600-GDL BEP Gas Detectors with LPG, Petrol and CNG fume sensor UF63597X

Uflex 600-GDL BEP Gas Detectors with LPG, Petrol and CNG fume sensor

The BEP Detectors use microprocessor control to ensure correct sensor sensitivity. The Detectors can control two sensors which detect both LPG and Petrol, with visual and audible alarms.
• Dual sensor for LPG and petrol
• Visual and audible alarms; provision for external alarm
• Automatic shut-off solenoid control with pulse and hold circuit for low power draw (600-GDL only)
• Self-testing
• Provision of bilge blower

600-GD
600-GD detects LPG, Petrol and CNG fumes. Supplied with one sensor, with an option for a second sensor (BL-SL-L) output for remote alarm and blower unit. 600-GD can be used on 12 or 24V systems.

600-GDL
Same features as the 600-GD, with the ability to switch a on valve. It contains a unique “Pulse & Hold” circuit within the detector. This reduces power consumption and heat while the gas is turned on.

Voltage (VDC): 10-32
Current (mA): 350 max
Alarm sensitivity: 20% of the lower explosion limit
Output current (mA): 800 max
Solenoid (mA): 700 impulse, 250 seal
Dimensionis 67x88x17 mm (2.4x3.5x0.7 inches)
