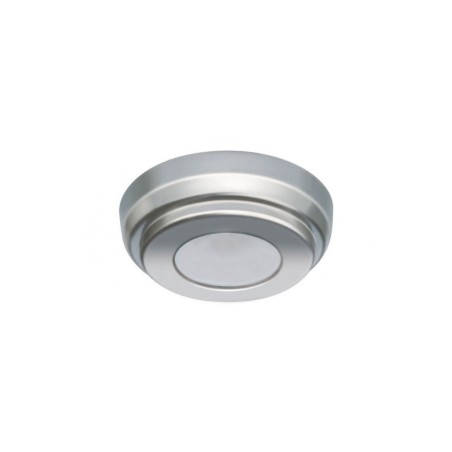

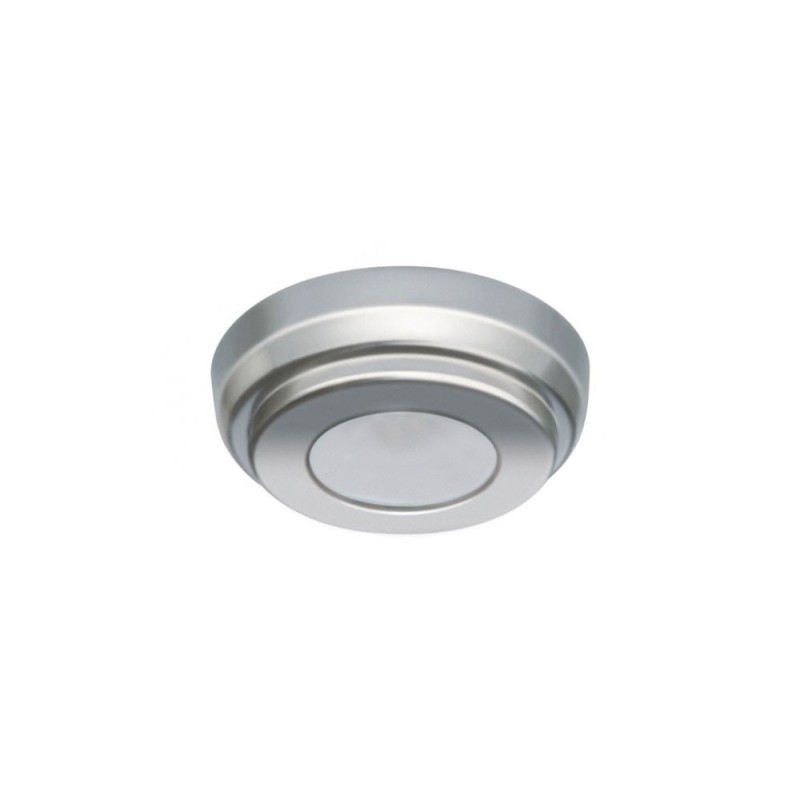

Quick TIM C 2W 10-30V Satin finish Stainless Steel LED Ceiling Light Ø90mm Q27002421BL

Quick TIM C 2W 10-30V LED Ceiling Light 105-115lm IP40 in satin finish AISI 316 stainless steel with satin finish lens
Different colours

Sourface mounting LED-light with circular frame, in 316 AISI stainless steel with satinised anti-shock material diffuser. Satin finish. Ideal for ceiling and wall installation. Light colours: warm white, natural white, blue, red, natural white/blue, warm white/blue, natural white/red, warm white/red.

Features:
Power type: Constant Voltage;
Supply: 10 ÷ 30 V;
Power consumption: 2 W;
Current consumption: 0.09 A @ 24V;
Average lifespan: 50.000 h;
Dimmable: Yes;
IP protection degree: 40;
Light colours: warm white, natural white, blue, red, natural white/blue, warm white/blue, natural white/red, warm white/red;
Finish: Satin;
Frame material: AISI 316 stainless steel;
Square frame: Ø 90 mm 3 9/16";
Thickness: 22 mm 55/64";
Mounting: screws.

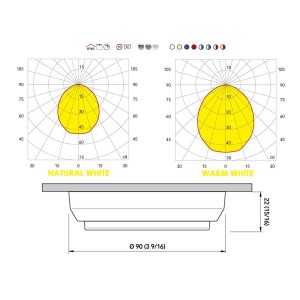

Photometric data:
Natural White 3800-4100K
- CRI: ≥ 80;
- Angle: 100°;
- Luminous flux: 115 lm;
- Illuminance - distance 1 m: Ø 2.43 m - 44.4 lux;
- Illuminance - distance 2 m: Ø 4.85 m - 11.1 lux;
- Illuminance - distance 3 m: Ø 7.28 m - 4.9 lux.
Warm White 2900-3100K
- CRI: ≥ 80;
- Angle: 100°;
- Light flow: 105 lm;
- Illuminance - distance 1 m: Ø 2.43 m - 40.8 lux;
- Illuminance - distance 2 m: Ø 4.85 m - 10.2 lux;
- Illuminance - distance 3 m: Ø 7.28 m - 4.5 lux.
Blue
- Angle: 100°.
Red
- Angle: 100°.
Natural White-Blue
- CRI: ≥ 80;
- Angle: 100°;
- Luminous flux: 115 lm.
Warm White-Blue
- CRI: ≥ 80;
- Angle: 100°;
- Luminous flux: 105 lm.
Natural White-Red
- CRI: ≥ 80;
- Angle: 100°;
- Luminous flux: 115 lm.
Warm White-Red
- CRI: ≥ 80;
- Angle: 100°;
- Luminous flux: 105 lm.

BI-COLOUR version: 2W white light + colored courtesy light.
LED Protection: Spike protected ± 500V.
Polarity sensitive: Yes.
Certifications: Class F, class III, CE.

Note: Please choose desired colour from the drop down menu.

27002421BCB Warm White-Blue
27002421BCR Warm White-Red
27002421BIC Warm White
27002421BIN Natural White
27002421BL Blue
27002421BNB Natural White-Blue
27002421BNR Natural White-Red
27002421RO Red
