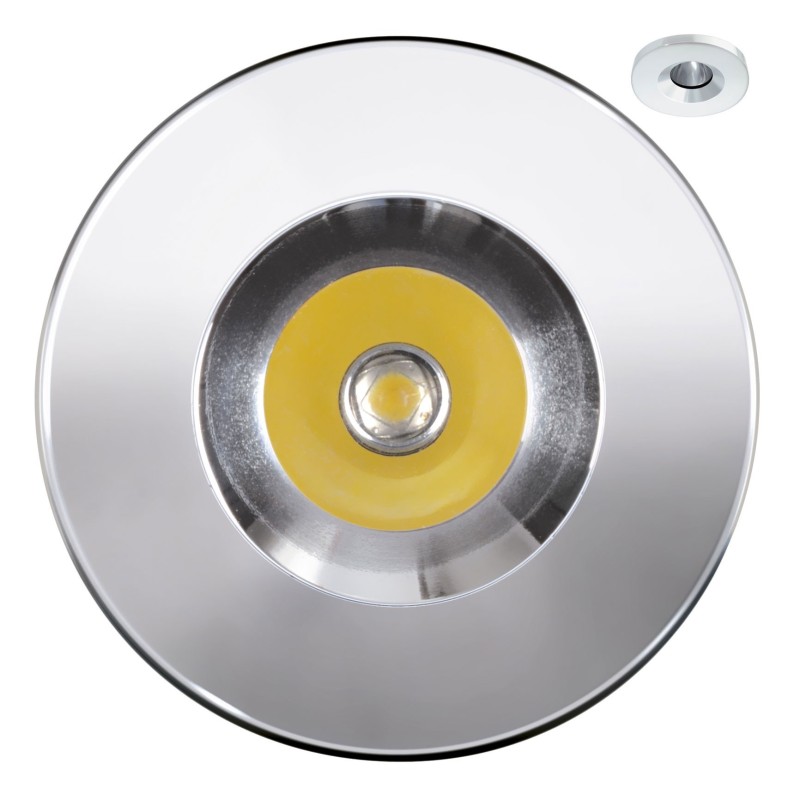

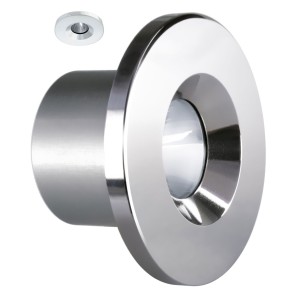

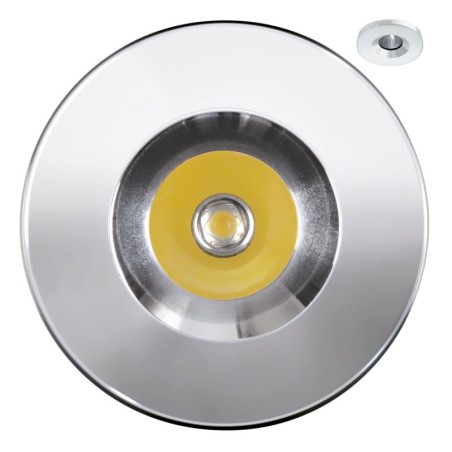

Quick JO 1.5W 10-30V White 9010 Stainless Steel LED Downlight 105-115lm Q25300002BIN

Quick 1.5W 10~30Vdc LED Downlight 105-115lm IP65 DL42 in White 9010 AISI 316 stainless steel

Modern LED downlight in 316 AISI stainless steel.
With IP65 rating, it is protected against humidity and water splashes, if installed properly.
Effective lighting and optimal chromatic yield.
AISI 316 round frame. White 9010 finish. Satin finish lens, daylight or warm white light.

Features:
Power type: Constant Voltage;
Supply: 10 ÷ 30 V;
Power consumption: 1.5 W;
Current consumption: 0.06 A @ 24V;
Average lifespan: 50.000 h;
Dimmable: Yes;
IP protection degree: 65;
Light colours: warm white, daylight;
Finish: White 9010;
Frame material: AISI 316 stainless steel;

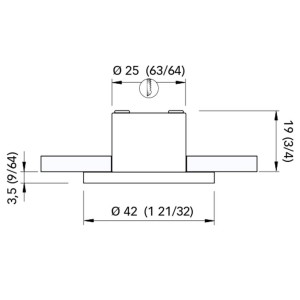

Square frame: Ø 42 mm 1 21/32";
Recess: 19 mm 3/4";
Hole: Ø 25 mm 63/64'';
Mounting: screws.
Photometric data:

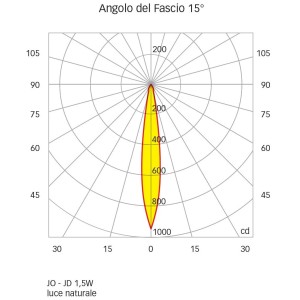

Natural White 3800-4100K
- CRI: ≥ 80;
- Angle: 15°;
- Luminous flux: 115 lm;
- Illuminance - distance 1 m: Ø 0.27 m - 988.0 lux;
- Illuminance - distance 2 m: Ø 0.53 m - 236.0 lux;
- Illuminance - distance 3 m: Ø 0.80 m - 104.4 lux.

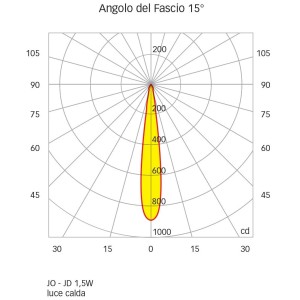

Warm White 2900-3100K
- CRI: ≥ 80;
- Angle: 15°;
- Luminous flux: 105 lm;
- Illuminance - distance 1 m: Ø 0.27 m - 890.0 lux;
- Illuminance - distance 2 m: Ø 0.53 m - 222.5 lux;
- Illuminance - distance 3 m: Ø 0.80 m - 98.9 lux.

LED Protection: Spike protected ± 500V.
Polarity sensitive: NO.
Certifications: Class F, class III, CE.

Note: Please choose the desired colour from the drop down menu.

25300002BIC Warm White
25300002BIN Daylight
