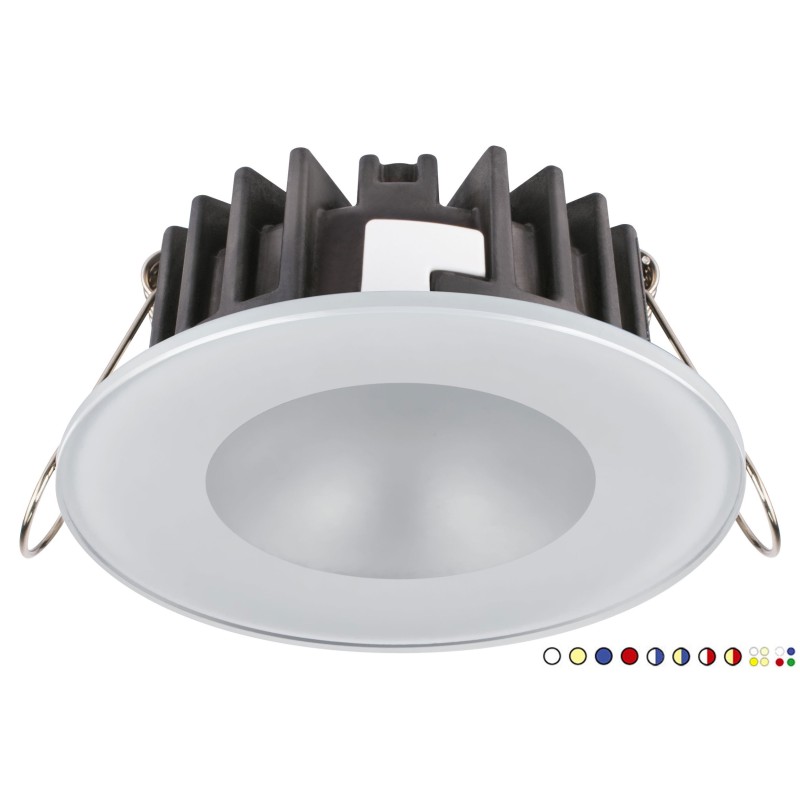

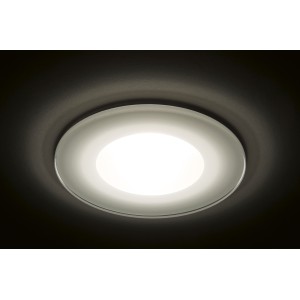

Quick APOLLO XP LP 6W 10-30V LED Downlight 295-410lm IP66 Glass 5.5mm Q25300009BIC

Quick APOLLO XP LP 6W 10~30Vdc LED downlight 295-410lm IP66 DL90 Ø90mm made with 5.5mm tempered glass

Modern series of Power LED downlights. The diffuser, made with tempered glass, gives the product a particularly refined look.
With IP66 rating, it is protected against humidity and water splashes, if installed properly.

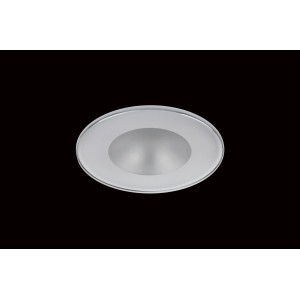

Round tempered glass frame - satin finish ens. Natural, warm, red, blue, white/blue, white/red, RGBW light.
The XP series is available in RGBW version and in TW (Tunable White) version, and it can be controlled with the QCC Systems by Quick.

Features:
Power type: Constant Voltage;
Light source: LED;
Supply: 10 ÷ 30 V;
Power consumption: 6 W;
Current consumption: 0.25 A @ 24V;
Average lifespan: 50.000 h;
Dimmable: Yes;
IP protection degree: 66;
Light colours: DAYLIGHT / WARM WHITE / BLU / RED / DAYLIGHT-BLUE / W.WHITE-BLUE / DAYLIGHT-RED / W.WHITE-RED / TUNABLE WHITE / RGBW;

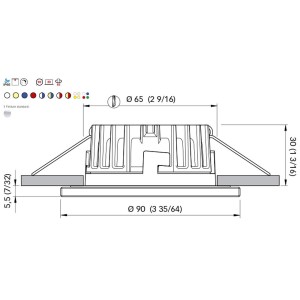

Frame material: 5.5 mm GLASS;
Square frame: Ø 90 3 9/16";
Recess: 30 mm 1 3/16";
Hole: Ø 65 mm 2 9/16";
Mounting: springs.
Photometric data:

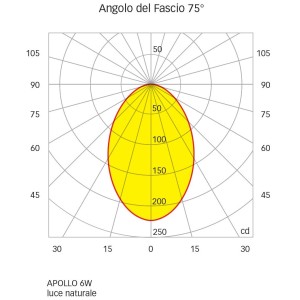

Natural White 3800-4100K
- CRI: ≥ 80;
- Angle: 75°;
- Luminous flux: 410 lm;
- Illuminance - distance 1 m: Ø 1.55 m - 223.8 lux;
- Illuminance - distance 2 m: Ø 3.09 m - 55.9 lux;
- Illuminance - distance 3 m: Ø 4.64 m - 24.9 lux.

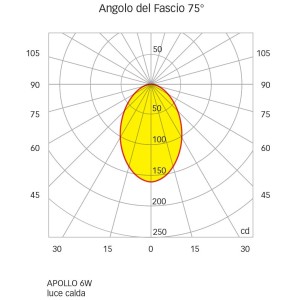

Warm White 2900-3100K
- CRI: ≥ 90;
- Angle: 75°;
- Luminous flux: 295 lm;
- Illuminance - distance 1 m: Ø 1.55 m - 159.8 lux;
- Illuminance - distance 2 m: Ø 3.09 m - 40 lux;
- Illuminance - distance 3 m: Ø 4.64 m - 17.8 lux.
BLUE
- Angle: 75°;
RED
- Angle: 75°;
NATURAL WHITE BLUE
- Angle: 75°;
WARM WHITE BLUE
- Angle: 75°;
NATURAL WHITE RED
- Angle: 75°;
WARM WHITE RED
- Angle: 75°;
RGBW
- Angle: 75°;
TUNABLE WHITE 2700-5700 °K
- Angle: 75°.
In BI-COLOUR version: 6W white light + courtesy light.
LED Protection: Spike protected ± 500V.
Polarity sensitive: Yes.
Certifications: class III, CE.

Note: Please choose the desired colour from the drop down menu.

25300009BIN NATURAL WHITE

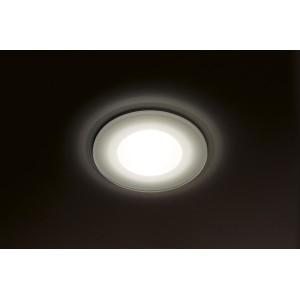

25300009BIC WARM WHITE

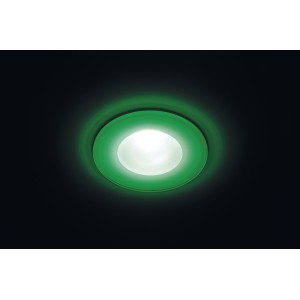

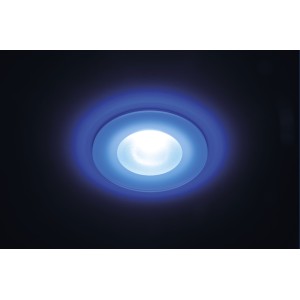

25300009BNB NATURAL WHITE BLUE
25300009BL BLUE
25300009RO RED

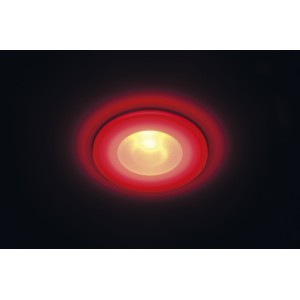

25300009BNR NATURAL WHITE RED
25300009BCB WARM WHITE BLUE
25300009BCR WARM WHITE RED
25300009RGBW RGBW
25300009BID DYNAMIC WHITE
