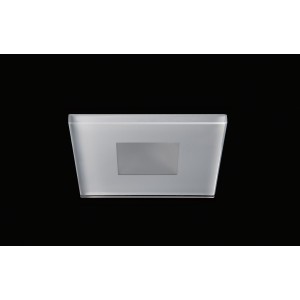

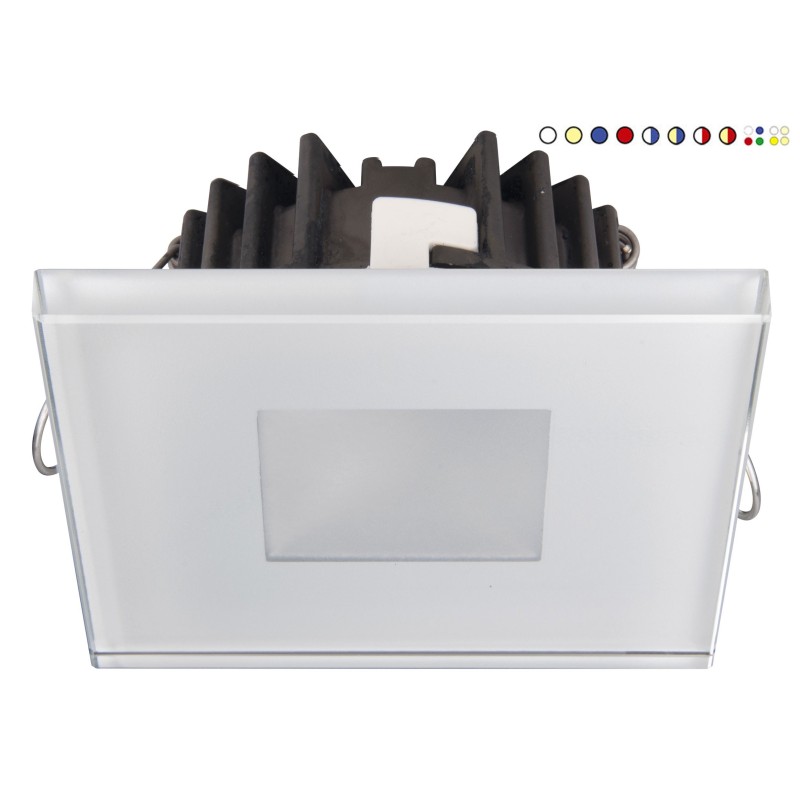

Quick DAPHNE XP HP 6W 10-30V LED Downlight 300-410lm IP65 9.5mm Glass Q25300022RO

Quick DAPHNE XP HP 6W 10~30Vdc LED downlight 300-410lm IP65 DL87 made with 9.5mm tempered glass

Modern series of Power LED downlights. The diffuser, made with tempered glass, gives the product a particularly refined look.
Square tempered glass frame - satin finish lens. Natural, warm, white/blue, white/red, tunable white, RGBW, blue and red lights.
The XP series is available in RGBW version and in TW (Tunable White) version, and it can be controlled with the QCC Systems by Quick.

Features:
Power type: Constant Voltage;
Light source: LED;
Supply: 10 ÷ 30 V;
Power consumption: 6 W;
Current consumption: 0.25 A @ 24V;
Average lifespan: 50.000 h;
Dimmable: Yes;
IP protection degree: 65;
Light colours: DAYLIGHT / WARM WHITE / DAYLIGHT-BLUE / W.WHITE-BLUE / DAYLIGHT-RED / W.WHITE-RED / TUNABLE WHITE / RGBW / BLUE / RED;

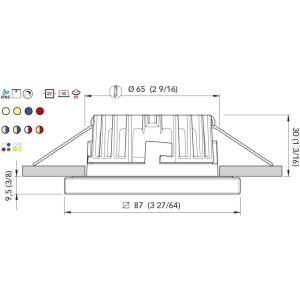

Frame material: 9.5 mm GLASS;
Square frame: Square 87 mm (3 27/64");
Recess: 30 mm (1 3/16");
Hole: Ø 65 mm (2 9/16");
Mounting: springs.

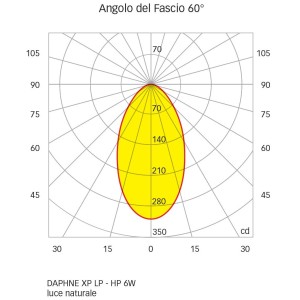

Photometric data:
Natural White 3800-4100K
- CRI: ≥ 80;
- Angle: 60°;
- Luminous flux: 410 lm;
- Illuminance - distance 1 m: Ø 1.14 m - 308.8 lux;
- Illuminance - distance 2 m: Ø 2.29 m - 77.2 lux;
- Illuminance - distance 3 m: Ø 3.43 m - 34.3 lux.
Warm White 2900-3100K
- CRI: ≥ 90;
- Angle: 60°;
- Luminous flux: 300 lm;
- Illuminance - distance 1 m: Ø 1.14 m - 225.1 lux;
- Illuminance - distance 2 m: Ø 2.29 m - 56.3 lux;
- Illuminance - distance 3 m: Ø 3.43 m - 25 lux.
BLUE
- Angle: 60°.
RED
- Angle: 60°.
NATURAL WHITE BLUE
- Angle: 60°.
WARM WHITE BLUE
- Angle: 60°.
NATURAL WHITE RED
- Angle: 60°.
WARM WHITE RED
- Angle: 60°.
RGBW
- Angle: 60°;
TUNABLE WHITE 2700-5700 °K
- Angle: 60°.
BI-COLOUR version: 6W white light +  courtesy light.
LED Protection: Spike protected ± 500V.
Polarity sensitive: Yes.
Certifications: class III, CE.

Note: Please choose the desired colour from the drop down menu.

25300022BIN NATURAL WHITE
25300022BIC WARM WHITE
25300022RGBW RGBW
25300022BID DYNAMIC WHITE
25300022BNB NATURAL WHITE BLUE
25300022BNR NATURAL WHITE RED
25300022BCB WARM WHITE BLUE
25300022BCR WARM WHITE RED
25300022BL BLUE
25300022RO RED
