Quick PALLADIO R70 55° 7W 595-640lm IP66 DL70 Anti-glare LED Downlight Q25300032BINS

Quick PALLADIO R70 55° 7W 20~30Vdc 595-640lm IP66 DL70 with Ø70mm AISI 316 round frame

Antiglare LED downlights for recessed applications with backlit option, in AISI 316 stainless steel. Dissipator made of anodised aluminium. Available with beam angle of 55°. AISI 316 round frame. Mirror polished, satin or White 9010 finish. Natural or warm light.

Features:
Power type: Constant Voltage;
Light source: LED;
Supply: 20 ÷ 30 V;
Power consumption: 7 W;
Current consumption: 0.29 A @ 24V;
Average lifetime: 50.000 h;
Dimmable: Yes;
IP protection degree: 66;
Frame material: AISI 316 S/STEEL;
Finishing: BLACK PVD / GOLD PVD;
Light colours: DAYLIGHT / WARM WHITE;

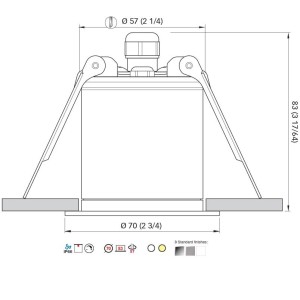

Square frame: Ø 70 mm (2 3/4");
Recess: 83 mm (3 17/64");
Hole: Ø 57 mm (2 1/4");
Mounting: springs.

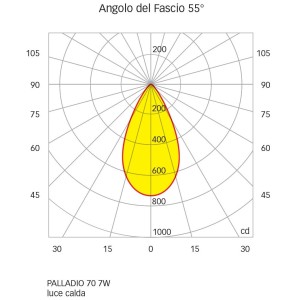

Photometric data:
Natural White 3800-4100K
- CRI: ≥ 95;
- Angle: 55°;
- Luminous flux: 640 lm;
- Illuminance - distance 1 m: Ø 1.03 m - 781 lux;
- Illuminance - distance 2 m: Ø 2.05 m - 195.2 lux;
- Illuminance - distance 3 m: Ø 3.08 m - 86.8 lux.
Warm White 2900-3100K
- CRI: ≥ 95;
- Angle: 55°;
- Luminous flux: 595 lm;
- Illuminance - distance 1 m: Ø 1.03 m - 726.5 lux;
- Illuminance - distance 2 m: Ø 2.05 m - 181.6 lux;
- Illuminance - distance 3 m: Ø 3.08 m - 80.7 lux.
LED protection: Spike protected ± 500V / Against inversion of polarity.
Certifications: class III, CE.

Note: Please choose the desired colour from the drop down menu.

25300032BINL MIRROR POLISHED NATURAL WHITE
25300032BICL MIRROR POLISHED WARM WHITE
25300032BINS SATIN NATURAL WHITE
25300032BICS SATIN WARM WHITE
25300032BINB WHITE 9010 NATURAL WHITE
25300032BICB WHITE 9010 WARM WHITE
