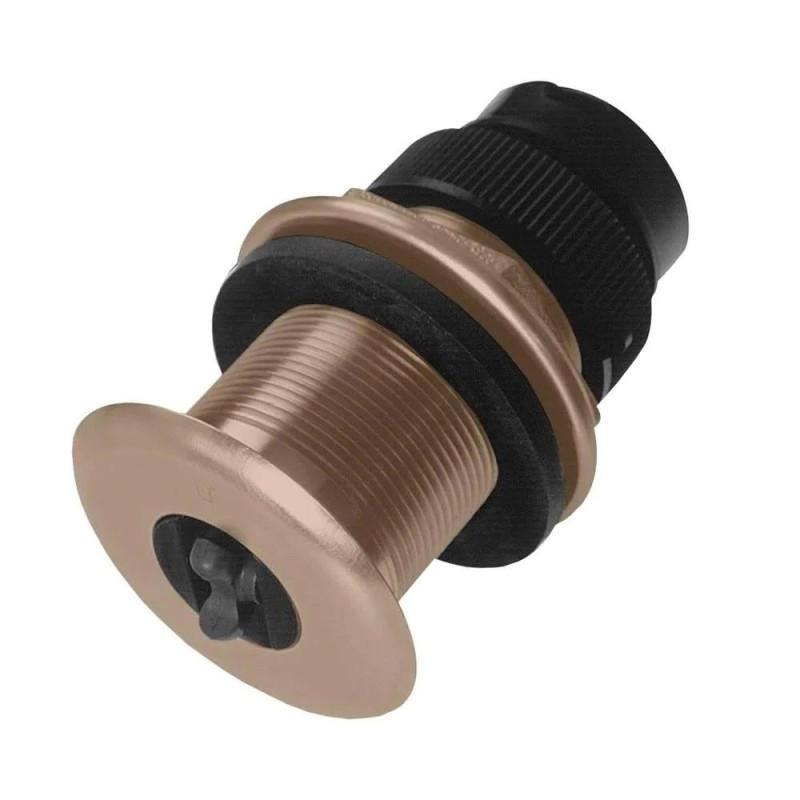

B&G 000-15736-001 IDST-810 Triducer Multisensor bronze TH 62800100

B&G 000-15736-001 IDST-810 TRIDUCER MULTISENSOR BRONZE TH

Combined Depth, Speed and Temperature sensor in one unit. Perfect for ease of installation as only one skin fitting is needed and straight forward connection with the 6m NMEA 2000® cable.
Patented, speed-signal-processing enhancements provide excellent paddlewheel accuracy below 5 knots (6 MPH) and smooth linear output at all vessel speeds. The transducer’s wide, fan-shaped, port-starboard beam is able to find bottom even when installed on steep deadrise hulls or heeling sailboats. You also get true water-temperature readings with the DST810’s reliable temperature sensor.

•    NMEA 2000
•    The all-in-one Smart Sensor: Depth, speed, and temperature in one compact housing
•    235 kHz frequency prevents mutual intrference with other echosounders on the vessel
 •   Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy

Specificatons:
Compliance: IERC60945.
Power Consumption, max.: 1.8W.
Supply Voltage: 9 - 16 VDC.
Dimensions (Diameter x H): 75 x 125mm (2.9 x 4.9").
Weight: 1.6kg (3.5lbs).
Frequencies: 235KHz.
Max Depth: Up to 100m (330').
