Victron Energy Orion-Tr Smart 12/12V 30A 360W DC-DC Charger non-isolated UF23150A

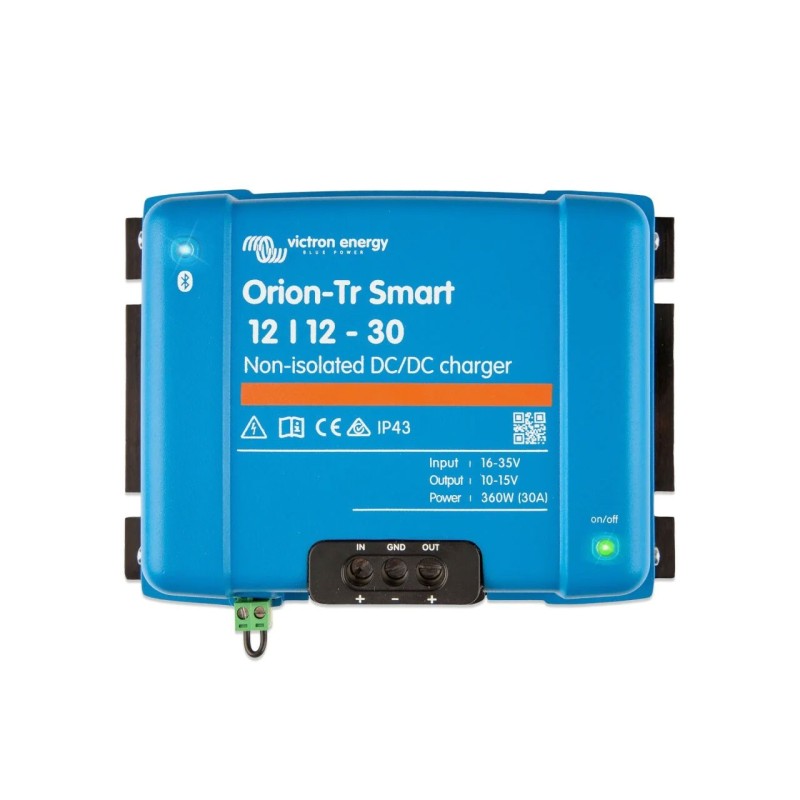

Victron Energy Orion-Tr Smart 12/12V 30A 360W DC-DC Charger non-isolated

The Orion-Tr Smart DC-DC charger non-isolated is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth. For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.
The Orion-Tr Smart charger is suitable for both lead acid and lithium batteries. This model is 360W and unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C.
Bluetooth Smart enabled
Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.
Fully programmable
- Battery charge algorithm (configurable) or fixed output.
- Smart alternator compatibility: engine running detection mechanism.
Adaptive 3-stage charge algorithm: bulk – absorption – float
• For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.
• For lithium batteries absorption time is fixed, default 2 hours.
• Alternatively, a fixed output voltage can be chosen.
Remote on-off
A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)

Features:
Model: Orion-Tr SMART 12/12-30;
Input voltage range(1): 10-17V;
Under-Voltage Shutdown: 7V;
Under voltage restart: 7.5V;
Rated output voltage: 12.2V;
Output voltage regulation range: 10-15V;
Output voltage tolerance: +/- 0.2V;
Output Noise: 2mV rms;
continuous current output at nominal output voltage and 40 ºC: 30 A;
Maximum output current (10 sec.) at nominal output voltage minus 20 %: 40 A;
Short circuit output current 60A;
Continuous power output at 25ºC: 430W;
Continuous output power at 40ºC: 360W;
Efficiency: 87%;
Without load current at the load input: < 80 mA;
Standby current < 1mA;
Operating temperature range: -20 to +55 ºC (3 % reduction per °C above 40 °C);
Humidity: Max. 95% non-condensing;
DC connection: Screw terminals;
Maximum cable cross section: 16 mm² (AWG6);
Weight: 1.8kg (3lbs);
Dimensions HxWxD: 130x186x70 mm (5.1 x 7.3 x 4.0 inches);
Protection category: IP43 (electronic components), IP22 (connection area);
Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5.
