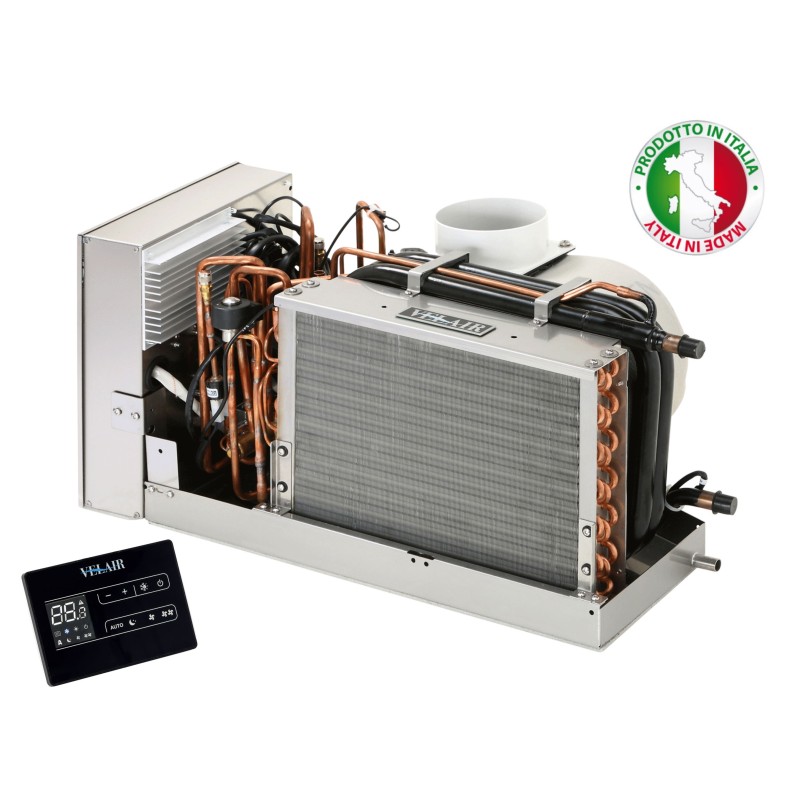

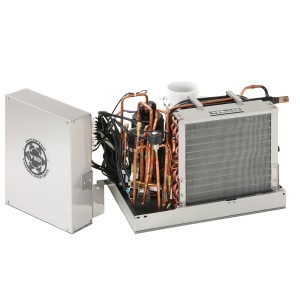

VELAIR Compact i16 VSD Smart Conditioner 230V 16000BTU/h UF24832JW

VELAIR Compact i16 Smart Marine Conditioner 230V 6500-16000BTU/h MADE IN ITALY

i16 VSD SMART INVERTER AIR CONDITIONING UNIT
VARIABLE SPEED DRIVE – (VSD) VSD inverter driven self-cotained air conditionning systems reverse cycle function.
Inverter air conditioning is able to vary its cooling power (between 4.000 and 10.000 BTU).

The Compact i16 VSD Smart self contained air conditioner offers the maximum technology available:
• Heat pump reverse cycle operation.
• 0,5°C temperature fluctuation.
• Compressor noise and vibrations almost zero.
• No current peaks during start-up.
• Overall reduction of electricity consumption.
• Constant Flow technology fan.
• Twin Rotary compressors.
• Constant temperature of the air flow.
• Increase in component lifetime.

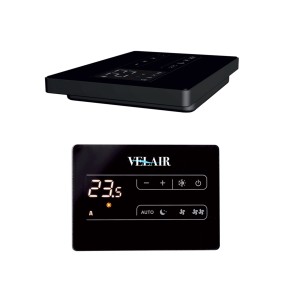

• New wall touch display.
• R32 refrigerant.
• Reverse blade brushless fan.
• Eelectronic expansion valve.
• WIFI: remote control through smartphone.
• Designed and manufactured in Italy.

Velair i16 VSD SMART Self-contained-VSD air conditioner provides the best of the existing technology: compressor with brushless DC motor and inverter that constantly controls speed and delivered cooling power (Variable Speed Drive).

VSD technology offers the following advantages
The inverter technology, already used in residential air-conditioning, offerts the following benefits in marine applications:
• No current peaks duting start-up.
• Highest energy efficiency: overall reduction of electrisity consumption (-40%).
• Perfectly running with small generators or battery powered (through inverter).
• Compressor noise and vibration almost zero.
• Constant temperature of the air flow.
• Wi-Fi connection for smartphones available through a dedicated app.
• Heat pump reverse cycle operation to heat the environment in winter.

The compressor continuously changes its running speed depending from ambient and set temperature. The compressor operates at maximum power to cool rapidly the cabins, but reaching the set temperature, it reduces the power and electric consumption. In this way it maintains the optimal comfort level with the minimum consumption. The inverter works between 20 and 100 Hz.
Self-contained-VSD VELAIR units meet EMC 2004/108/EC directives.

Ideal for cooling and heating medium and large sized boats.

Technical features:
Model: Compact i16 VSD Smart;
Code: 24832JW;
Power supply voltage: 1 PH 230V - 50/60 Hz;
Cooling capacity: 6,500 - 16,000 BTU/h;
Max current: 4.1 A @230V;
Max air flow: 550 m3/h;
Min. opening for return air grill: 600 cm2;
Min. opening for supply air grill (recommended): 300 cm2;
Min. seawater flow: 15 l/min;
Heat pump: Yes;
Maximum input power cooling: 0.93 Kw / 4.1 A;
Input power ECO mode: 0.31 Kw / 1.35 A;
Air outlets: 1 x Ø 125 mm - 1 x Ø 4.9”;
Refrigerant: R32;
Panel connection cable: 8 m;
Seawater temperature in winter mode: > +5°C/+41°F;
Seawater temperature in summer mode: < +40°C/+104°F;

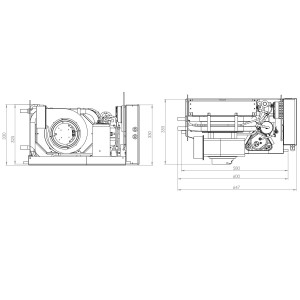

Size WxHxD: 650x330x355 mm (25.6x13x14");
Weight: 28 kg (61.7 lbs).

MADE IN ITALY
