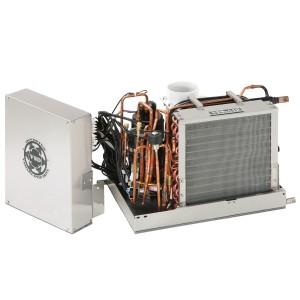

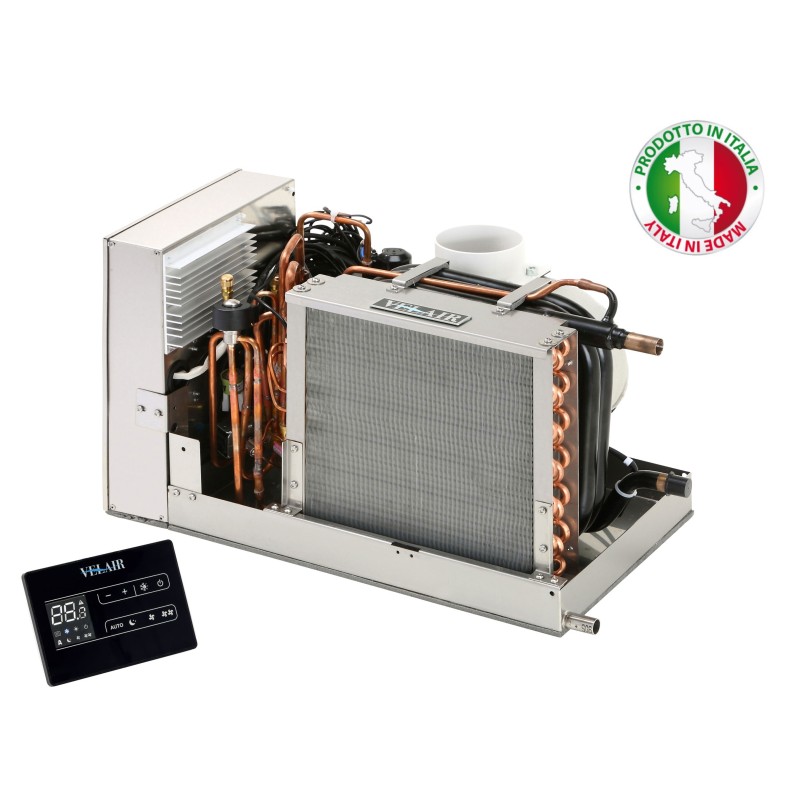

VELAIR Compact i10 VSD SMART Conditioner 230V 10000BTU/h UF24831GW

VELAIR Compact i10 VSD Smart Marine Conditioner 230V 4000-10000BTU/h MADE IN ITALY

i10 VSD SMART INVERTER AIR CONDITIONING UNIT
VARIABLE SPEED DRIVE – (VSD) VSD inverter driven self-cotained air conditionning systems reverse cycle function.
Inverter air conditioning is able to vary its cooling power (between 4.000 and 10.000 BTU).

The Compact i10 VSD Smart self contained air conditioner offers the maximum technology available:
• Heat pump reverse cycle operation.
• 0,5°C temperature fluctuation.
• Compressor noise and vibrations almost zero.
• No current peaks during start-up.
• Overall reduction of electricity consumption.
• Constant Flow technology fan.
• Twin Rotary compressors.
• Constant temperature of the air flow.
• Increase in component lifetime.

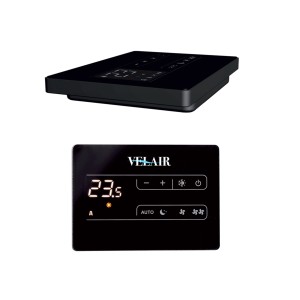

• New wall touch display.
• R32 refrigerant.
• Reverse blade brushless fan.
• Eelectronic expansion valve.
• WIFI: remote control via smartphone.
• Designed and manufactured in Italy.

Velair i10 VSD SMART Self-contained-VSD air conditioner provides the best of the existing technology: compressor with brushless DC motor and inverter that constantly controls speed and delivered cooling power (Variable Speed Drive).

VSD technology offers the following advantages
The inverter technology, already used in residential air-conditioning, offerts the following benefits in marine applications:
• No current peaks duting start-up.
• Highest energy efficiency: overall reduction of electrisity consumption (-40%).
• Perfectly running with small generators or battery powered (through inverter).
• Compressor noise and vibration almost zero.
• Constant temperature of the air flow.
• Wi-Fi connection for smartphones available through a dedicated app.
• Heat pump reverse cycle operation to heat the environment in winter.

The compressor continuously changes its running speed depending from ambient and set temperature. The compressor operates at maximum power to cool rapidly the cabins, but reaching the set temperature, it reduces the power and electric consumption. In this way it maintains the optimal comfort level with the minimum consumption. The inverter works between 20 and 100 Hz.
Self-contained-VSD VELAIR units meet EMC 2004/108/EC directives.
Ideal for cooling and heating medium and large sized boats.

Technical features:
Model: Compact i10 VSD Smart;
Code: 24831GW;
Power supply voltage: 1 PH 230V - 50/60 Hz;
Cooling capacity: 4,000 - 10,000 BTU/h;
Max current: 2.9 A @230V;
Protection: 10A;
Max air flow: 400 m3/h;
Flange diameter: 2x125 mm;
Min. opening for return air grill: 400 cm2;
Min. opening for supply air grill (recommended): 250 cm2;
Min. seawater flow: 12 l/min;
Heat pump: Yes;
Maximum input power cooling: 0.64 Kw / 2.9 A;
Input power ECO mode: 0.21 Kw / 0.95 A;
Air outlets: 1 x Ø 100 mm - 1 x Ø 3.9”;
Refrigerant: R32;
Minimum cable section: 2.5 mm2 (230V);
Panel connection cable: 8 m;
Seawater temperature in winter mode: > +5°C/+41°F;
Seawater temperature in summer mode: < +40°C/+104°F;

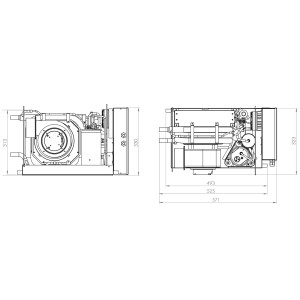

Size WxHxD: 571x320x323 mm (22.5x12.6x12.7");
Weight: 25 kg (55.1 lbs).
