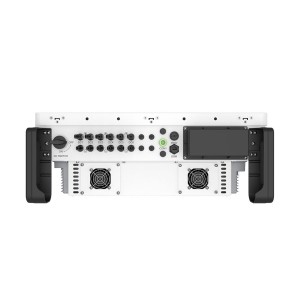

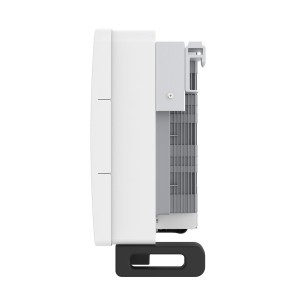

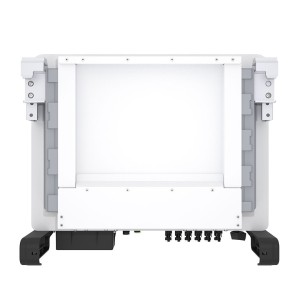

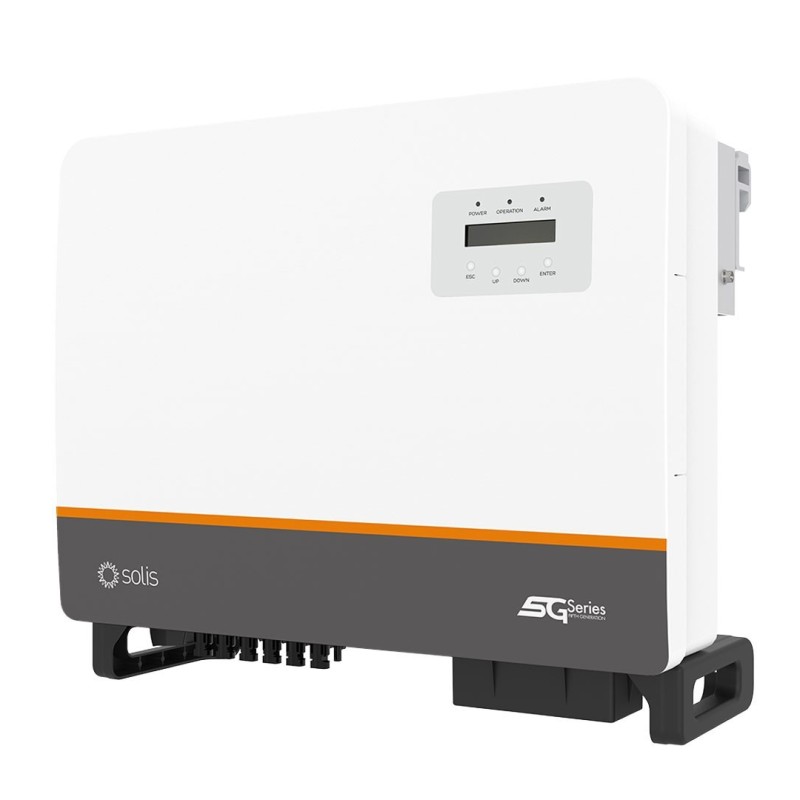

Solis S5-GC40K Three-phase inverter 40kW

Solis S5-GC40K Three-phase inverter 40kW

The Solis S5-GC40K 40kW three-phase inverter is designed for residential PV and C&I systems. The 3/4 MPPT design can effectively reduce string mismatch, and the maximum input current per string is 16A, which is compatible with high-efficiency modules and double-sided modules. The protective level is increased to IP66. Built-in AFCI function can proactively reduce fire risk.

✓ Maximum efficiency 98.7%
✓ IP66 String current up to 16A
✓ Supports RS485, Wi-Fi, GPRS > 150% DC/AC ratio
✓ Allows the use of aluminum cables
✓ Support output power control
✓ Intelligent cooling with redundant fans
✓ Wide operating range and low starting voltage
✓ AFCI proactively reduces fire risk
✓ 3 or 4 MPPT design to support projects with different orientations
✓ Integrated PID reset for better module performance (optional)
✓ Globally recognized branded components for increased durability
✓ Intelligent string-level monitoring, intelligent I-V curve scanning
✓ Access SolisCloud with a simple scan, supports remote checks and upgrades
✓ Supports GPRS/WiFi communication for less wiring and reduced installation costs
✓ Supports new high power modules allowing reduction of installation costs

Technical specifications
DC input
Maximum recommended photovoltaic power: 60 kW
Absolute maximum voltage: 1100 V
Rated Voltage: 600V
Starting Voltage: 180V
MPPT voltage range: 200-1000V
Maximum input current: 4*32A
Maximum short circuit current: 4*50A
MPPT number: 4
Maximum number of strings: 8
AC output
Rated Output Power: 40kW
Maximum apparent output power: 44 kVA
Maximum output power: 44 kW
Rated mains voltage: 3/N/PE, 220V/380V, 230V/400V
Rated Grid Frequency: 50-60Hz
Rated Mains Output Current: 60.8A/57.7A
Maximum output current: 66.9A
Power Factor: >0.99 (0.8 leading - 0.8 lagging)
THDi: <3%
Efficiency
Maximum efficiency: 98.7%
EU efficiency: 98.3%
Protection
DC Reverse Polarity Protection: Yes
Short Circuit Protection: Yes
Output Overcurrent Protection: Yes
Overload protection: DC Type II / AC Type II
Network Monitoring: Yes
Anti-island system: Yes
Temperature Protection: Yes
String Monitoring: Yes
I/V curve scan: Yes
Built-in PID recovery: Optional
Integrated DC switch: Yes
Integrated AC switch: Optional
Integrated AFCI (DC Arc Fault Circuit Protection): Yes (Activation Required)
General data
Dimensions (WxHxD): 647x629x252 mm
Weight: 37 kg
Topology: Without transformer
Self-consumption (night) (night): <1 W
Operating environment temperature range: -25 ~ +60°C
Relative Humidity: 0-100%
Degree of protection: IP66
Cooling method: Intelligent cooling with redundant fans
Maximum operating altitude: 4000m
Safety/EMC standards: IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
Grid connection standard: G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0 -21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530
Characteristics
DC connection: MC4 connector
AC connection: OT terminals (maximum 240mm²)
Screen: LCD
Communication: RS485, Optional: Wi-Fi, GPRS
