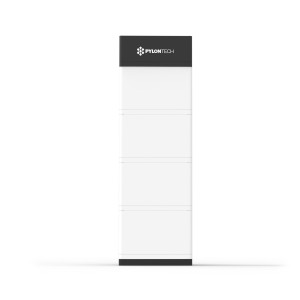

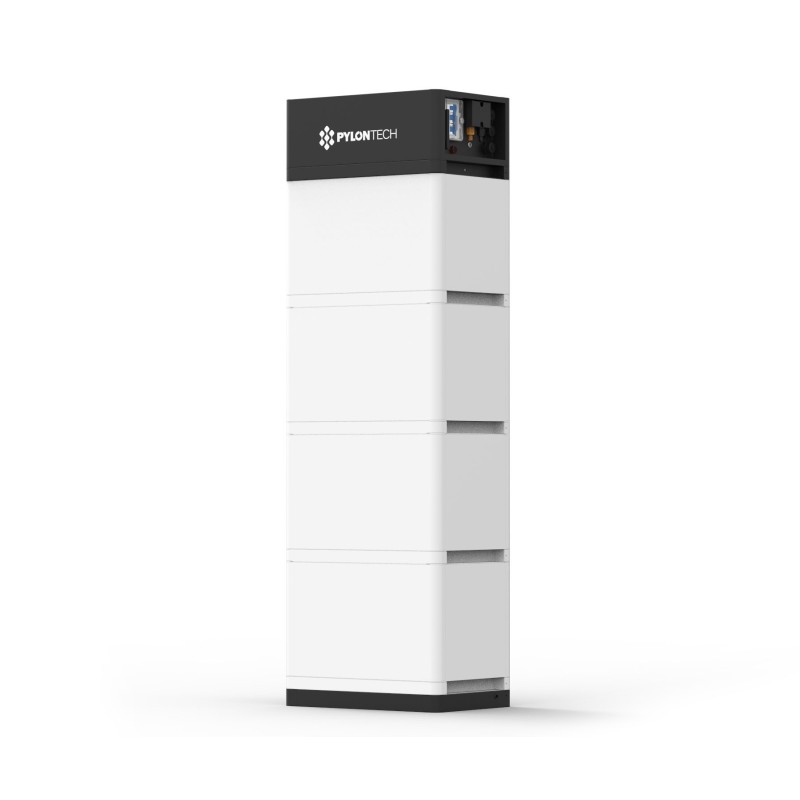

Pylontech Force L2 14.21 48V 14kWh Lithium-Ion battery

Pylontech Force L2 14.21 48V 14kWh Lithium-Ion battery

Pylontech Force L2 14.21 is the latest version of HESS (home energy storage system), inherit with our modular design concept, combined with easy installation, simple connectors and outdoor compatibility, the furniture type of equipment is your ideal place to hold your valuable force – the electricity.
Advantages
• Flexibility Module Design
• LFP cell inside enable longest life and highest safety
• Secured by self-developed cells, modules and BMS
• Proven BMS with widest compatiblities with inverters
• Reliable Performace
• 95% DOD
• Be suitable for indoor/otdoor installation
• Quick connector to save installation time

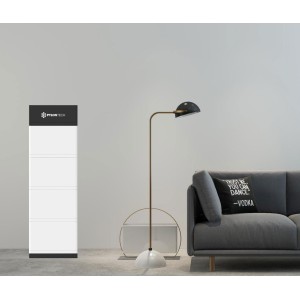

• Furniture like design suits both indoor and outdoor installation

Technical Specification
Battery Storage System: Force L2
Battery Module: 4
Battery System Capacity: 14.21 kWh
Nominal Voltage: 48 V
Voltage Range: 44.5~54 V
Dimension (WxDxH): 400x300x1410 mm
Weight: 155 kg
Depth of Discharge 90%
Charge/Discharge Current Recommend: 60 A
Charge/Discharge Current Continuous: 100 A
Charge/Discharge Current Peak@15s: 105 A
Communication: CAN, RS485
Protection Class: IP55
Working Temperature: 0~50 °C
Storage Temperature: -20~60 °C
Humidity 5%-95%
Altitude (M): ＜2000
Design Life: 15+ Years (25℃/°F）
Cycle Life ＞6000，25℃
Authentication Level: VDE2510-50/IEC62619/IEC62477/IEC62040/CE/UN38.3
