Photovoltaic Kit 2.8kW single-phase with Solis S6-GR1P3K-M 3kW Inverter for grid connection

Single-phase 2.8kW Kit with Solis S6-GR1P3K-M 3kW Mini Inverter

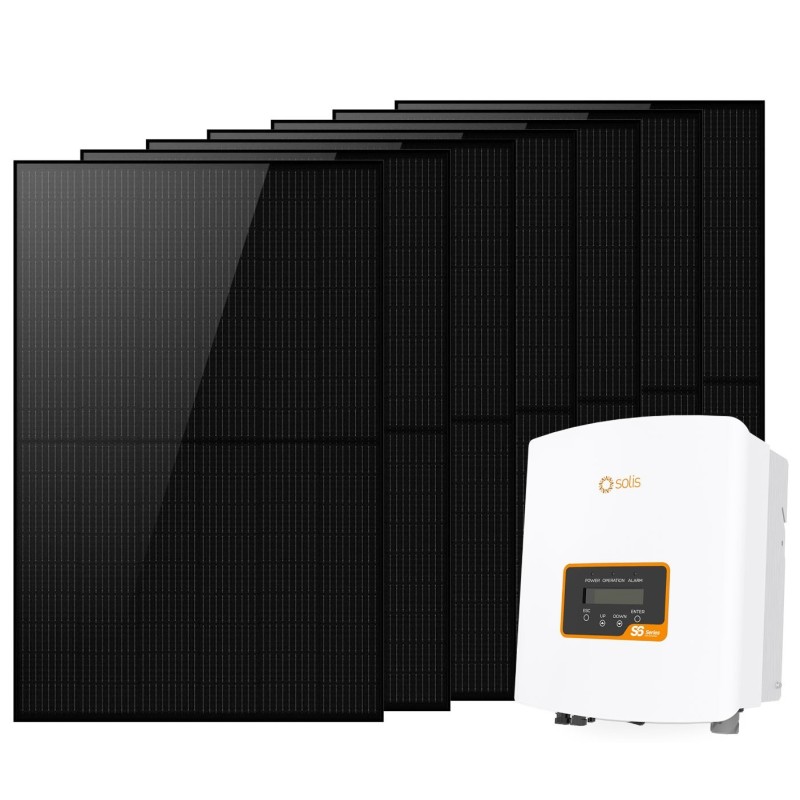

Solar kit consisting of 7 monocrystalline silicon photovoltaic panels with 400W peak power and the string inverter of the Solis-Mini S6-GR1P3KM Single phase 3kW which allows you to produce electricity for free thanks to self-consumption and recharge any battery if connected.
This kit allows us to exploit photovoltaic energy to provide the necessary electricity. The inverter can directly supply the energy generated by the photovoltaic panels to the electrical system of your home or business to meet the energy needs. Also, if demand is high, the electricity grid will be combined with PV generation. At night, when there is no photovoltaic energy production, the home, industry or company is powered through the electricity distribution network. Grid-connected photovoltaic systems are the best-paying because they allow you to save on your electricity bill with a low investment.

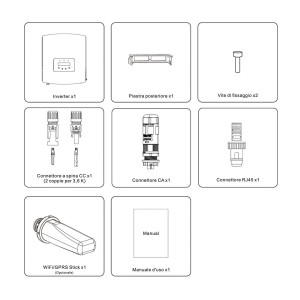

The kit is made by:
- n°7 400W monocrystalline photovoltaic modules #N52330050286;
- n°1 String inverter of the Solis-Mini S6-GR1P3KM Single phase 3kW #S6GR1P3KM.

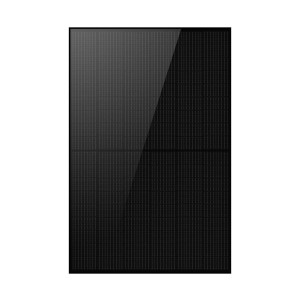

n°7 Monocrystalline 400W photovoltaic solar panels
Redefined the high-efficiency module series by integrating 182mm silicon wafers with multi-busbar and half-cut cell technologies. The half-cut cells with additional multibusbar technology increase the efficiency of the cell. In this way they achieve another 2 - 2.5% more performance and can therefore offer maximum reliability. The appealing full black design completes the solar module. Solar modules are certified for use under wind and snow loads of 2400-5400 Pa. The module has a 3.2mm thick, hardened front glass with high light transmission. The frame is anodized aluminum alloy.
• 1500V Higher system voltages can effectively reduce BOS
• Lower operating temperature and temperature perature coefficient,obtain higher profit
• Significantly reduce the effect of hot spot temperature and shadow shielding
• Half-cut design for better mechanical load performance
• Ease of use in more demanding environments

Multi-busbar technology
Busbars are located on each PV module. These are the busbars that are permanently printed on each power cell. They absorb the direct current generated and direct it to the busbars. By using more busbars, Longi has reduced shading, shortened transmission paths and lowered resistance in the modules.

ELECTRICAL PARAMETERS
Max. Power Output Pmax: 400 Wp;
Power Tolerance: 0~+3 %;
Max. Power Voltage Vmp: 30,42 V;
Max. Power Current Imp: 13,15 A;
Open Circuit Voltage Voc: 36,98 V;
Short Circuit Current lsc: 13,78 A;
Module Efficiency: 20,48%
ELECTRICAL PARAMETERS
Max. Power Output Pmax: 298 W;
Max. Power Voltage Vmp: 28,42 V;
Max. Power Current Imp: 10,47 A;
Open Circuit Voltage Voc: 34,9 V;
Short Circuit Current lsc: 11,13 A
TEMPERATURE COEFFICIENT
Temperature Coefficients of Pmax: -0,32%/°C;
Temperature Coefficients of Voc: -0,26%/°C;
Temperature Coefficients of lsc: +0,054%/°C

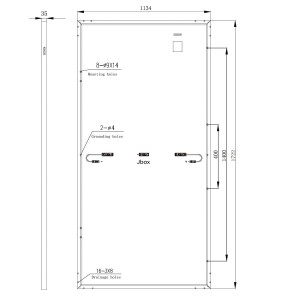

MECHANICAL PARAMETERS
Cell Type: Mono 182x91 mm;
Number of Cells: 108 pcs (2x(6x9));
Dimensions ( L*W*H ): 1722x1134x35 mm;
Weight: 22 kg;
Frame: Anodized Aluminum;
Junction Box: IP68;
Cable, Length: 4 mmq/350 mm
OPERATING CONDITION
Maximum System Voltage: 1500 V (DC);
Operating Temperature: -40~+85;
Max. Wind Load / Snow Load: 2400/5400;
Max. Over Current: 25A;
Application Class: Class A;
Fire Rating: Class C;
NMOT: 42±3 °C.

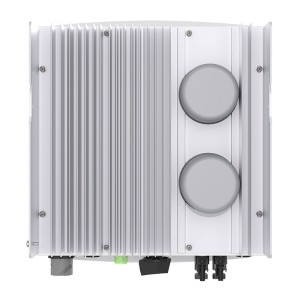

n°1 String inverter of the Solis-Mini S6-GR1P3KM Single phase 3kW
Single-phase Solis-Mini string inverter series are the leaders of green energy in small residential and commercial rooftops, and adopt full digital control technology, advanced topological structure and accurate MPPT algorithm, whose efficiency superior to the paramount conversion of the industry which is up to 97.3% at most. Meanwhile they adopt multiple protection functions, and extremely high switching frequency technology.

✓ Maximum efficiency 97.3%
✓ String current up to 14A
✓ Precise MPPT algorithm
✓ Compact and lightweight
✓ Integrated Export Power Management
✓ Integrated AFCI (Arc Protection)
✓ Simple and flexible network connection
✓ Ultra high frequency switching technology
✓ Wide operating range and low starting voltage
Export Energy Manager
HF SWITCH High switching frequency
WiFi/GPRS Real-time tracking
AFCI PDC arc fault circuit protection
App Store IOS/Android

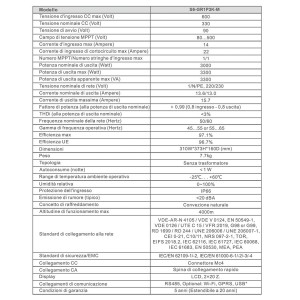

Technical specifications
DC input
Maximum recommended photovoltaic power: 4.5 kW
Absolute maximum voltage: 600 V
Rated Voltage: 330V
Starting Voltage: 90V
MPPT Voltage Range: 80-500V
Maximum input current: 14A
Maximum short circuit current: 22A
Maximum MPPT number/Number of strings: 1/1
AC output
Rated Output Power: 3kW
Maximum apparent output power: 3.3 kVA
Maximum output power: 3.3 kW
Rated mains voltage: 1/N/PE, 220V / 230V
Rated Grid Frequency: 50-60Hz
Rated Mains Output Current: 11.4A / 10.9A
Maximum output current: 13A
Power Factor: >0.99 (0.8 leading - 0.8 lagging)
THDi: <3%
Efficiency
Maximum efficiency: 97.1%
EU efficiency: 96.7%
Protection
DC Reverse Polarity Protection: Yes
Short Circuit Protection: Yes
Output Overcurrent Protection: Yes
Overload Protection: Yes
Network Monitoring: Yes
Anti-island system: Yes
Temperature Protection: Yes
Integrated DC switch: Optional
Integrated AFCI (DC Arc Fault Circuit Protection): Yes (Activation Required)
General data
Dimensions (WxHxD): 310x373x160 mm
Weight: 7.7kg
Topology: Without transformer
Self-consumption (night) (night): <1 W
Operating environment temperature range: -25 ~ +60°C
Relative Humidity: 0-100%
Degree of protection: IP66
Cooling method: Natural convection
Maximum operating altitude: 4000m
Safety/EMC standards: IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
Grid connection standard: G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA

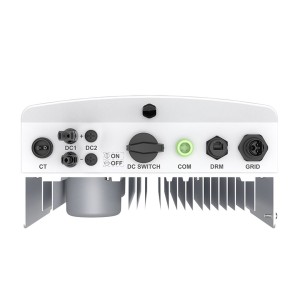

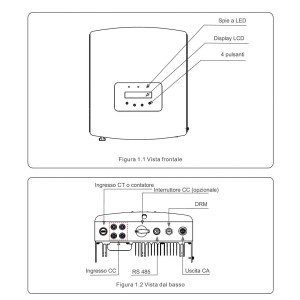

Characteristics
DC connection: MC4 connector
AC connection: Quick connect plug
Screen: LCD
Communication: RS485, Optional: Wi-Fi, GPRS

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
