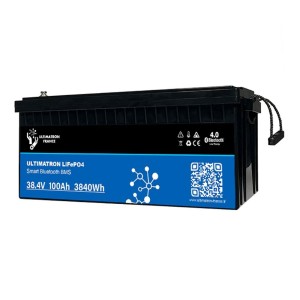

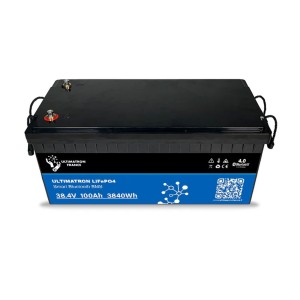

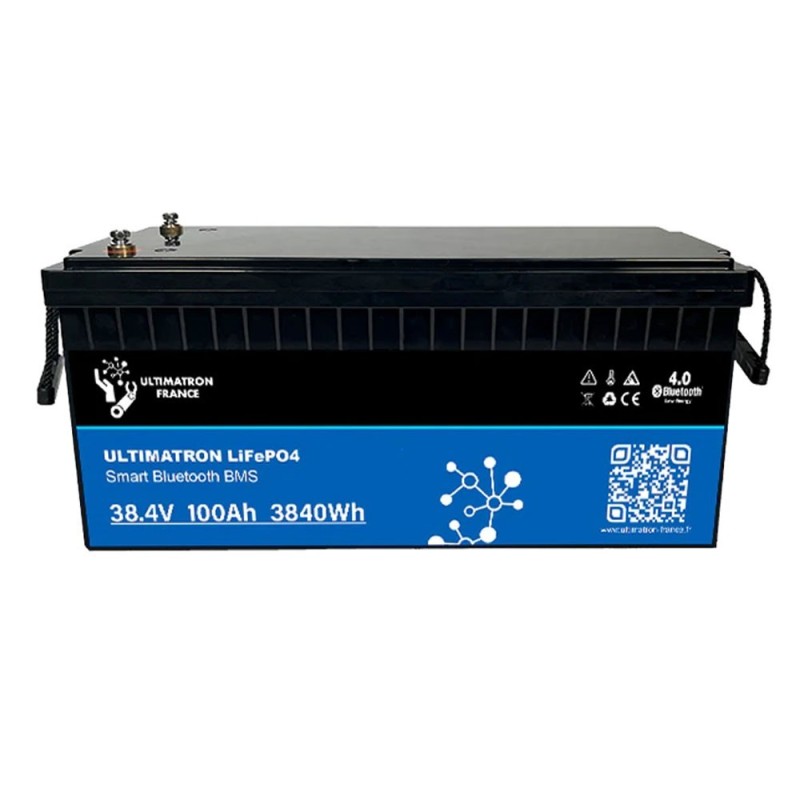

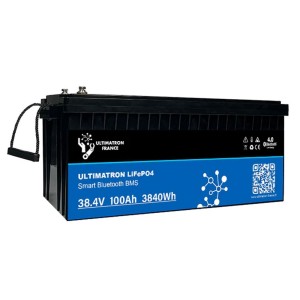

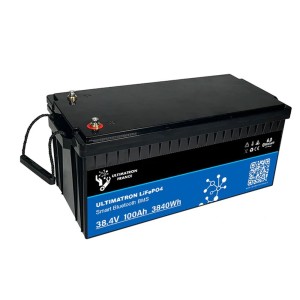

Ultimatron LiFePO4 UBL-36-100 36V 100A Battery BMS Smart Bluetooth ULUBL36100

Ultimatron LiFePO4 36V 100Ah UBL-36-100 Lithium Battery BMS Smart with Bluetooth

Direct shipping from the Europe Warehouse, delivery in about 10-15 days throughout Europe.

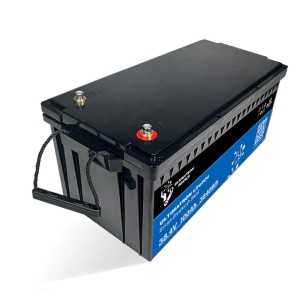

Ultimatron LiFePO4 UBL-36-100 battery is definitely the best alternative to 38.4V lead batteries because they have a stable supply voltage even under heavy load. Offering the advantages of lithium: light weight, stable voltage, high number of cycles. It can directly store more than 96% of the energy supplied. High performance even in extreme conditions. Deep and constant discharge and refill efficiency.

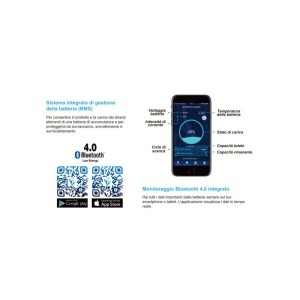

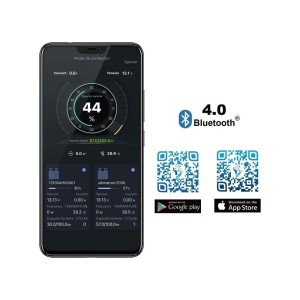

Furthermore, thanks to the BMS (Battery Management System) Smart integrated with Bluetooth 4.0 connection, it is possible to monitor the values in real time and the status of the battery directly from your smartphone thanks to the convenient dedicated App, for smartphone or tablet.
The fields of application of lithium batteries are diverse, especially for stationary or mobile use. In particular, mobile homes, solar boats, electric boats, electric scooters, golf cars or even electromobiles / wheelchairs and cleaning machines are increasingly equipped.

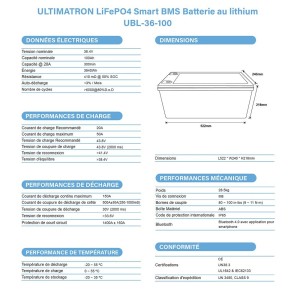

Technical features:
- Model: UBL-36-100;
- Battery type: Lithium Iron Phosphate LiFePO4;
- Rated voltage: 38.4 V;
- Nominal Capacity: 100 Ah;
- Nominal energy: 3840 Wh;
- Resistance: ≤10 mΩ @ 50% SOC;
- Self-discharge: <3% / month;
- Number of cycles: over 6000 with 80% DOD discharge;
- Recommended charging current: 20 A;
- Maximum charging current: 50 A;
- Recommended charging voltage: 43.8 V;
- Switch-off voltage of the charge: 43.8 V (2000 ms);
- Switch voltage back on: ≤41.4 V;
- Equalizing voltage: >38.4 V;
- Maximum continuous discharge current: 150 A;
- Discharge peak current: 500 A ± 60 A (250-1000 ms);
- Discharge cut-off voltage: 30 V (2000 ms);
- Reconnection voltage: >33.6 V;
- Short-circuit protection: 1400 A ± 160 A (200-800 μs);
- BMS: integrated with Bluetooth 4.0;
- Degree of protection: IP65;

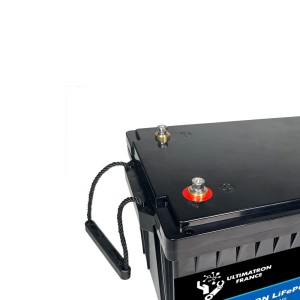

- Terminal type: M8;
- Dimensions: 522x240xh221 mm;
- Weight: 31.25 kg;
- Warranty: 5 years.

Conditions for series and parallel connection
The batteries must be of the same batch and of the same model. Before connecting the batteries in series or parallel, please charge them fully.

ATTENTION:
• Ultimatron LiFePO4 batteries can be connected both in series and in parallel in the maximum number of 4 units.
• Ultimatron batteries cannot be used as engine starter batteries.
If charged by alternators (campers and other vehicles) it is advisable to install a lithium battery charger.
• The BMS does not cut currents above 50A but the battery wears out above this value first.
