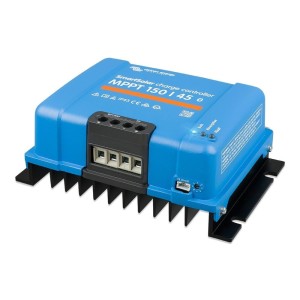

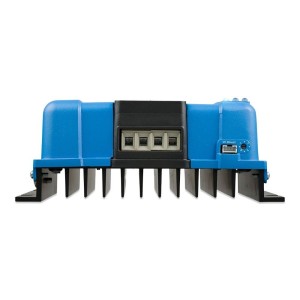

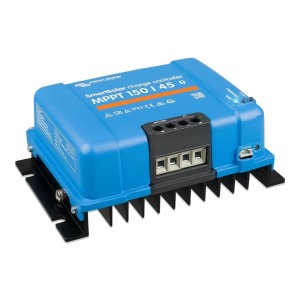

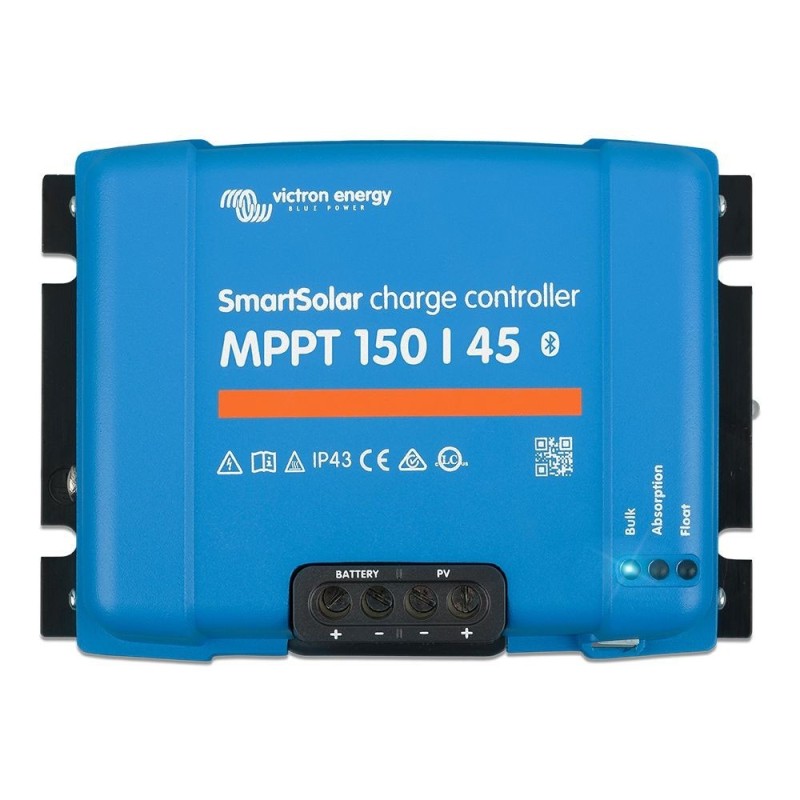

Victron SmartSolar MPPT 150/45 12/24/48V 45A Charge Controller with Bluetooth

Victron Energy SmartSolar MPPT 150/45 12/24/48V 45A Solar Charge Controller

The Smartsolar mppt 150/45 from victron Energy, belongs to the latest generation of smart solar controllers from the Dutch premium manufacturer and processes a whopping 45A of solar power and can work flexibly with 12/24/36/48V batteries. Ultra-fast power tracking and automatic power point detection in case of partial shading are just 2 of the many highlights of this new class of devices. The SmartSolar 150/45 is also available as a version with MC4 connectors on the solar side of the charge controller instead of screw terminals. In addition, this model is capable of parallel operation with other controllers of the same type.
Compared to the BlueSolar series, the Bluetooth module is already integrated in the controller of the Smartsolar family, which makes the smart dongle superfluous for this device. Also new is the optionally available lcd display, which can be simply plugged onto the SmartSolar 150/45 as required. The display then provides all the important information about the controller. Optional, the MPPT-WireBox-L Tr from Victron Energy is the ideal complement for your SmartSolar charge controller. It securely covers the cable inputs or connection terminals of the controller, protecting them from external influences and contact.

Key product features of the SmartSolar 150/45 45A 12V 24V 36V 48V MPPT
•    Latest generation ultra-fast mpp tracker ensures best possible yield even in overcast conditions
•    Rated charge current 45A, 150V maximum pv open circuit voltage
•    Maximum pv power: 12V 650W / 24V 1300W / 48V 2600W
•    Automatic detection of mpp voltage in case of partial shading provides further yield improvement compared to "simple" mppt charge controller
•    With optional lcd display
•    Permanently integrated Bluetooth module for app-supported analysis and configuration of the controller (via free victron app on compatible devices)
•    Optional lcd display available

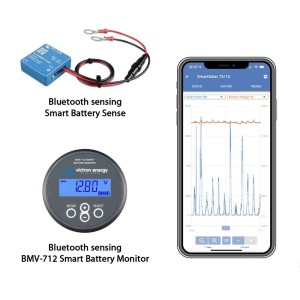

•    Integrated vE.Direct data communication port for connection to the gx Color Control Panel or a Smart BMv battery monitor for communication with additional devices
•    High maximum efficiency of 98
•    Parallel operation with other 150/45 controllers possible
•    Adjustable constant charging voltage
•    Adjustable float charge voltage
•    Suitable for all agm, gel, lead-acid calcium-calcium and lithium batteries
•    Fully programmable charging algorithms which are later activated and switched manually via a switch on the case
•    Integrated protection against battery polarity reversal
•    Multi-stage and adaptive charging algorithm
•    Remote switching on and off possible via 2-pin plug
•    Protection class ip 43 for the electronic components and protection class ip 22 for the connection area of the controller
•    Integrated temperature sensor balances maintenance and constant charging voltage according to temperature
•    Day/night time control and light dimming option

Smart data communication via vE.Direct and lightning-fast Bluetooth

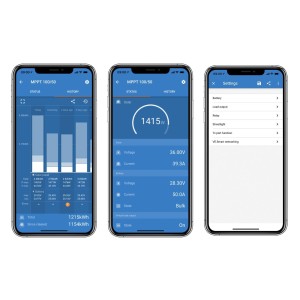

Modern Apple and Android smartphones, tablets, Macbooks and other devices can be connected thanks to the permanently integrated Bluetooth module and the free victron Connect app. The app can then be used to configure many important functions of the mppt 150/45 SmartSolar controller. Of course, it also provides all important parameters such as the current solar yield in real time.

Automatic detection of the maximum power point in case of partial shading
In case of partial shading, there may be two or more maximum power points (mppts) on the current-voltage curve. Conventional mppts tend to settle on a local mpp. However, this may not be the optimal mpp. The innovative algorithm of the SmartSolar 150/45 will always maximize the energy yield by adjusting to the optimal mpp.

Latest generation high-speed mpp tracker
Especially in overcast conditions, when light intensity is constantly changing, an extremely fast mppt controller improves energy yield by up to 30% compared to PwM charge controllers and by up to 10% compared to slower mppt controllers.

Extensive electronic protection
-    Protection against reverse battery connection
-    Pv reverse current lock
-    Protection against overheating of the device
-    Protection against short circuits
-    Protection against reverse polarity Pv connection

the vE.Direct data communication port
vE.Direct in text- mode transmits all important parameters to other devices coupled to the charge controller every second, offering the possibility of communication with additional devices system panel gx Color Control. The vE.Direct connection is intended for products where full Canbus integration (vE-Direct) would be too costly. More information about vE.Direct can be found in our victron Energy brand store.

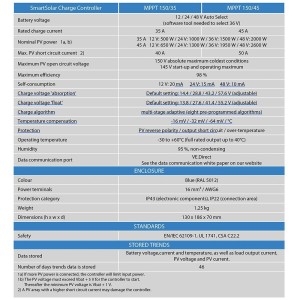

Technical Specifications:
Battery voltage: 12/24/48V;
Rated charging current: 45A;
Rated PV power: 12V: 650W - 24V: 1300W - 48V: 2600W;
Maximum PV open circuit voltage: 150 V;
Operating temperature: -30 to +60 °C;
Maximum efficiency: 98%;
Self-consumption: 12 V: 20 mA - 24 V: 15 mA - 48 V: 10 mA;
Constant charging voltage (absorption): 14.4 V / 28.8 V / 57.6 V;
Floating charging voltage (float): 13.8 V / 27.6 V / 55.2 V;
Loading algorithm: Multilevel, adaptive;
Protection: Reverse polarity on the battery (fuse), Reverse polarity photovoltaic, Output short circuit, Overheating;
Power connections 16 mm²;
Protection class: IP43 (electronic components);
IP22 (connection area)
Dimensions (HxWxD): 130x186x70 mm;
Weight: 1.25kg.
Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
