Small telescopic retractable davit Ø160/112mm Capacity 180kg per pair OS4235800

Small telescopic retractable davit Ø160/112mm Capacity 180kg per pair h990mm

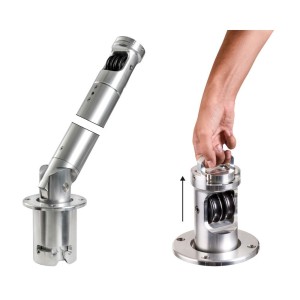

Dual universal retractable davit kit made of anodized aluminium.

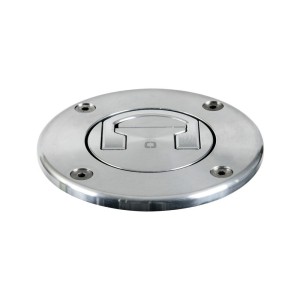

When in retracted position, it is hidden under the walking surface and leave the deck clear.
Fitted with double sheave and becket for both gangway and dinghy.

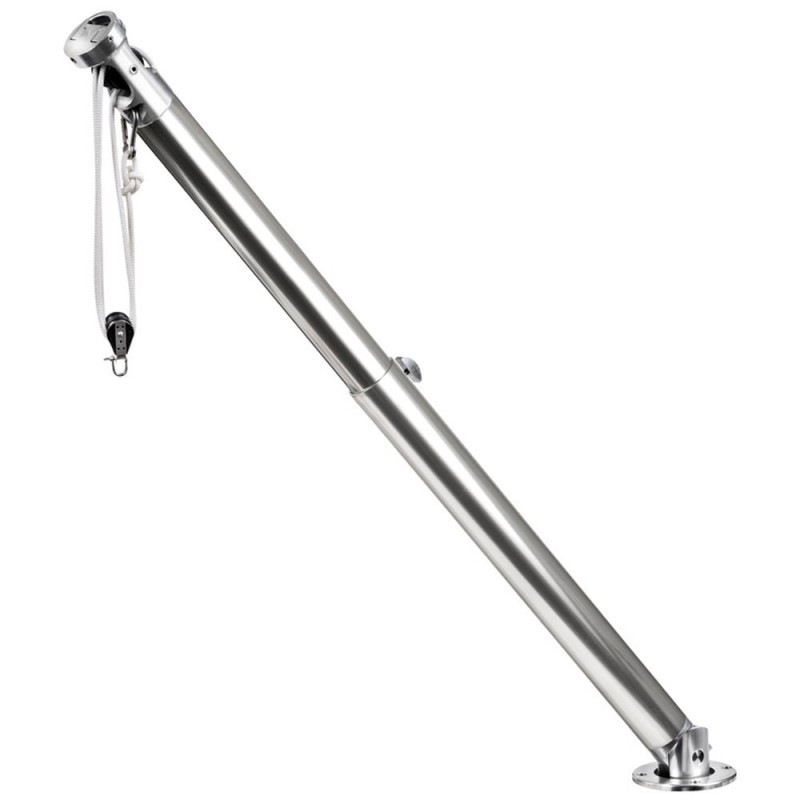

Two operating positions: in line with the boat (dinghy holding) or inclined at 20° on the inner part (gangway holding). The telescopic tube has a handle that can be rested on its head and adjusts the pole at different lengths depending on the needs and on the dinghy type.

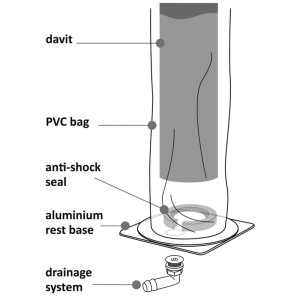

OPTION 42.358.90: PVC drain bag with hose connector to be used in case of water seepage. Easy to install on the davit base by means of a metal clamp. Anodized aluminium rest base and anti-shock seal + drainage system.
Features:
Load capacity: 180 kg per pair
Ø fixing base: 160 mm
Ø recessed hole: 112 mm
Ø telescopic tubes (internal/external): 73/80 mm
Dimensions:
- height (H): 990 mm,
- extension (L): 550/900 mm
- internal part (D): 1115 mm
