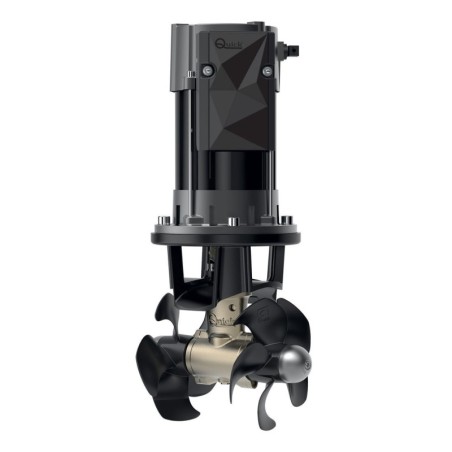

Quick BT DC-AC 185-105 24V Double Propeller 6300W 105kgf

Quick BT DC-AC 185-105 24V 6300W 105kgf Double Propeller

The BT DC AC series comprises a range of thrusters powered by a three-phase asynchronous brushless electric motor. The motor is controlled by a motor controller, which must be installed nearby. Components in contact with water are made of suitable materials, such as the gearbox, manufactured in aluminium-bronze alloy. The anode is made of aluminium and the output shaft of stainless steel. The thrusters may be made of either plastic or aluminium-bronze alloy, depending on the model.
Marine accessory designed to assist with docking manoeuvres when approaching the quay.

Key Features
• No carbon brushes
• Low power consumption
• Silent operation
• Proportional control as standard
• Unlimited runtime
• ​Easy to install

Technical data:
Model: BT DC-AC 185-105;
Propulsion system: Double propeller;
Ø Tunnel: 185 mm;
Voltage: 24V;
Motor power: 6.3 kW;
Thrust: 105 Kgf;
Boat length*: 9-15 m;
Weight: 28 kg;
Dimensions: 345x185x265 mm.

(*): Indications may vary according to the boat type.

⚠️ Attention:
This item is assembled directly by the manufacturer at the time of order. Delivery takes approximately 10–15 working days; during July, August, and December, slight delays may occur. We will always keep you updated on the status of your order.
