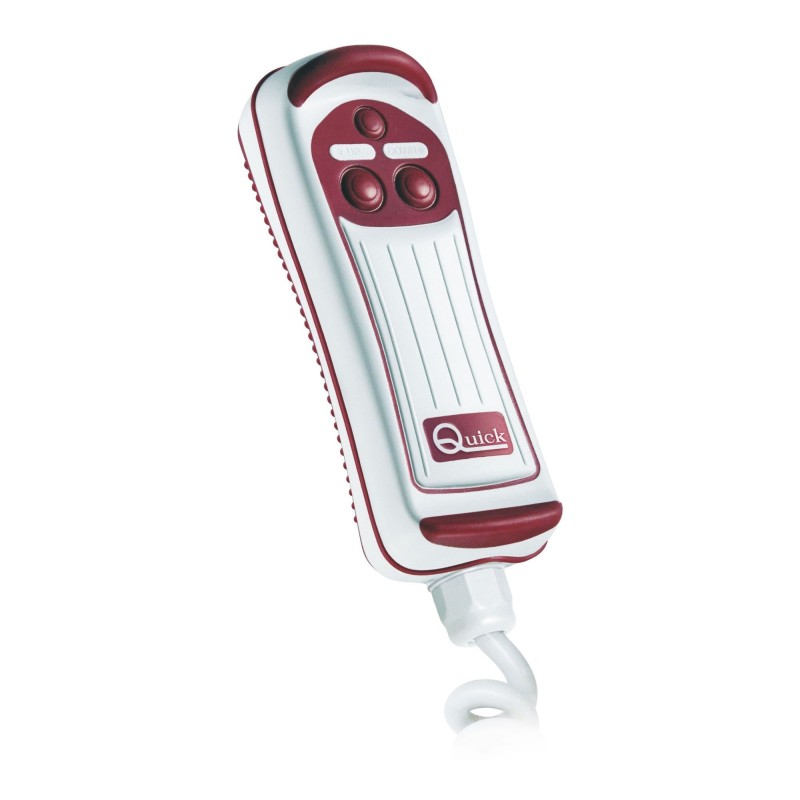

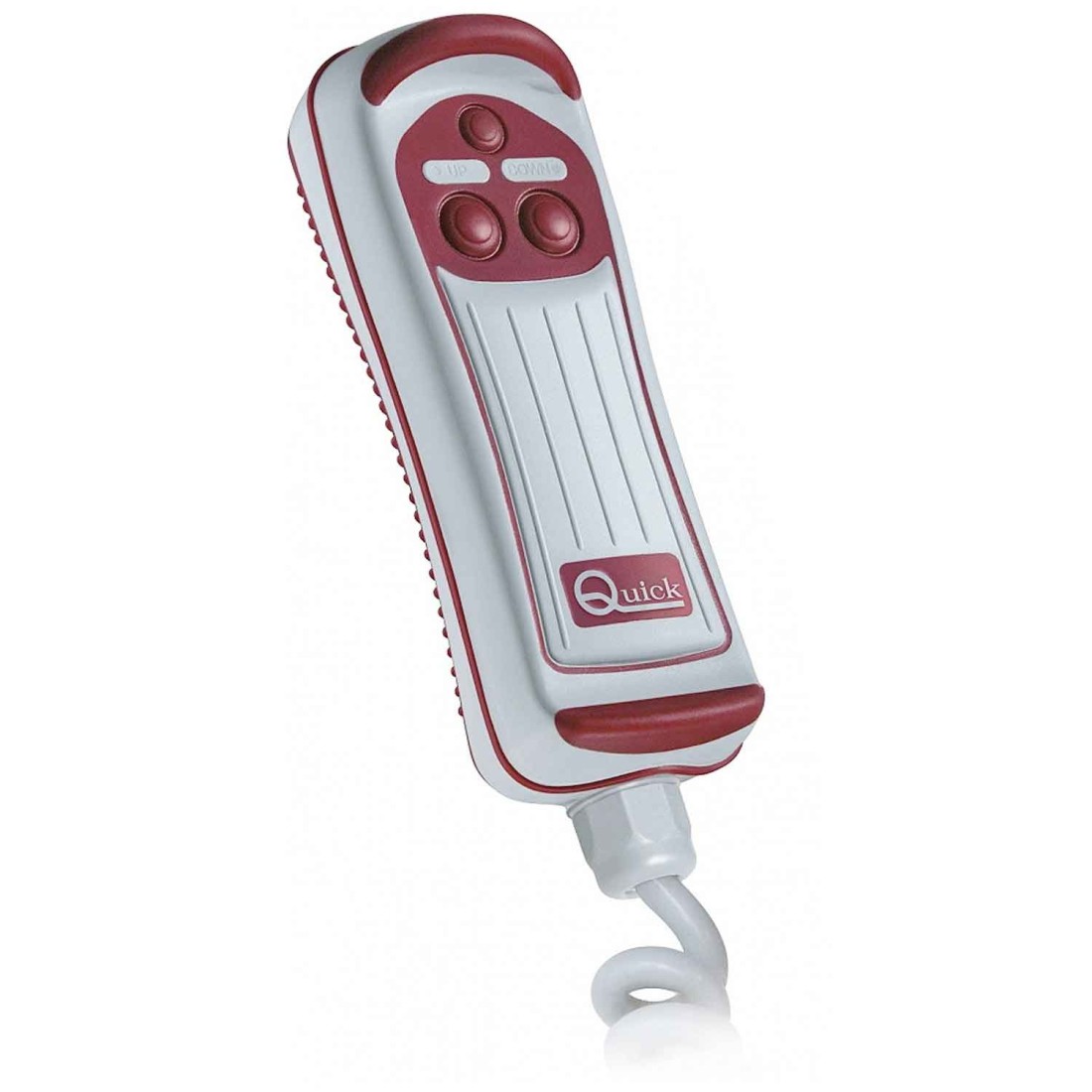

Quick HRC 1002 Multipurpose Control Panel 2 Buttons QHRC1002

Quick HRC 1002 Waterproof Multipurpose Control Panel with 2 Buttons

The Quick® multipurpose control panel is an instrument designed for the remote control of various moving systems on board a boat, including mini-crane, gangplank, swimming ladder, anchor hoist.
HRC is hand-held remote controls, designed for remote operation of various on-board electrically operated equipment such as cranes, gangways, windlasses, sea ladders etc.
HRC is constructed with rubber inserts to ensure high strength, long durability, perfect watertightness, and a secure grip.

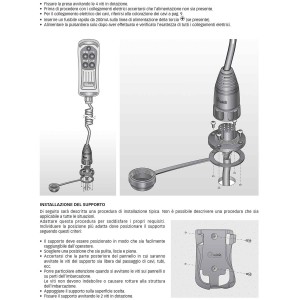

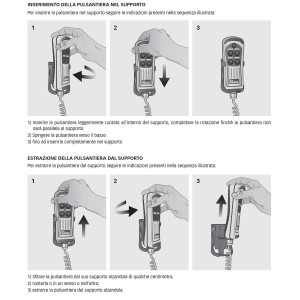

Cable extensible up to 4.2 metres. Watertight deck plug and socket. Support bracket for stowing after use. Maintenance-free. HRC is a patented product.

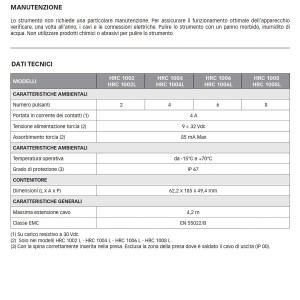

TECHNICAL DATA
Model: HRC 1002
Number of buttons: 2
Contact current rating (1): 4 A
Torch power supply voltage (2): 9 ÷ 32 Vdc
Torch current draw (2): 85 mA Max
Operating temperature: -15°C to +70°C
Protection rating (3): IP 67
Dimensions (W x H x D): 62.2 x 185 x 49.4 mm
Maximum cable extension: 4.2 m
Integrated LED torch available: No
EMC class: EN 55022/B

(1) On a resistive load at 30 Vdc.
(2) Only for models HRC 1002 L - HRC 1004 L - HRC 1006 L - HRC 1008 L.
(3) With the plug correctly inserted into the socket. Excluding the socket area where the output cable is welded (IP 00).

⚠️ Attention:
This item is assembled directly by the manufacturer at the time of order. Delivery takes approximately 10–15 working days; during July, August, and December, slight delays may occur. We will always keep you updated on the status of your order.
