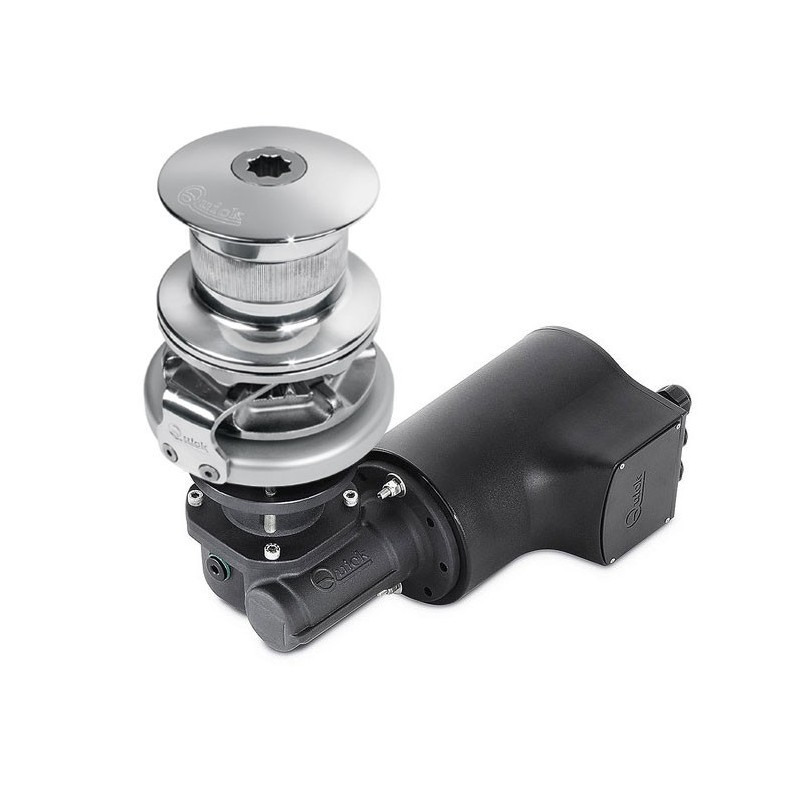

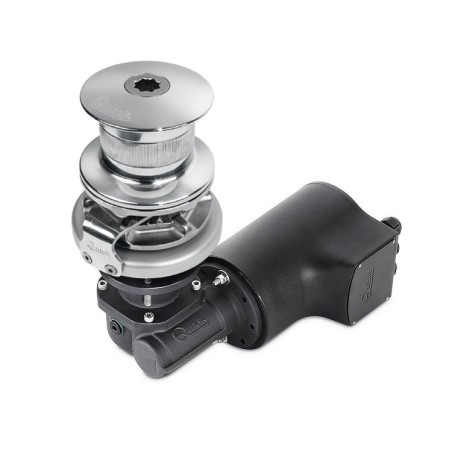

Quick RIDER R3P 1024D 1000W 24V Vertical Aluminium Windlass Drum Ø130mm QR31024D

Quick RIDER R3P 1024D 1000W 24V Vertical Aluminium Windlass with Ø130 mm Drum

NB: When placing your order please specify in the notes field whether you require an 8 or 10mm gypsy.

Quick RIDER R3P 1024D 1000W 24V vertical windlass in anodised aluminium with a remote control box for boats from 10 to 13 metres (33 - 43 ft).

Product sheet
• Vertical windlasses.
• Anodised aluminium base.
• With drum.
• Integrated sensor and magnet for chain counter.
• Manual Free-Fall system.
• Motor watertight to IP67.
• Technopolymer gearbox.

Technical data:
Model: RIDER R3P 1024D with Ø130 mm (5"1/8) Drum;
Motor power: 1000W;
Motor supply voltage: 24V;
Maximum pull: 1000 Kg;
Maximum working load: 450 Kg;
Working load: 150 Kg;
Current absorption @ working load (1): 80 A;
Maximum chain speed (2): 40,9 m/min;
Maximum chain speed @ working load (2): 21,4 m/min;
Weight: 19,1 Kg;
Deck thickness: 25÷50 mm (31/32"÷1" 31/32).

1) After an initial period of use.
2) Measurements taken with a gypsy for a for an 8 mm chain (8 mm 5/16": 8 mm DIN 766, 8 mm ISO, 5/16" G4, 5/16" BBB; 10 mm 3/8": 10 mm ISO (P.30), 3/8" G4.
