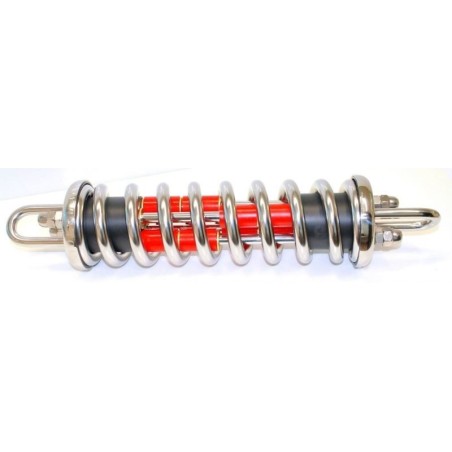

Top Series StainleStainless Steel SteelMooring Spring - D.94mm Breaking Load 35000Kg MT3136715

Patented stainless steel Mooring Spring ,specific high-performance, silenced inserts replaceable friction, highly resistant to marine corrosion and perfectly adaptable to different loads of stress, thanks to the wide range of sizes.
TOP STANDARD VERSION with cover cup in stainless steel and with 8 insert Mollaflex-Elastomer, increase damping load(see data sheet) . This shock absorbers is absolutely suitable for boat up to 50 Mt
The overall cushioning, to 60-70%, is given by the compression of the spring, made in a special alloy of stainless steel, high elasticity and in conditions of greater stress intevenes Mollaflex-Elastomer component. Model MPP/T - 015.
Technical Details:
Boat length: 25-35 Mt max
Spring diameter: 15mm
Diameter: 94mm
Insert Mollaflex: 8
Damping force: 1450 Kg
Breaking load: 35.000 Kg

N.B. It is recommended to use the model of the upper range, when you are at the limit of the length.
