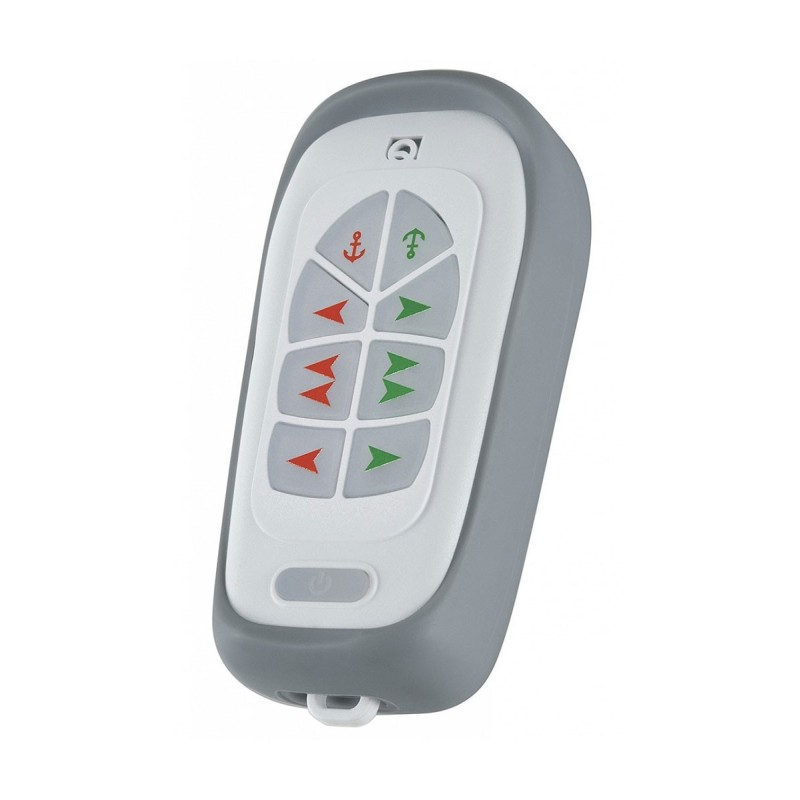

Quick RRC HT8+ 8-Channel 869Mhz Thruster Handheld Radio Transmitter QHT8

Quick RRC HT8+ 8-Channel 869Mhz handheld radio transmitter for thruster systems

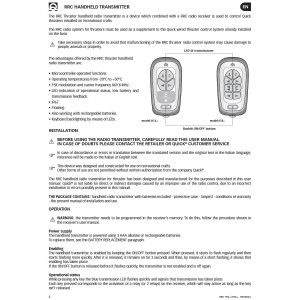

The RRC Thruster handheld radio transmitter is a device which combined with a RRC radio receiver is used to control Quick thrusters installed on recreational crafts.
The RRC radio system for thrusters must be used as a supplement to the Quick wired thruster control system already installed on the boat.

The advantages offered by the RRC thruster handheld radio transmitter are:
• Microcontroller-operated functions.
• Operating temperatures from -20°C to +50°C.
• FSK modulation and carrier frequency 869.8 MHz.
• LED indication of operational status, low battery and transmission feedback.
• IP67.
• Floating.
• Also working with rechargeable batteries.
• Keyboard backlighting by means of LEDs.

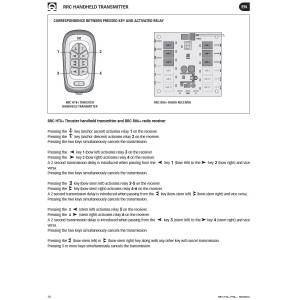

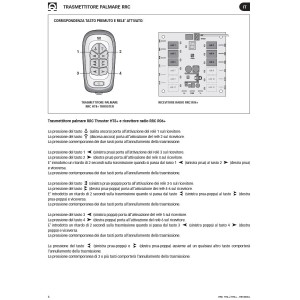

KEY CORRESPONDENCE:
8 buttons (Stern thruster, bow and windlass).

The handheld transmitter is enabled by keeping the ON/OFF button pressed. When pressed, it starts to flash regularly and then starts flashing more quickly. After it is released, it remains on for 3 seconds and then, by means of a short flashing, it shows that enabling has taken place.
If the ON/OFF button is released before it flashes quickly, the transmitter is not enabled and is off again.

Technical data:
- Model: HT8+;
- In compliance with Directive: 2014/53/EU (RED);
- Carrier fequency: 869.8 Mhz;
- Modulation: FSK;
- Number of keys/buttons: 8;
- Power supply: 3 AAA alkaline or NiMH rechargeable batteries;
- Service temperature: -20° C +50° C;
- Dimensions: 61x116x35 mm;
- Weight: 144 g.
- Protection degree: IP67;
- Complies with Directive: 2014/53/EU (RED).

THE PACKAGE CONTAINS:
handheld radio transmitter with batteries included - protective case - lanyard - conditions of warranty - the present manual of installation and use.

This item is assembled to order and requires approximately 20 working days to process.
