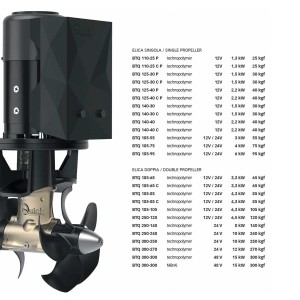

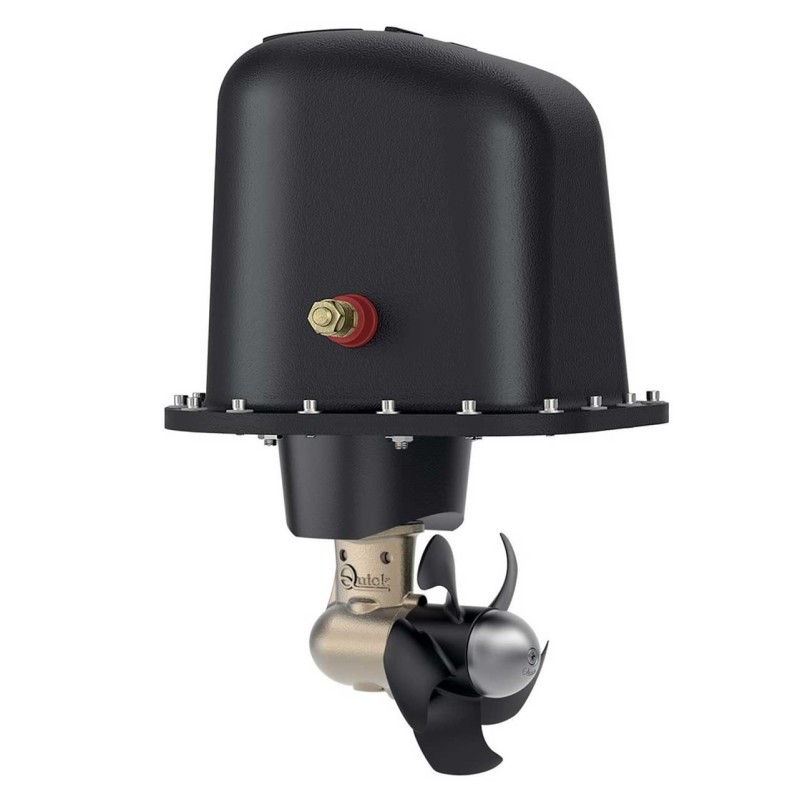

Quick BTQ 140-30C Single Propeller DC Stern Thruster 12V 1500W 30kgf with case

Quick BTQ 140-30C Single Propeller DC Stern Thruster 12V 1500W 30kgf with case

The Quick BTQ 140-30C stern thruster is a compact, powerful, and reliable solution for small to medium-sized boats.
Designed to ensure safe and precise maneuvering even in tight spaces, it is built with high-quality materials that guarantee strength, efficiency, and long-lasting performance. An ideal device to handle even the most demanding marine conditions with confidence.

Key Features
Single propeller in high-strength composite material.
Recommended for boats from 6 to 8 m (20 – 26 ft).
Bronze gearbox with hardened and ground bevel gears for maximum efficiency.
Standard zinc anode, independent from the gearbox and easily replaceable.
Quick elastic coupling: optimizes alignment between motor and gearbox, reduces vibrations, and protects the system.
Protective casing for contactors in robust, corrosion-resistant composite material.

Performance & Reliability
Gearbox designed to ensure the same performance of the propeller in both directions.
Minimal maintenance: high-strength components ensure lifetime oil seal integrity.
Hydrodynamic bronze leg profile designed to minimize turbulence and increase efficiency.
4-blade composite propeller, secured with stainless steel self-locking nuts: maximum thrust with reduced power consumption.
Electrical connections equipped with quick, safe, and practical connectors.

Motor & Safety
Motor built with next-generation materials to deliver consistent performance even under demanding conditions.
Overheating protection ensured by an integrated microprocessor.
Support flange in hard-anodized aluminum for superior corrosion resistance and long service life.

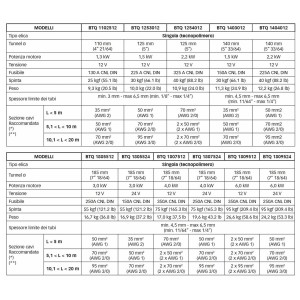

Technical data:
Model: BTQ 140-30C;
Propulsion system: Single propeller;
Ø Tunnel: 140 mm;
Voltage: 12 V;
Motor power: 1.5 kW;
Thrust: 30 Kgf;
Boat length*: 6-8 m;
Weight: 13.7 kg;

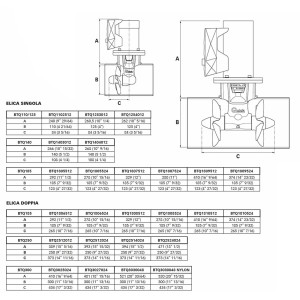

Dimensions: A= 287 mm, B= 140 mm, C= 108 mm.

(*) ATTENTION: Indications may vary according to the boat type.

⚠️ Attention:
This item is assembled directly by the manufacturer at the time of order. Delivery takes approximately 10–15 working days; during July, August, and December, slight delays may occur. We will always keep you updated on the status of your order.
