Uflex MTC 12-CH Electromechanical Trim Tabs Set 2 AC 12VDC Actuators + 1 joystick UF43043M

Uflex MTC 12-CH Electromechanical Trim Tabs Set 2 AC 12VDC Actuators + 1 joystick FLAP

The trim tab blades are not included and are sold separately.

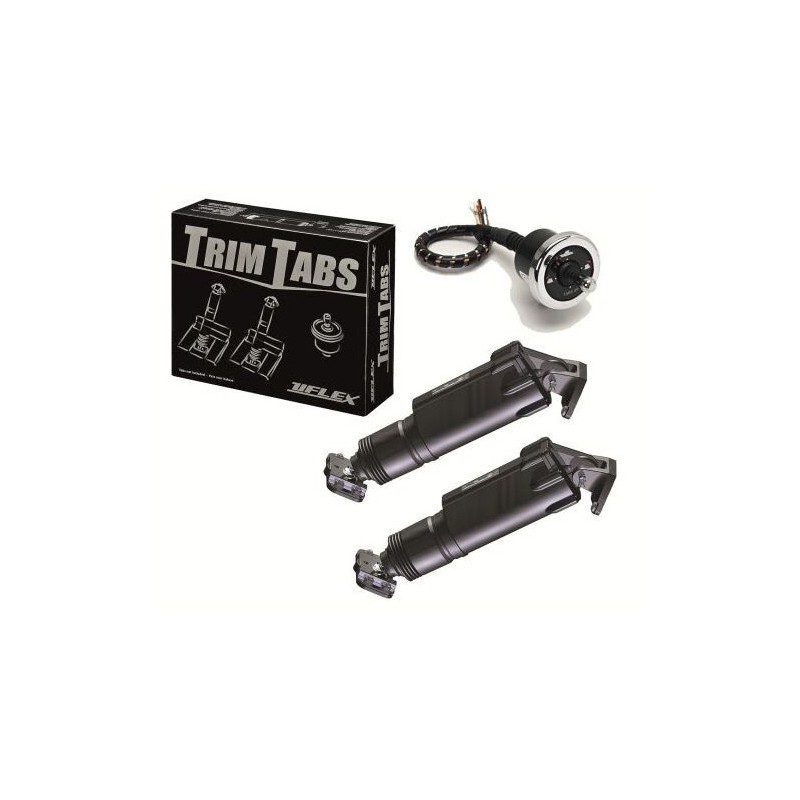

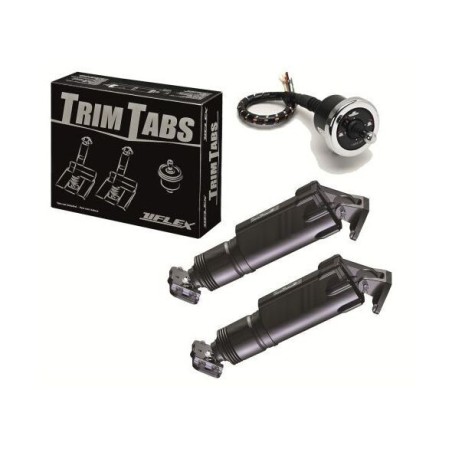

The prepackaged UFLEX set includes 1 pair of AC 12VDC actuators complete with brackets and 1 Joystick. Trim tabs for small and medium sized boats.

The set includes the actuators and the joystick control device.

AC 12VDC Actuators
AC12 - 43001V
Actuator and black brackets
Black colour 1 m (3.28’) wiring harness included with Deutsch crimped pin
Operating stroke: 57mm (2.25")

CONTROL UNIT FOR SINGLE STATION:
J/CH - 41849Z chrome-plated
• Main station compact control unit with joystick (PATENTED).
• Auto-line up function included (automatic flap realignment)
• Wiring harness included  (length. 0,50 m)
• 70mm (2.76”) hole size

They are not designed for use on racing boats.

Electromechanical trim tabs

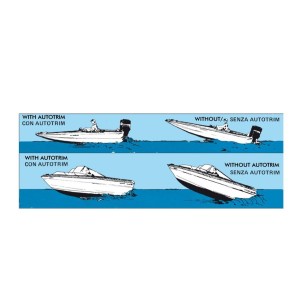

Improve fuel economy and passenger comfort with Uflex electromechanical trim tabs. Featuring electropolished stainless steel planes and low consumption, high speed, composite actuators, these tabs are built to last in the most demanding sea conditions.
Uflex trim tabs have been specifically designed for easy installation using a quick connect bracket-actuator, requiring only one small hole per tab through the transom. The patented transom mounting bracket encapsulates the wiring to ensure protection against any wiring damage.

Uflex trim tab systems are available in 2 versions:
MTS systems for standard installations
MTC systems for compact installations

FEATURES
• Operating system with hardened steel ballscrew, suitable to withstand high push loads.
• Prompt and easy control with the innovative use of a Joystick (PATENTED)
• AUTO-LINE UP: automatic flap re-alignment function
• Completely sealed thermoplastic resin tab actuators: maximum protection guaranteed by dual seals and a rubber bellow (PATENTED)
• Stainless steel rod and tabs
• The innovative profile of the tabs increases the efficiency of the system
• The stainless steel top surface of the tabs is mirror polished to give higher resistance to marine environment.
Unpolished stainless steel tabs also available.
• Hole hinge design (PATENTED) allows for precise retrofit replacement with same size Lenco® and Bennett® tabs
• Fully maintenance free
• Voltage: 12V DC
• IP68 protection degree
• CE Certification
• Complies with EN60945 standards
• The system is not designed for use on racing boats.
• In the MTC version, the joint between the actuator and the tab is a spherical joint. This allows to compensate for small installation misalignments.
