Lowrance Outboard Pilot Cable-Steer Pack 000-11749-001 62400002

Outboard Pilot Cable-Steer Pack

The autopilot pack for Lowrance High Definition System (HDS) displays, provides automatic steering for cable-steer outboard motors. An extra pair of hands when you need it, the Outboard Pilot, featuring Lowrance SmartSteer™ control from your HDS Gen2 or Gen3, will steer to a heading, waypoint or route.

Everything you need in one box to fit an autopilot to your cable-steer outboard motor, the Outboard Pilot lets you focus on fishing activity while keeping the boat on course. When connected to a Lowrance HDS Gen2 or Gen3, the Outboard Pilot can steer to a waypoint or along a route, select a turn pattern or simply hold a constant heading. The Lowrance SmartSteer™ user interface allows you to easily switch between electric-steer, trolling-motor control and outboard motor control directly from your HDS display. And, with your HDS display, you can easily convert trails to routes – so you can retrace a previous track and get your boat back to the dock from your fishing area.

The Lowrance Outboard Pilot is recommended for single and dual outboard set-ups, on boats that are 30 feet and less, in length.

Key Features
- Steer your outboard motor to a heading, waypoint, route or cursor, with control from your HDS Gen2 or Gen3 display.
- New Lowrance SmartSteer™ interface provides control of both your cable-steer outboard motor, as well as the MotorGuide Xi5 Pinpoint electric-steer trolling motor.
- “One-touch” route creation from saved trails.
- Repeat your path with automatic turn patterns.
- Recommended for single-outboard setups, on boats that are 30 feet and less, in length.
- VRF (Virtual Rudder Feedback) – simplifies pilot installation -- eliminating the need for a rudder position sensor.
- Easy setup – straightforward guide steps you through first-time install.
- Easy-to-install, plug-and-socket connection – with no complex terminal wiring.
- Supported by Lowrance Advantage Service program
- Lowrance Outboard Pilot Cable-Steer Pack replaces the manual helm-drive unit.
- Morse 290, Morse 304411 and Teleflex SSC52 cable compatibility
- Helm-1 is only compatible with the NAC-1.Helm-1 includes variable-voltage feedback interface

Specifications:
Water Resistance: IPx5
Product Width [mm]: 210
Product Height [mm]: 58
Product Depth [mm]: 188
Weight [kg]: 1

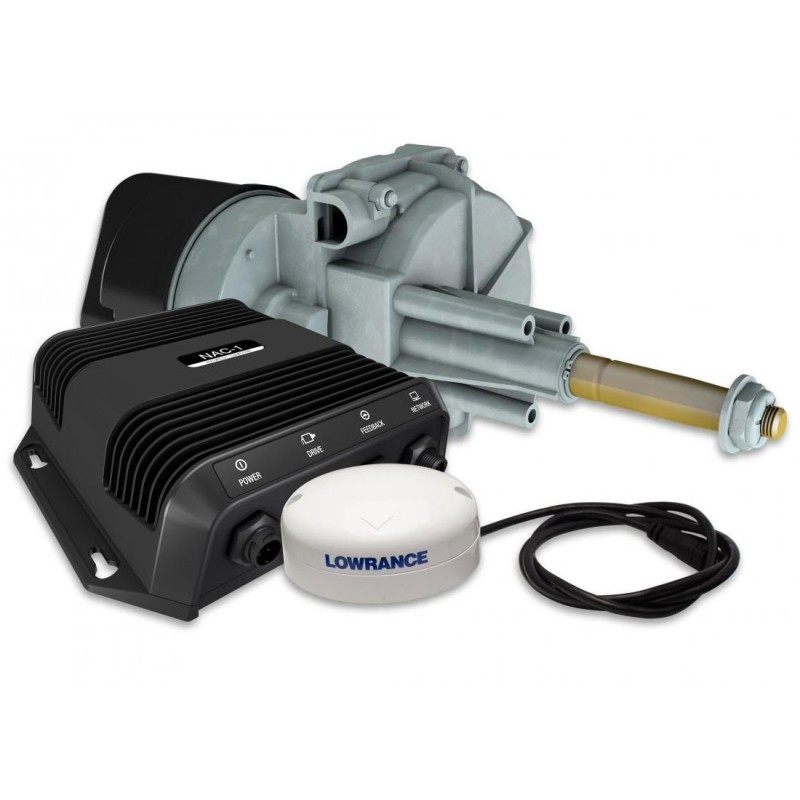

What’s in the box

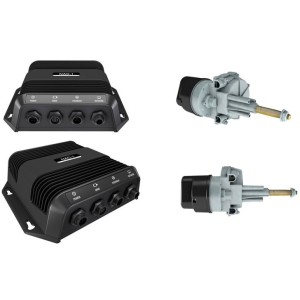

NAC-1 Autopilot Computer 000-11769-001
The brains behind your Lowrance Outboard Pilot system. It contains the steering computer and electronics for the drive unit motor

Helm-1 -1 Cable-steer helm drive unit 000-11771-001
This drive unit replaces your manual helm-drive unit on single cable installations. Compatible with Morse 290, 304411 and Teleflex SSC52 cables. Includes voltage rudder-feedback sensor, and is only compatible with NAC-1.

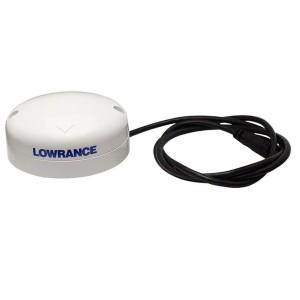

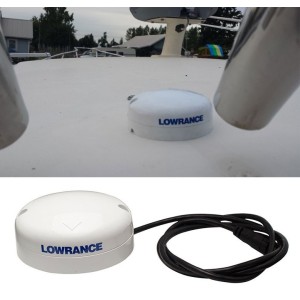

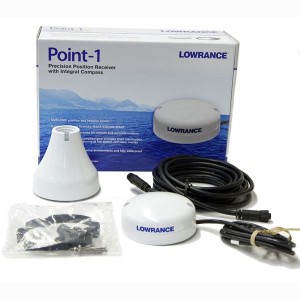

Point-1 Heading and GPS Sensor 000-11047-001
Provides extremely accurate and rapid boat position update, along with heading for accurate boat direction at any speed

Auto/Standby Button
Mounts anywhere on dash and changes Autopilot from STBY to AUTO mode with one press.

Lowrance 000-11749-001.
