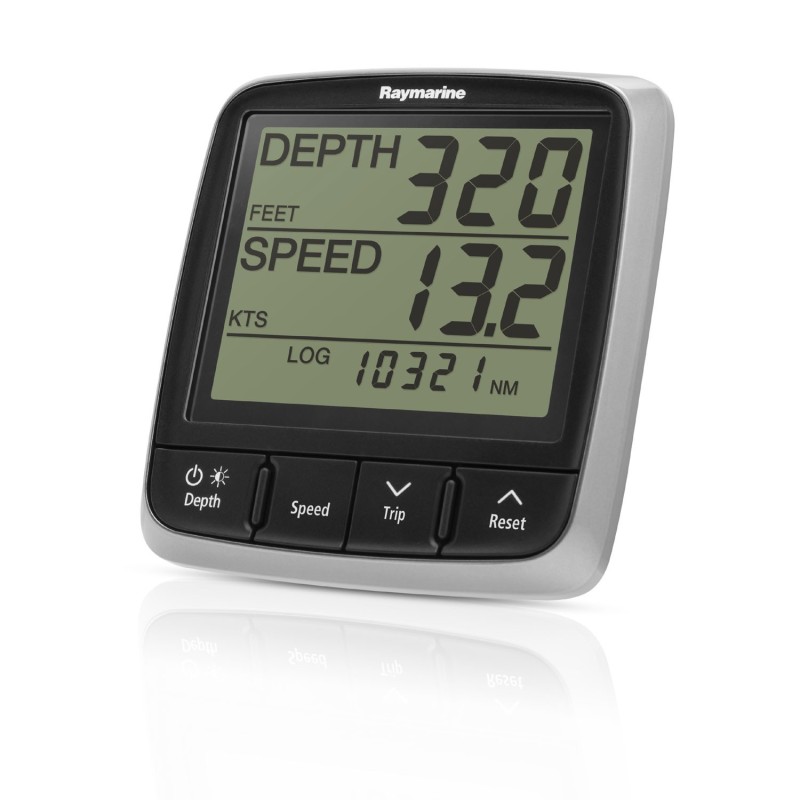

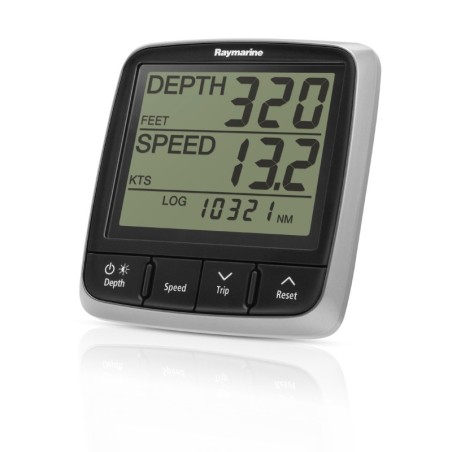

Raymarine i50 Tridata Digital Instrument Display RYE70060

The perfect solution for smaller power boats, yachts and rigid inflatables!!

The i50 instruments are designed to complement Raymarine's latest generation multifunction displays. These stylish, dedicated-function instruments are the perfect solution for smaller power boats, yachts and RIBs. The i50 range consists of 3 digital displays: speed and depth displays with extra-large digits and a multi-line tridata unit.
Excellent viewing angles for both day and night conditions and simple, push-button controls make i50 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design.

Key Features
- Large numerals and digits
- Red back lighting for enhanced night time visibility
- SeaTalk and SeaTalkng interfaces
- NMEA 2000 (compatible) interface
- Built-in transducer interface

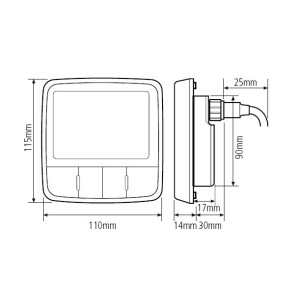

- 110mm x 115mm footprint
- Low power consumption
- Multiple data source support eliminates potential data conflicts
- Front mounted design for simple installation

Raymarine i50 Tridata Digital Instrument Display. Raymarine code E70060.
i50 Tridata:
- Combines depth and speed data
- Easy to read 3-line display, dedicated depth and speed displays
- Trip/log, sea temperature and SOG

Technical features:
Nominal Voltage: 12V DC
Operating Voltage Range: 10 - 16V DC
Power Consumption: typically <1W (display only) and 2.4W maximum with transducer connected
Current Consumption: 45 to 65mA (display only) and 200mA maximum with transducer connected
Operating Temperature range: -20ºC to +55ºC
Storage Temperature: -30ºC to +70ºC
Relative Humidity: up to 93%
Waterproofing standard: IPX6
Connections: 2 x SeaTalkng and transducers
Compatible with marine industry CAN systems
Conformance: Europe 2004/108/EC

In the box:
- i50 instrument
- Front bezel
- SeaTalk to SeaTalkng adaptor cable
- SeaTalkng spur cable
- Gasket
- Sun cover
- Documentation pack
- SeaTalkng blanking plug
- 4 x fixing screws
