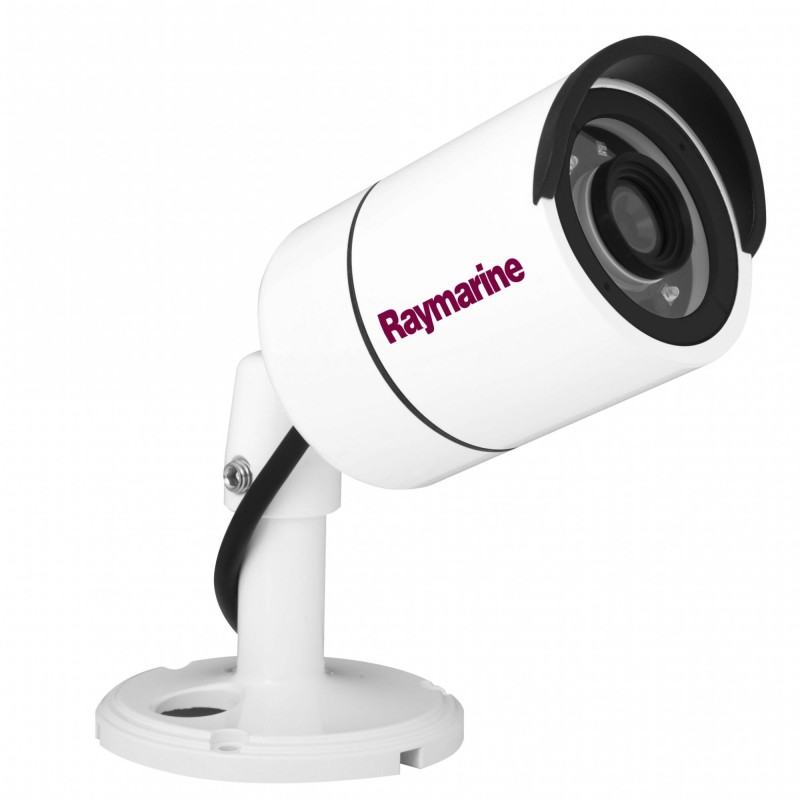

Raymarine CAM210 IP Day and Night Network Marine Camera E70346 RYE70346

CAM210 IP Day and Night Network Marine Camera E70346 Raymarine

Ruggedised, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat.

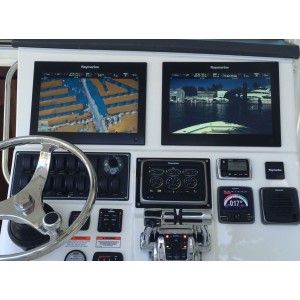

•    Plug and play integration with Raymarine MFD’s running Lighthouse II.
•    Power over Ethernet (PoE) or direct 12v DC power supply.
•    High bright IR LEDs for operation in total darkness.
•    Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke).
•    Intelligent IR technology for clear video images at night in all conditions.

GENARAL SPECIFICATIONS
System
CPU: 32-bit ARM9 RISC CPU up to 432MHz;
Flash / SDRAM: 128MB / 128MB.
Camera
Image Sensor: 2.0 Megapixel 1/2.8" SONY progressive scan CMOS(Exmor);
Total Pixels: 1952(H) x 1116(V) 2.18 Megapixel;
Effective Pixels: 1944(H) x 1104(V) 2.15 Megapixel;
S/N Ratio: More than 50dB;
Minimum Illumination: 0Lux (IR On);
IR Distance: 20m;
Day & Night: ICR;
Lens: 6.0mm Megapixel Board Lens;
Field of View: Diagonal = 63.6 deg +/- 3 deg - Horizontal = 33.1 deg +/- 3 deg - Vertical = 53.3 deg +/- 3 deg.
Video
Video Compression: H.264 High Profile@4.0, MJPEG –Image quality: 3 Steps;
Resolution: Up to 1920 x 1080 (Full HD);
Frame Rate: H.264 Up to 30fps with 1920x1080 | MJPEG Up to 30fps with VGA resolution;
Video Streaming: Support multi stream with H.264, MJPEG - Adjustable frame rate -
CVBR/CBR in H.264;
Image Setting: Day & Night - Auto White Balance - Auto Exposure - Privacy Mask - Effects - Colour, Sharpness, Mirror / V-Flip.
System Integration
Security: Password protection, User access log, HTTPS encryption;
Supported Protocol: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP;
Intelligent Video: Motion detection up to 1920x1080 with 4x3 blocks.
Physical
Power Source: DC12V/1.5A, PoE (Power over Ethernet): 802.3af;
Power Consumption: Max. 3.3W, Max. 5.3W with IR;
Net Weight: 900g;
LED's: Power, Network Connection;
Dimensions: 83.8mm(W) x 155mm(H) x 178.1mm(D) including Bracket;
General Operation Temperature: 0 degree~40 degree Celsius(32F~104F);
Storage Temperature: -10 degree~50 degree Celsius(14F~122F).

IN THE BOX
1     CAM210 IP Camera Stand;
1     Waterproof Coupler;
1     CAM210 Hardware Kit;
1     CD (English);
1     CAM210 Mounting Template;
1     Warranty Booklet;
3     Serial Number Labels - Service.

Raymarine E70346
