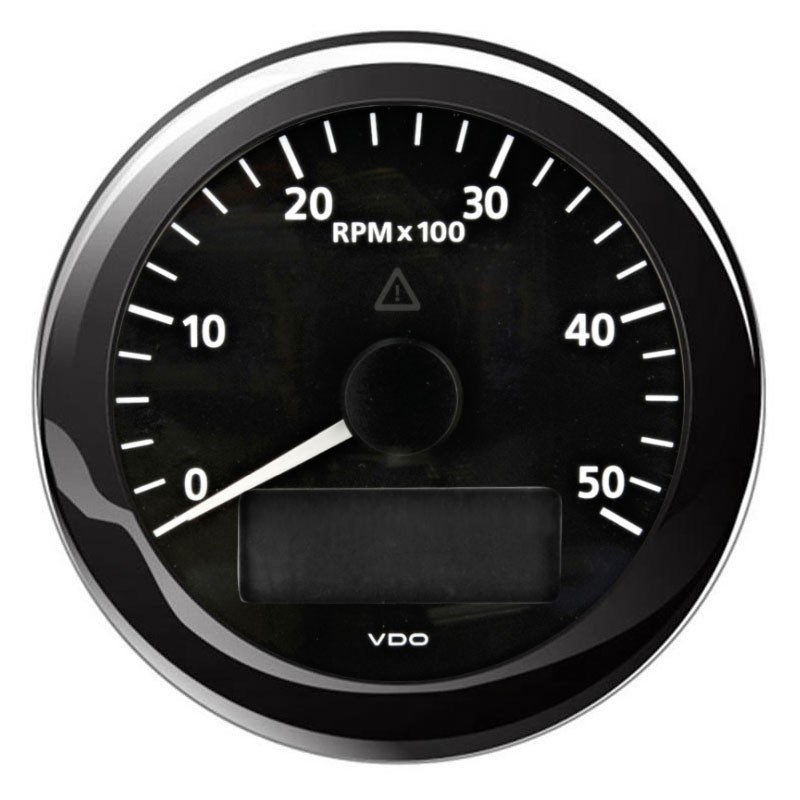

VDO ViewLine 5000 RPM Black Tachometer 12/24V 85mm OS2758002

VDO ViewLine 5000 RPM Black Tachometer 12/24V Ø85mm

Indicates the number of engine revolutions from 0 to 5000 RPM. Digital display. An LED indicator is integrated as standard. Black dial. It is equipped with finishing ring having the same color as their dial.
Technical specifications:
• Scale 5000 RPM Input: W= signal W alternator; IND= VDO inductive sensor; HALL= HALL VDO effect sensor; 1= Terminal 1 reel.
• 12/24V operating voltage;
• Accuracy +/- 2.5% on full scale;
• Tyco/Hirschmann 8 and 14 pole plug housing;
• Current consumption <175 mA with an LED indicator;
• Liquid crystal display 37x11 mm;
• Specific programmable display eg. for watch, travel, odometer etc. via externally operated button or PC software (ViewLine programming tool);
• Protection against polarity inversion;
• Double anti-fog lens;
• Degree of protection IP67 front, IP52 rear;
• Installation diameter 85 mm;
• Installation depth 50 mm;
• Operating temperatures from -20 ° C to + 70 ° C.
It is completed with:
- 27.599.11 Tyco/Hirschmann 8-pole connector complete with cable;
- 27.599.12 Tyco/Hirschmann 14-pole connector complete with cable for other functions: hour counter, clock, voltmeter;
- 27.599.13 Push-Button necessary for basic and advanced programming of the RPM counter.
