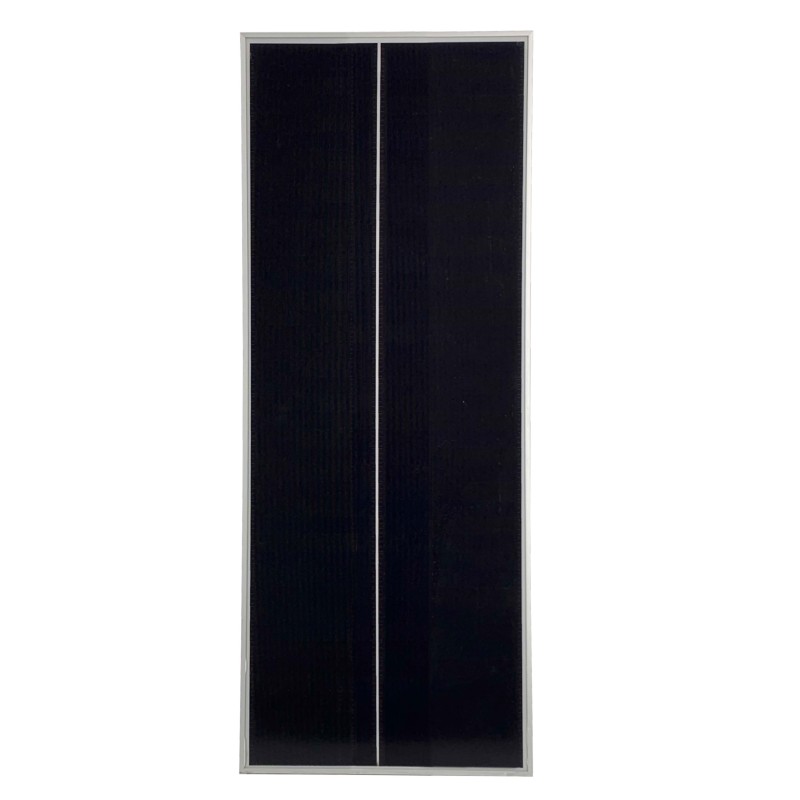

20W 12V 20.42Vmp Monocrystalline Photovoltaic Module Solar Panel N52330050105

20W 12V 20.42Vmp Monocrystalline Photovoltaic Module

Designed for the rural electrification, data survey, telecommunication and special applications. Thanks to its versatility, the panel is very popular and used both in developing countries as well as the European market. Furthermore every single cell and module produced have been tested and checked several times throughout the manufacturing process. The interconnections between panels are easy, practical and optimized for every configuration and voltage. Robust construction and heavy duty anodized aluminium frame design makes this module suitable, safe, simple and fast to be installed in many situations.


Features:
- High module conversion efficiency.
- The efficiency of high-quality and high-efficiency monocrystalline silicon wafers can reach 22%.
- Excellent performances even during low solar radiation (cloudiness, morning or evening).
- Solar-grade tempered prismatic glass.
- High-quality cells and partial-cell design lower series resistance and reduce power degradation.
- Strict and continuous quality controls during all the production phases up to shipment.
- A-grade solar cells.
- The integrated bypass-diodes allow the panel to work when partially shaded.
- IP67 rated junction box, reliable cables and standard MC4 connectors improve the stability.

ITALIAN WARRANTY
Standard 2 year warranty on materials and manufacturing defects.

Features:
- Model: SZ-20-36M;
- Power peak: 20W;
- Cell efficiency: 22%;
- Cells: 36 monocrystalline silicon cells.
- Vm (voltage at maximum p.): 20.42V;
- Im (maximum current): 0.98A;
- Voc (open circuit voltage): 24.27V;
- Isc (short circuit current): 1.04A;
- Dimensions: 540x240x25 mm;
- Net Weight: 1.6 kg.

Note: Pv module provided with cable MC4 connectors. If the distance between the PV module and charge controller is less than 10 mt, we recommend using 4 mm² cable; If the distance between the PV module and charge controller is more than 10 mt, we recommend using 6 mm² cable.

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice.
The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
