200W 18.15V Photovoltaic Module for Camper Van Boat Cottages N52330050179

200W 18.15V 21.57V Monocrystalline Photovoltaic Module 36M

Designed for the rural electrification, data survey, telecommunication and special applications. Thanks to its versatility, the panel is very popular and used both in developing countries as well as the European market. Furthermore every single cell and module produced have been tested and checked several times throughout the manufacturing process. The interconnections between panels are easy, practical and optimized for every configuration and voltage. Robust construction and heavy duty anodized aluminium frame design makes this module suitable, safe, simple and fast to be installed in many situations.
Prevent the loss of electricity: used on the roof of the car, charge the car battery at any time. Can prevent the car battery from losing electricity, and solve the situation that the car cannot be fired due to the battery loss caused by the long-term parking of the vehicle.
Elettrodomestici di bordo: quando si utilizzano gli elettrodomestici di bordo, la potenza originale della batteria dell'auto non si perde (audio per auto, navigatore, registratore di guida, aspiratore, ventilatore per auto, frigorifero per auto, cellulare, ecc.).

Features:
- High module conversion efficiency.
- The efficiency of high-quality and high-efficiency monocrystalline silicon wafers can reach 22%.
- Excellent performances even during low solar radiation (cloudiness, morning or evening).
- Solar-grade tempered prismatic glass.
- High-quality cells and partial-cell design lower series resistance and reduce power degradation.
- Strict and continuous quality controls during all the production phases up to shipment.
- A-grade solar cells.
- Anti-corrosion EVA effectively protects the battery panel.
- Strong and anti-wind and snow, unique technology to avoid freezing of water in the frame and deformation.
- Lightweight and flexible features can make it seamlessly integrated into your vehicle.
- The integrated bypass-diodes allow the panel to work when partially shaded.

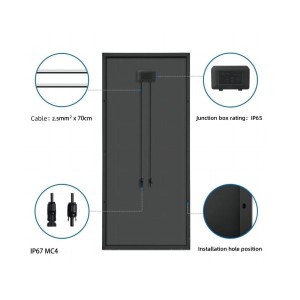

- IP67 rated junction box, reliable cables and standard MC4 connectors improve the stability.

Technical data:
- Model: SZ-200-36M;
- Peak power: 200 W;
- Cell type: Monocrystalline;
- Cell Efficiency: 22%;
- Cell configuration: 36 monocrystalline silicon cells;
- Vmp: 18.15 V;
- Imp: 11.02 A;
- Voc: 21.57 V;
- Isc: 11.69 A;
- Maximum system voltage: 500 V;
- Output tolerance: 0±3%;
- Cable: 700 mm/2.5 mm²;
- Connector type: MC4/MC4 compatible;
- Model structure: Aluminum frame, glass, EVA, black backsheet;
- Junction box classified ≥IP67;
- Working temperature: -40°C ~ +80°C;
- Size: 1100x890x30 mm;
- Weight: 11.60 kg.
Mechanical Data:
Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃.

Note:
Pv module provided with cable MC4 connectors.
If the distance between the PV module and charge controller is less than 10 mt, we recommend using 4 mm² cable;
If the distance between the PV module and charge controller is more than 10 mt, we recommend using 6 mm² cable.

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
