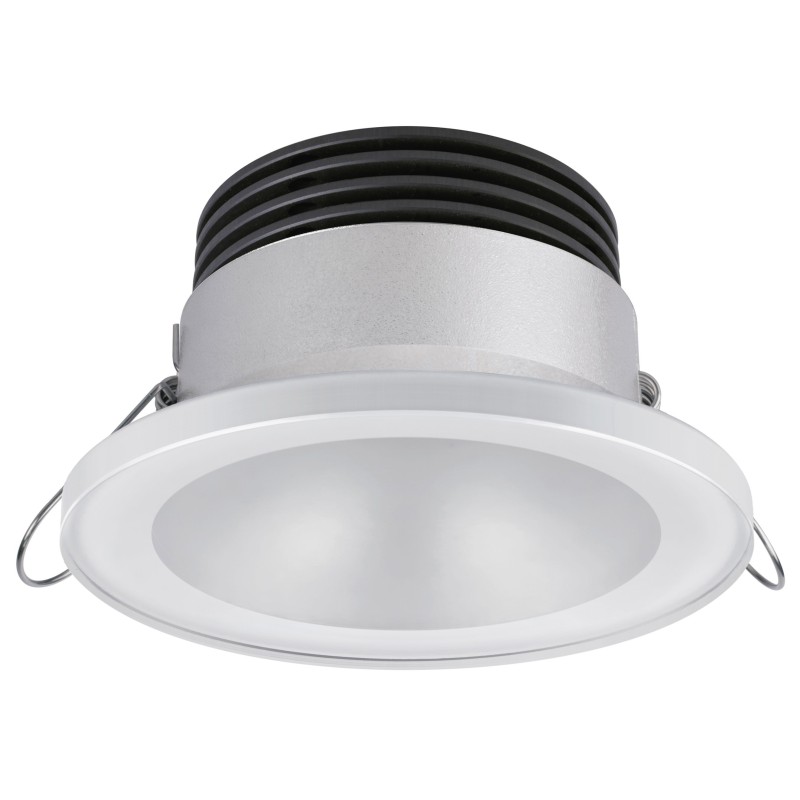

Quick ZEUS HP 7W 10-30V LED Downlight 365-400lm IP40 9.5mm Glass Q25300012BID

Quick ZEUS HP 7W 10~30Vdc LED downlight 365-400lm IP40 DL102 Ø102mm made with 9.5mm tempered glass

Modern series of Power LED downlights.

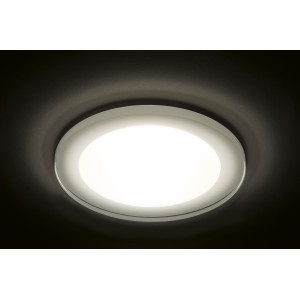

The diffuser, made with tempered glass, gives the product a particularly refined look.
Round tempered glass frame - satin finish lens. Natural, warm, tunable white, RGBW light.
Available in RGBW version and in TW (Tunable White) version, and it can be controlled with the QCC Systems by Quick.

Features:
Power type: Constant Voltage;
Light source: LED;
Supply: 10 ÷ 30 V;
Power consumption: 7 W;
Current consumption: 0.29 A @ 24V;
Average lifespan: 50.000 h;
Dimmable: Yes;
IP protection degree: 40;
Light colours: DAYLIGHT / WARM WHITE / TUNABLE WHITE / RGBW;
Frame material: 9.5 mm GLASS;
Square frame: Ø 102 4 1/64";
Recess: 55 mm 2 5/32";
Hole: Ø 89 mm 3 1/2";
Mounting: springs.

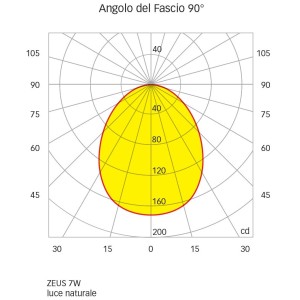

Photometric data:
Natural White 3800-4100K
- CRI: ≥ 80;
- Angle: 90°;
- Luminous flux: 400 lm;
- Illuminance - distance 1 m: Ø 2.09 m - 171.5 lux;
- Illuminance - distance 2 m: Ø 4.18 m - 42.9 lux;
- Illuminance - distance 3 m: Ø 6.27 m - 19.1 lux.

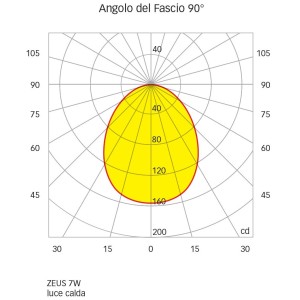

Warm White 2900-3100K
- CRI: ≥ 80;
- Angle: 90°;
- Luminous flux: 365 lm;
- Illuminance - distance 1 m: Ø 2.09 m - 155.9 lux;
- Illuminance - distance 2 m: Ø 4.18 m - 39 lux;
- Illuminance - distance 3 m: Ø 6.27 m - 17.7 lux.
RGBW
- CRI: ≥ 80;
- Angle: 90°;
TUNABLE WHITE 2700-5700 °K
- CRI: ≥ 80;
- Angle: 90°.
LED Protection: Spike protected ± 500V.
Polarity sensitive: Yes.
Certifications: class III, CE.

Note: Please choose the desired colour from the drop down menu.

25300012BIN NATURAL WHITE
25300012BIC WARM WHITE
25300012RGBW RGBW
25300012BID DYNAMIC WHITE
