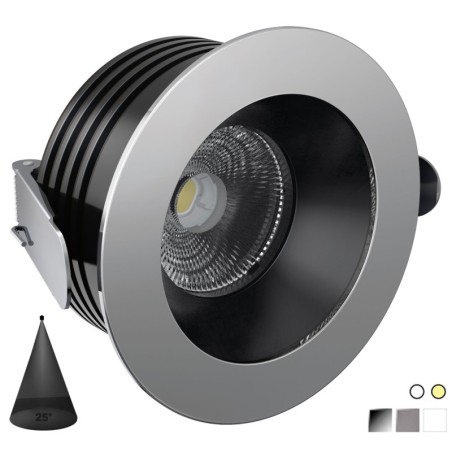

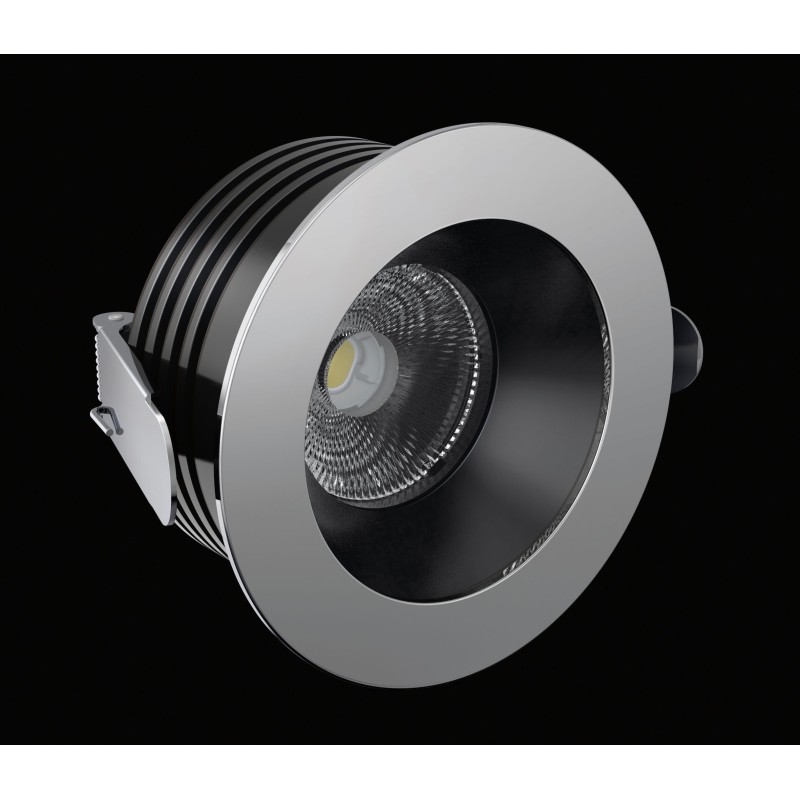

Quick PALLADIO R105 25° 13W 930-1000lm IP66 Anti-glare LED Downlight Q25300035BICS

Quick PALLADIO R105 25° 13W 20~30Vdc 930-1000lm IP66 DL105 with Ø105mm AISI 316 round frame

Antiglare LED downlights for recessed applications with backlit option, in AISI 316 stainless steel. Dissipator made of anodised aluminium. Available with beam angle of 25°. AISI 316 round frame. Mirror polished, satin or White 9010 finish. Natural or warm light.

Features:
Power type: Constant Voltage;
Light source: LED;
Supply: 20 ÷ 30 V;
Power consumption: 13 W;
Current consumption: 0.54 A @ 24V;
Average lifetime: 50.000 h;
Dimmable: Yes;
IP protection degree: 66;
Frame material: AISI 316 S/STEEL;
Finishing: BLACK PVD / GOLD PVD;
Light colours: DAYLIGHT / WARM WHITE;
Square frame: Ø 105 mm (4 9/64'');
Recess: 77 mm (3 1/32");
Hole: Ø 90 mm (3 1/2'');
Mounting: springs.
Photometric data:
Natural White 3800-4100K
- CRI: ≥ 95;
- Angle: 25°;
- Luminous flux: 1000 lm;
- Illuminance - distance 1 m: Ø 0.47 m - 3771.7 lux;
- Illuminance - distance 2 m: Ø 0.94 m - 924.9 lux;
- Illuminance - distance 3 m: Ø 1.41 m - 419.1 lux.
Warm White 2900-3100K
- CRI: ≥ 95;
- Angle: 25°;
- Luminous flux: 930 lm;
- Illuminance - distance 1 m: Ø 0.47 m - 3508.6 lux;
- Illuminance - distance 2 m: Ø 0.94 m - 877.1 lux;
- Illuminance - distance 3 m: Ø 1.41 m - 398.8 lux.
LED protection: Spike protected ± 500V / Against inversion of polarity.
Certifications: class III, CE.

Note: Please choose the desired colour from the drop down menu.

25300035BINL MIRROR POLISHED NATURAL WHITE
25300033BICL MIRROR POLISHED WARM WHITE
25300035BINS SATIN NATURAL WHITE
25300035BICS SATIN WARM WHITE
25300035BINB WHITE 9010 NATURAL WHITE
25300035BICB WHITE 9010 WARM WHITE
