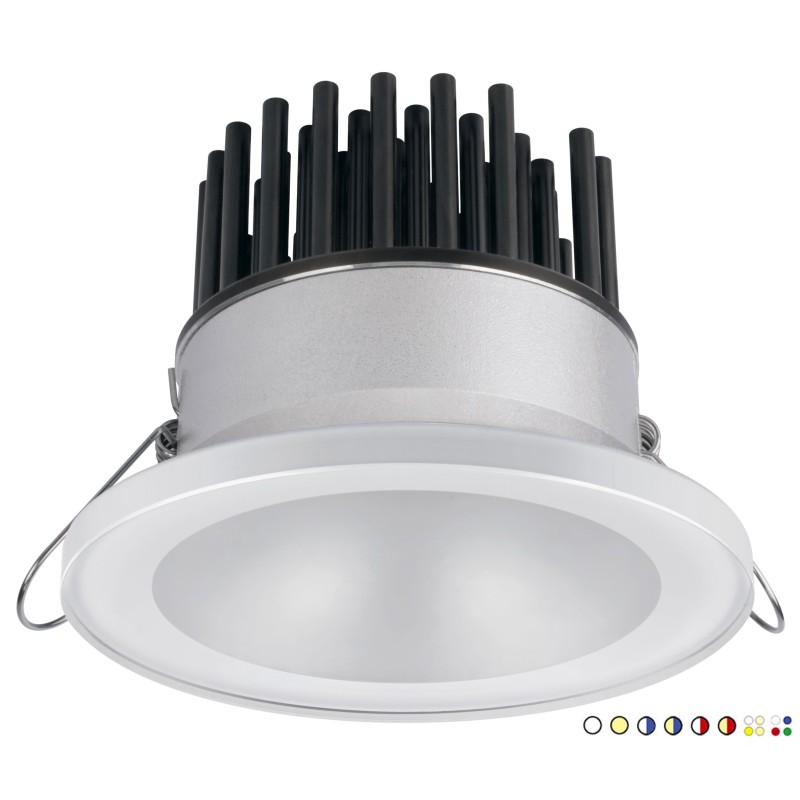

Quick ZEUS HP 12W 10-30V LED Downlight 675-895lm IP40 9.5mm Glass Q25300014BIN

Quick ZEUS HP 12W 10~30Vdc LED downlight 675-895lm IP40 DL102 Ø102mm made with 9.5mm tempered glass

Modern series of Power LED downlights.
The diffuser, made with tempered glass, gives the product a particularly refined look.
Round tempered glass frame - satin finish lens. Natural, warm, white/blue, white/red, tunable white, RGBW light.
Available in RGBW version and in TW (Tunable White) version, and it can be controlled with the QCC Systems by Quick.

Features:
Power type: Constant Voltage;
Light source: LED;
Supply: 10 ÷ 30 V;
Power consumption: 12 W;
Current consumption: 0.5 A @ 24V;
Average lifespan: 50.000 h;
Dimmable: Yes;
IP protection degree: 40;
Light colours: DAYLIGHT / WARM WHITE / DAYLIGHT-BLUE / W.WHITE-BLUE / DAYLIGHT-RED / W.WHITE-RED / TUNABLE WHITE / RGBW;

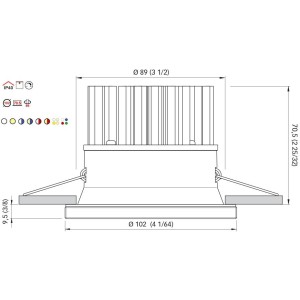

Frame material: 9.5 mm GLASS;
Square frame: Ø 102 4 1/64";
Recess: 70.5 mm 2 25/32";
Hole: Ø 89 mm 3 1/2";
Mounting: springs.

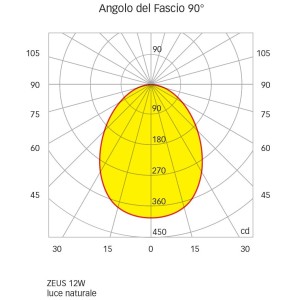

Photometric data:
Natural White 3800-4100K
- CRI: ≥ 80;
- Angle: 90°;
- Luminous flux: 675 lm;
- Illuminance - distance 1 m: Ø 1.98 m - 396.3 lux;
- Illuminance - distance 2 m: Ø 3.96 m - 99.1 lux;
- Illuminance - distance 3 m: Ø 5.94 m - 44 lux.

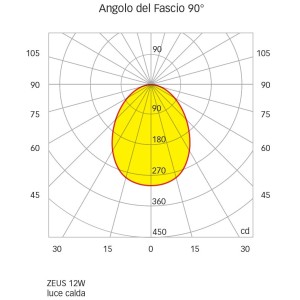

Warm White 2900-3100K
- CRI: ≥ 90;
- Angle: 90°;
- Luminous flux: 895 lm;
- Illuminance - distance 1 m: Ø 1.98 m - 298 lux;
- Illuminance - distance 2 m: Ø 3.96 m - 74.5 lux;
- Illuminance - distance 3 m: Ø 5.94 m - 33.1 lux.
NATURAL WHITE BLUE
- CRI: ≥ 80;
- Angle: 90°.
WARM WHITE BLUE
- CRI: ≥ 80;
- Angle: 90°.
NATURAL WHITE RED
- CRI: ≥ 80;
- Angle: 90°.
WARM WHITE RED
- CRI: ≥ 80;
- Angle: 90°.
RGBW
- CRI: ≥ 80;
- Angle: 90°;
TUNABLE WHITE 2700-5700 °K
- CRI: ≥ 80;
- Angle: 90°.
BI-COLOUR version: 12W white light +  courtesy light
LED Protection: Spike protected ± 500V.
Polarity sensitive: Yes.
Certifications: class III, CE.

Note: Please choose the desired colour from the drop down menu.

25300014BIN NATURAL WHITE
25300014BIC WARM WHITE
25300014RGBW RGBW
25300014BID DYNAMIC WHITE
25300014BNB NATURAL WHITE BLUE
25300014BNR NATURAL WHITE RED
25300014BCB WARM WHITE BLUE
25300014BCR WARM WHITE RED
