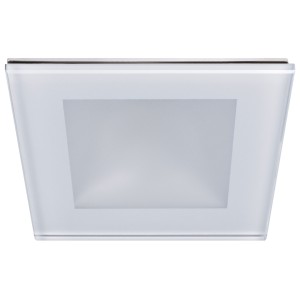

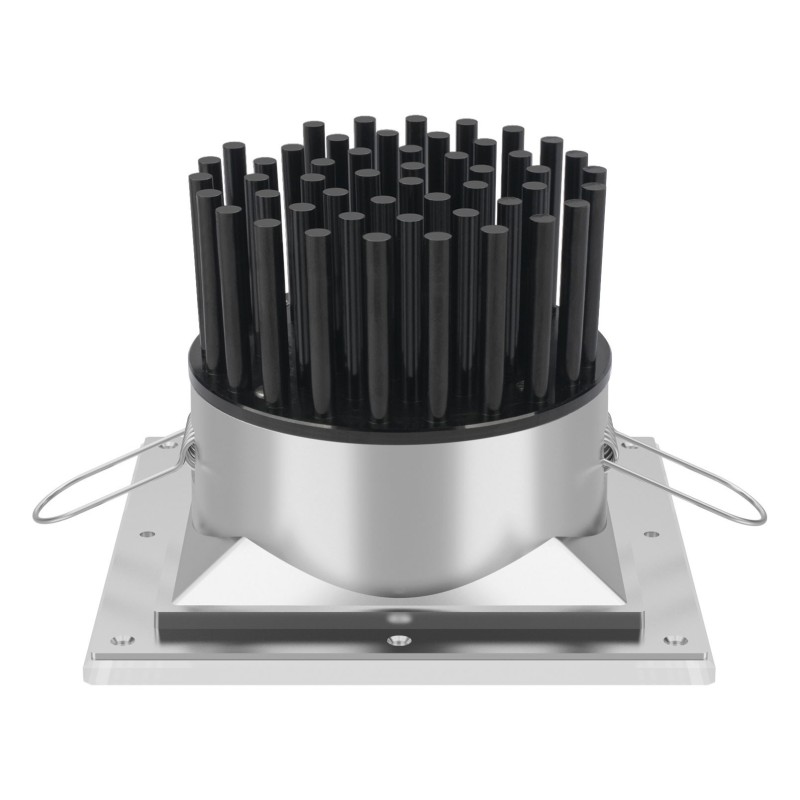

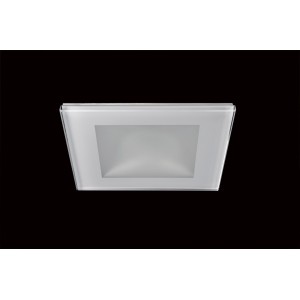

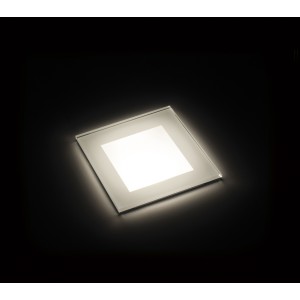

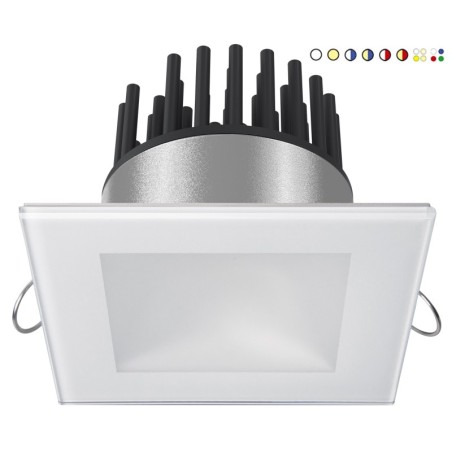

Quick DANAE LP 12W 10-30V LED Downlight 610-796lm IP40 5.5mm Glass Q25300017BIN

Quick DANAE LP 12W 10~30Vdc LED downlight 610-796lm IP40 DL111 made with 5.5mm tempered glass

Modern series of Power LED downlights.
The diffuser, made with tempered glass, gives the product a particularly refined look.
Square tempered glass frame - satin finish lens. Natural, warm, white/blue, white/red, tunable white, RGBW light.
Available in RGBW version and in TW (Tunable White) version, and it can be controlled with the QCC Systems by Quick.

Features:
Power type: Constant Voltage;
Light source: LED;
Supply: 10 ÷ 30 V;
Power consumption: 12 W;
Current consumption: 0.5 A @ 24V;
Average lifespan: 50.000 h;
Dimmable: Yes;
IP protection degree: 40;
Light colours: DAYLIGHT / WARM WHITE / DAYLIGHT-BLUE / W.WHITE-BLUE / DAYLIGHT-RED / W.WHITE-RED / TUNABLE WHITE / RGBW;

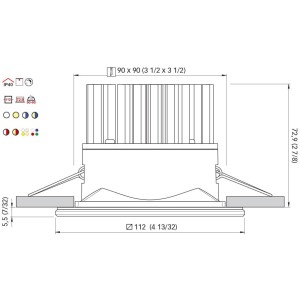

Frame material: 5.5 mm GLASS;
Square frame: Square 112 mm 4 13/32";
Recess: 72.9 mm 2 7/8";
Hole: Square 90 mm 3 1/2" x 3 1/2";
Mounting: springs.
Photometric data:

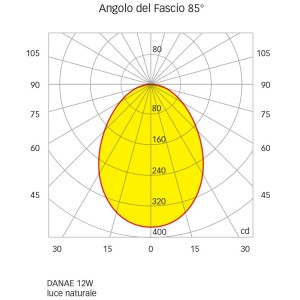

Natural White 3800-4100K
- CRI: ≥ 80;
- Angle: 85°;
- Luminous flux: 796 lm;
- Illuminance - distance 1 m: Ø 1.86 m - 372.5 lux;
- Illuminance - distance 2 m: Ø 3.72 m - 93.1 lux;
- Illuminance - distance 3 m: Ø 5.58 m - 41.4 lux.

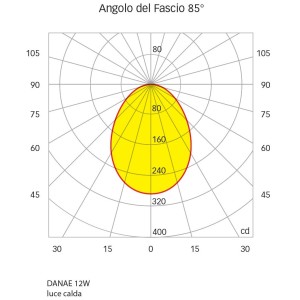

Warm White 2900-3100K
- CRI: ≥ 90;
- Angle: 85°;
- Luminous flux: 610 lm;
- Illuminance - distance 1 m: Ø 1.84 m - 287.9 lux;
- Illuminance - distance 2 m: Ø 3.67 m - 72 lux;
- Illuminance - distance 3 m: Ø 5.51 m - 32 lux.
NATURAL WHITE BLUE
- Angle: 85°.
WARM WHITE BLUE
- Angle: 85°.
NATURAL WHITE RED
- Angle: 85°.
WARM WHITE RED
- Angle: 85°.
RGBW
- Angle: 85°;
TUNABLE WHITE 2700-5700 °K
- Angle: 85°.
BI-COLOUR version: 12W white light +  courtesy light.
LED Protection: Spike protected ± 500V.
Polarity sensitive: Yes.
Certifications: class III, CE.

Note: Please choose the desired colour from the drop down menu.

25300017BIN NATURAL WHITE
25300017BIC WARM WHITE
25300017RGBW RGBW
25300017BID DYNAMIC WHITE
25300017BNB NATURAL WHITE BLUE
25300017BNR NATURAL WHITE RED
25300017BCB WARM WHITE BLUE
25300017BCR WARM WHITE RED
