Quick SUGAR HP 3W 10-30V LED Downlight 93-103lm IP65 9mm Glass CO40 Q25300026BIN

Quick SUGAR HP 3W 10~30Vdc LED downlight 93-103lm IP65 CO40 n satin finish aluminium and 9x40mm tempered glass

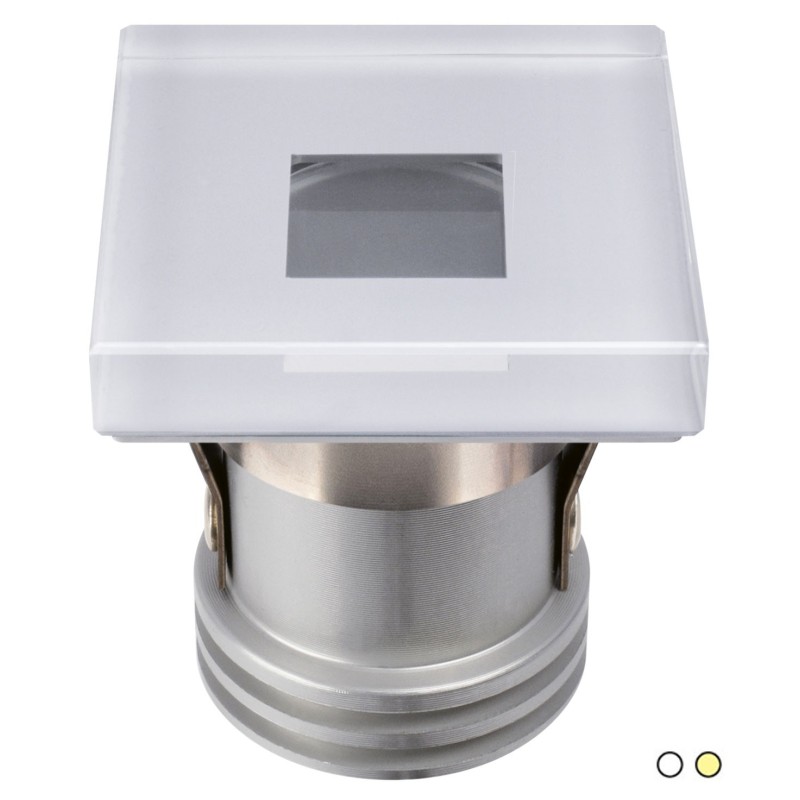

Square built-in courtesy light n satin finish aluminium and tempered glass.
The exclusive design, effective illumination and optimal chromatic yield make the product particularly elegant and refined.
Square tempered glass frame - satin finish lens. Natural, warm light.

Features:
Power type: Constant Voltage;
Light source: POWER LED;
Supply: 10 ÷ 30 V;
Power consumption: 3 W;
Current consumption: 0.125 A @ 24V;
Average lifespan: 50.000 h;
Dimmable: Yes;
IP protection degree: 65;
Light colours: DAYLIGHT / WARM WHITE;
Frame material: ALUM./SATIN FINISH;
Finishing: 9 mm TEMPERED GLASS;
Square frame: Square 40 mm (1 9/16");
Recess: 34.5 mm (1 23/64");
Hole: Ø30 mm (1 3/16");
Mounting: springs.
Photometric data:

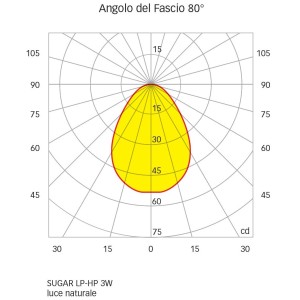

Natural White 3800-4100K
- CRI: ≥ 80;
- Angle: 80°;
- Luminous flux: 103 lm;
- Illuminance - distance 1 m: Ø 1.66 m - 53.2 lux;
- Illuminance - distance 2 m: Ø 3.33 m - 13.3 lux;
- Illuminance - distance 3 m: Ø 4.99 m - 5.9 lux.

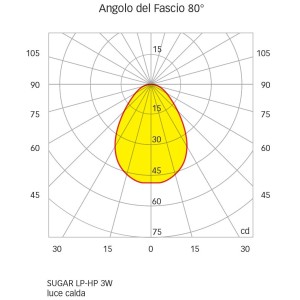

Warm White 2900-3100K
- CRI: ≥ 90;
- Angle: 80°;
- Luminous flux: 93 lm;
- Illuminance - distance 1 m: Ø 1.66 m - 48.3 lux;
- Illuminance - distance 2 m: Ø 3.33 m - 12.1 lux;
- Illuminance - distance 3 m: Ø 4.99 m - 5.4 lux.
LED Protection: Spike protected ± 500V.
Polarity sensitive: Yes.
Certifications: class III, CE.

Note: Please choose the desired colour from the drop down menu.

25300026BIN NATURAL WHITE
25300026BIC WARM WHITE
