Vitrifrigo Unità Refrigerante ND35 OR-S 12-24V + Giunti rapidi VT16005750

This article will be shipped within approximately 3/4 weeks; from date of order.

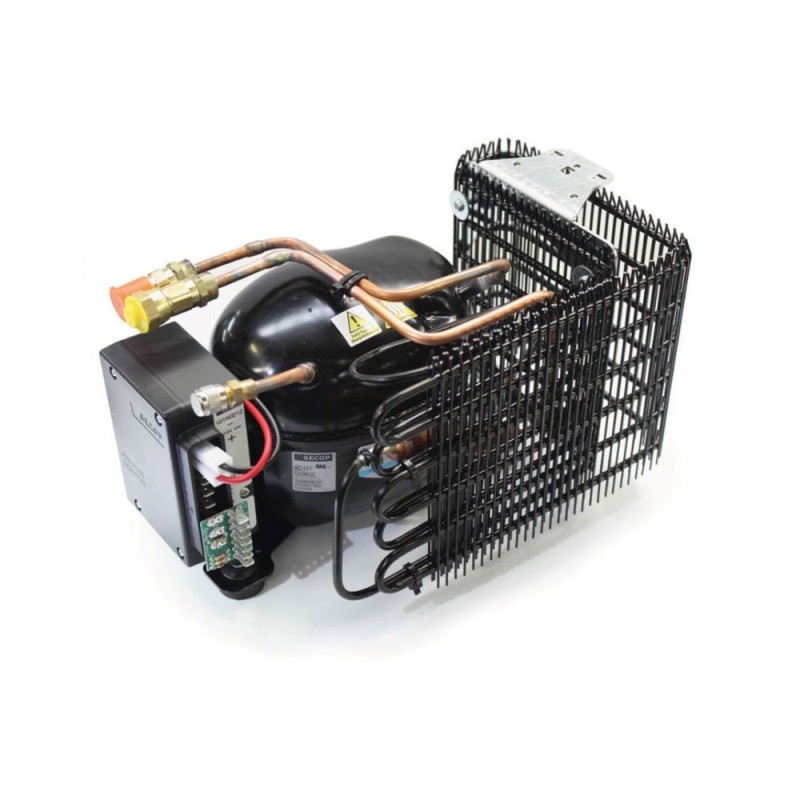

Vitrifrigo Danfoss ND35 OR-S Cooling Unit 12/24V

Danfoss 12-24V low energy pre-charged cooling unit. Low noise and functions even at 30° inclinations. Possibility to vary the compressor speed in relation to the volume to be cooled. Danfoss ND35F compressor with fully integrated control unit (power 12/24 V). Equipped with battery protection device which prevents a discharge over the minimum safety level.  Pre-charged unit with automatic switchover. Suitable for refrigerated compartments up to 300 litres and freezers up to 100 litres. All standard cooling units are DC powered and are provided with no refrigerant in the circuit optional units are available, upon request, with quick connect couplings and pre-charged with R134a refrigerant Depending on available power requirements, an AC/DC powered cooling unit is available (12-24/110-240V), using an AC/DC electronic module instead of the DC only module.
Technical data:
- Model: ND35 OR-S;
- Standard equipment: 12/24Vdc with quick couplings;
- Optional equipment: 12/24Vdc - 100/240Vac 50/60Hz with quick couplings;
- Width: 270 mm;
- Height: 170 mm;
- Depth: 160 mm.

The charts after the technical data describe the various types of condensation, also showing a combination guide to make a cooling unit, with a specific example.
Thermostat sold separately, see the related items.
