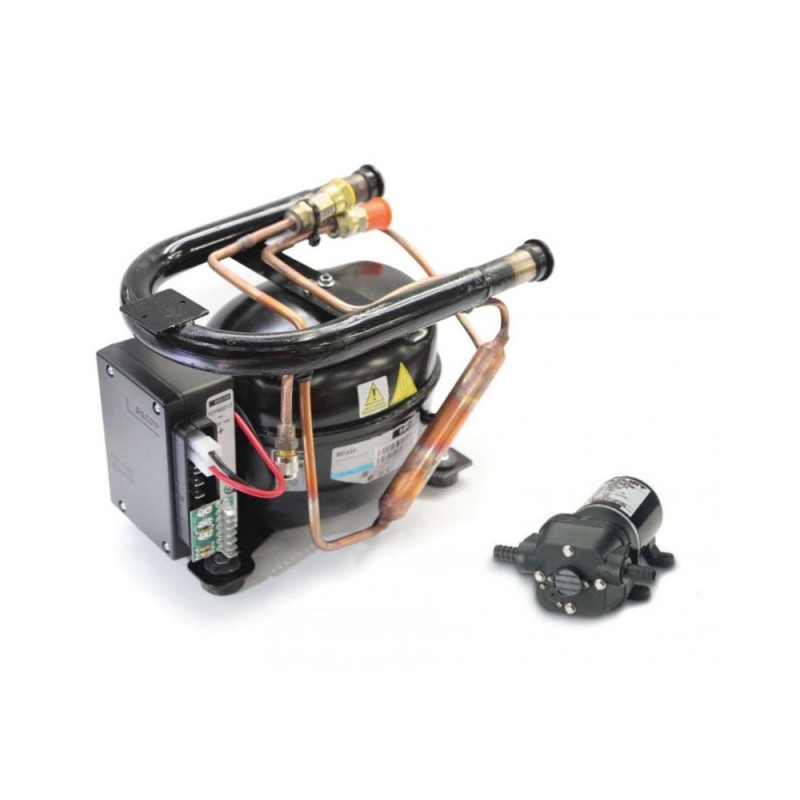

Vitrifrigo Danfoss ND50 H2O Cooling Unit 12/24V with quick couplings VT16005756

This article will be shipped within approximately 3/4 weeks; from date of order.

Vitrifrigo Danfoss ND50 H2O Cooling Unit 12/24V equipped with quick couplings. Water Cooling Unit - Secop BD50F Compressor - excluding pump

Danfoss 12-24V low energy pre-charged cooling unit. Low noise and functions even at 30° inclinations. Possibility to vary the compressor speed in relation to the volume to be cooled. Danfoss ND35F compressor with fully integrated control unit (power 12/24 V). Equipped with battery protection device which prevents a discharge over the minimum safety level.  Pre-charged unit with automatic switchover. Suitable for refrigerated compartments up to 300 litres and freezers up to 100 litres. All standard cooling units are DC powered and are provided with no refrigerant in the circuit optional units are available, upon request, with quick connect couplings and pre-charged with R134a refrigerant Depending on available power requirements, an AC/DC powered cooling unit is available (12-24/110-240V), using an AC/DC electronic module instead of the DC only module.
Technical data:
- Model: ND50 H2O;
- Cooling unit: water;
- Secop Compressor: BD50F;
- Standard equipment: 12/24Vdc without quick couplings (12/24Vdc - 100-240Vac 50/60Hz optional version not available);
- 24Vdc pump: optional;
- Pump water flow: 12,5 lt/min;
- Width: 245 mm;
- Height: 170 mm;
- Depth: 160 mm;
- Pump width: 208 mm;
- Pump height: 95 mm;
- Pump depth: 160 mm.

The charts after the technical data describe the various types of condensation, also showing a combination guide to make a cooling unit, with a specific example.
Thermostat sold separately, see the related items.
