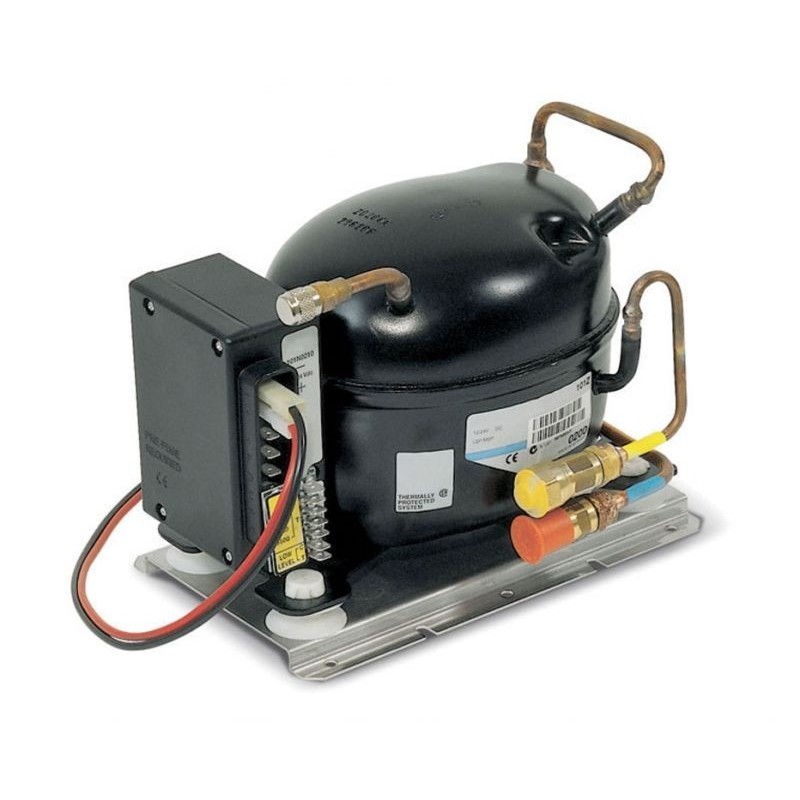

Vitrifrigo ND 35 CFS GR Cooling Unit for keel cooler condensation 12/24V VT16005757

This article will be shipped within approximately 3/4 weeks; from date of order.

Vitrifrigo ND 35 CFS GR Cooling Unit with BD 35 compressor for keel cooler 12/24V provided with quick couplings and stainless steel base

This model is suitable for keel cooler condensation. Cooling units can be used to create refrigerator compartments up to 300 It. and freezer compartments up to 100 It All standard cooling units are DC powered and are provided with no refrigerant in the circuit optional units are available, upon request, with quick connect couplings and pre-charged with R134a refrigerant Depending on available power requirements, an AC/DC powered cooling unit is available (12-24/110-240V), using an AC/DC electronic module instead of the DC only module. The copper pipe for connecting the ND35 CFS-ND50 CFS to the keel cooler is 160 cm. long. However, longer pipes are available (see the features and plus section).
Technical data:
- Model: ND 35 CFS GR;
- Compressor: BD 35;
- Standard equipment: 12/24Vdc with quick couplings;
- Optional equipment: 12/24Vdc - 100/240Vac 50/60Hz with quick couplings;
- Width: 285 mm;
- Height: 160 mm;
- Depth: 150 mm.
Features & Plus:
Lineset
available models:
- LINESET-1M-PT-Q (1 mt.)
- LINESET-3M-PT-Q (3 mt.)
- LINESET-4M-PT-Q (4 mt.)
optional for PT, S series and keel coolers.

This model is suitable for keel cooler condensation. Please read the data sheet in the download section.
The keel coller sold separately, see the related items.
