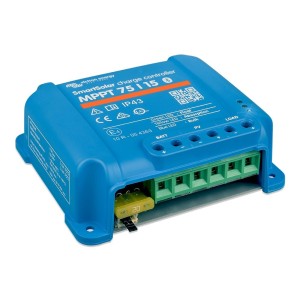

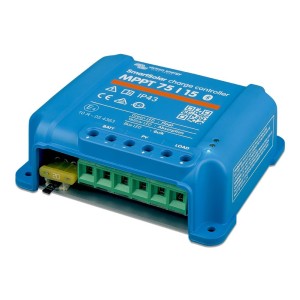

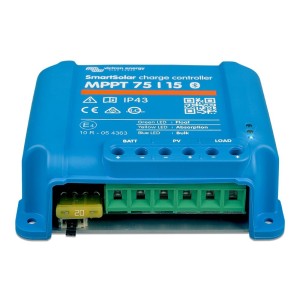

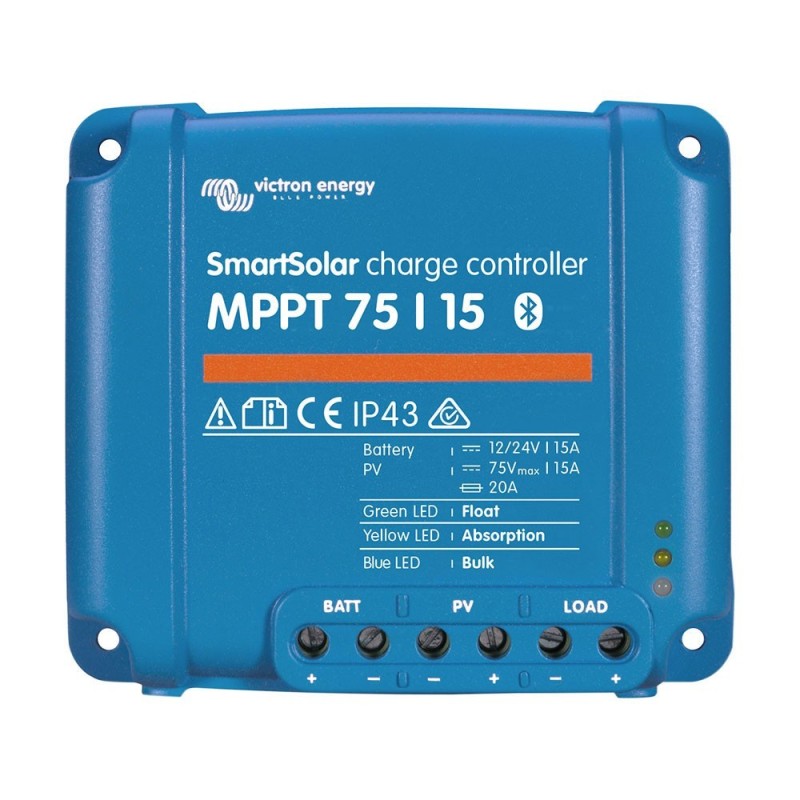

Victron Energy SmartSolar MPPT 75/15 15A 12/24V Solar Charge Controller UF21675D

Victron Energy SmartSolar MPPT 75/15 15A 12/24V Solar Charge Controller

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the  GlobalLink 520.

Load output
The intelligent Load output function prevents damage caused by running batteries 'flat'. You can configure the voltage at which SmartSolar disconnects a load - thereby preventing excessive drain on your batteries. And here's the clever bit: SmartSolar will attempt a 100% recharge every day. If it can't - during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery.

Technical Specifications:
- Battery voltage (auto select): 12/24V;
- Rated charging current: 15A;
- Nominal PV power, 12V/24V: 220/440W;
- Maximum PV open circuit voltage: 75V;
- Max PV short-circuit current 2: 15A;
- Automatic load disconnect: Yes;
- Peak efficiency: 98%;
- Self-consumption - load ON: 12 V: 19 mA 24 V: 16 mA;
- Self-consumption - load OFF: 12 V: 10 mA 24 V: 8 mA;
- Charging voltage - absorption: 14.4V/28.8V;
- Charging voltage - float: 13.8V/27.6V;
- Charging algorithm: Multi-phase adaptive;
- Temperature compensation: -16 mV/°C or -32 mV/°C;
- Max continuous charge current: 15A;
- Low voltage load disconnect: 11.1V / 22.2V / 44.4V or 11.8V / 23.6V / 47.2V or Battery Life algorithm;
- Low voltage load reconnect: 13.1V / 26.2V / 52.4V or 14V / 28V / 56V or Battery Life algorithm;
- Protection: Output short circuit/Over temperature;
- Operating temperature: From -30 to + 60°C (full rated output up to 40°C);
- Humidity: 95%, non-condensing;
- Color: Blue (RAL 5012);
- Power terminals: 6mmq/AWG10;
- Protection category: IP 43 (electronic components), IP22 (connection area);
- Weight: 0.5 kg;
- Size: 100x113x40 mm;
- Safety: EN/IEC 62109-1, UL 1741, CSA C22.2.

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
