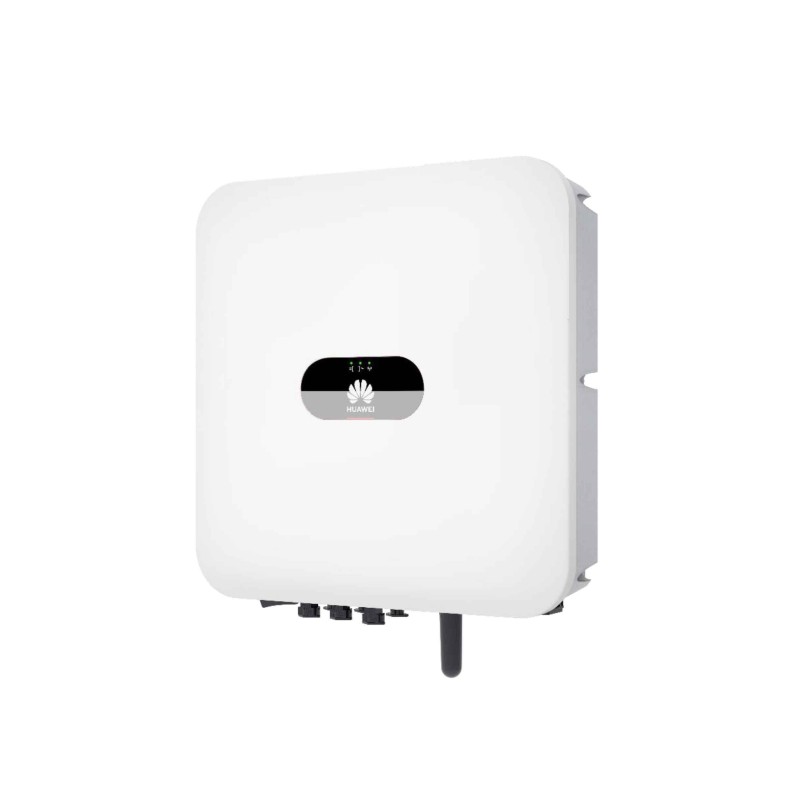

Huawei SUN2000-3KTL-L1 Hybrid Inverter 3kW 3300/4500W KRSUN2000

Huawei SUN2000-3KTL-L1 Hybrid Inverter 3kW 3300/4500W
Designed for battery and backup box connection (opt.)

Huawei Solar SUN2000-KTL-L1 New generation of Huawei inverters for residential systems.
Small, light and with an elegant design, the Huawei single-phase inverter will significantly enhance the efficiency of your home and maximize energy self-consumption. Battery Ready, optional Huawei Smart Luna 2000 or LG Chem RESU batteries.
- Powers available in AC: 2000W, 3000W, 3600W, 4000W, 4600W, 5000W and the new power available 6000W
- Very low weight and dimensions (dimensions 365X365X156 mm, weight about 12kg)
- Efficiency up to 98.4%
- Possibility to manage the new Huawei SUN2000 450P optimizers without using the safety box
- Integrated charge controller for lithium batteries (e.g. LG Resu or Powermate Luna Huawei)
- Possibility of managing external loads (through smart plug with ZigBee interface) to maximize self-consumption
- Huawei SW platform for integrated management of inverters, optimizers, batteries and smart plugs

Smart Energy Center (Single-phase)
- AI-based Active Arc Protection (Compatible with Optimizer SUN2000-450W-P)
- Battery Ready for direct Plug&Play, no extra devices and no Retrofit required
- A 5KTL inverter allows for a full AC output power of 5kW plus a full power battery charge of 5kW.
- High efficiency inverter topology, maximum efficiency of 98.4%

Security On
- Active AI-based arc flash protection
- Locate the location of the arc flash fault

Superior Yield
- Up to 30% more energy thanks to optimizers
- Double the power available for battery charging

Best Experience
- Universal optimizer for more efficient management
- Self-mapping of modules in just 5 sec

Double power available for the battery
- 5kW for the AC + output
- 5kW for battery recharging

Technical specifications
Efficiency
- Max. efficiency: 98.3%;
- European Weighted Efficiency: 97.3%
PV string input data
- Max. input power: 4500W;
- Max. input voltage: 600V;
- MPPT operating voltage range: 90-560V;
- Starting voltage: 100V;
- Rated input voltage: 360V;
- Max. input current for MPPT: 12.5A;
- Max. short circuit current: 18V;
- Number of MPPTs: 2;
- Max number of strings for MPPT: 1.
DC Battery input data
- Compatible battery: LG Chem RESU 7H_R / 10H_R;
   - Operating voltage range: 350 ～ 450 VDC;
   - Max operating current: 10A @7H_R / 15A @10H_R;
   - Maximum charge power: 3500W @7H_R / 5000W @10H_R;
   - Maximum discharge power @7H_R: 3300W;
   - Maximum discharge power @10H_R: 3300W;
- Compatible battery: HUAWEI Smart LUNA2000 ESS Battery 5kWh – 30kWh;
   - Operating voltage range: 350 ～ 560 VDC;
   - Max operating current: 15A;
   - Maximum charging power: 5000W;
   - Maximum discharge power: 3300W.
Network Output Data (on-grid)
- Connection to the mains: Single-phase;
- Rated Output Power: 3000W;
- Max. apparent power from mains: 3000 VA;
- Nominal output voltage: 220/230/240 Vac;
- Rated network frequency AC side: 50/60Hz;
- Max. AC side output current on mains: 15A;
- Adjustable power factor: 0.8 capaci... 0.8 induct;
- Max. total harmonic distortion: <3%.
AC side output data (Box-Bo backup, opt.)
- Max. apparent power: 5000 VA;
- Max. output current: 22.7A;
- Rated output voltage: 220V/230V;
- Adjustable power factor: 0.8 capac... 0.8 induct.
Protection
- PV insulation resistance detection: Yes;
- Residual current monitoring: Yes;
- DC Reverse Polarity Protection: Yes;
- Anti-isolation protection: Yes;
- AC side overcurrent protection: Yes;
- AC Side Short Circuit Protection: Yes;
- DC/AC side overvoltage protection: Yes, compatible with TYPE II protection class according to EN / IEC 61643-11;
- AFCI Arc Fault Protection: Yes;
- Reverse charging of the battery from the network: Yes
General data
- Operating temperature range: -25 ~ +60°C;
- Relative humidity: 0 ~ 100%;
- Max. operating altitude: 0 ~ 4,000m (decrease over 2,000m);
- Cooling method: Natural convection;
- Display, user interface: LED indicators; integrated WLAN + FusionSolar APP;
- Communication: RS485, WLAN via WLAN module integrated in the inverter Ethernet via Smart Dongle-WLAN-FE (optional); 4G / 3G / 2G via Smart Dongle-4G (optional);
- Weight: 12kg;
- Dimensions (W×H×D): 365x365x156 mm;
- Night power consumption: <2.5W;
- Ingress protection degree: IP65.
- Compatible optimizer: with DC MBUS SUN2000-450W-P
- Safety: EN/IEC 62109-1, EN/IEC 62109-2
- Network connection standards: G98, G99, EN 50549-1, CEI 0-21, VDE-AR-N-4105, AS 4777.2, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, IEC61727, IEC62116
