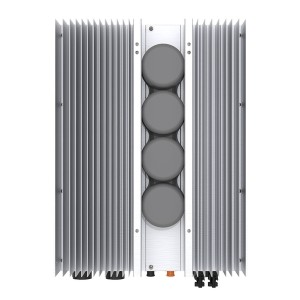

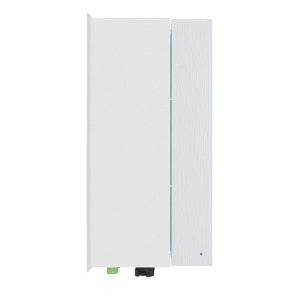

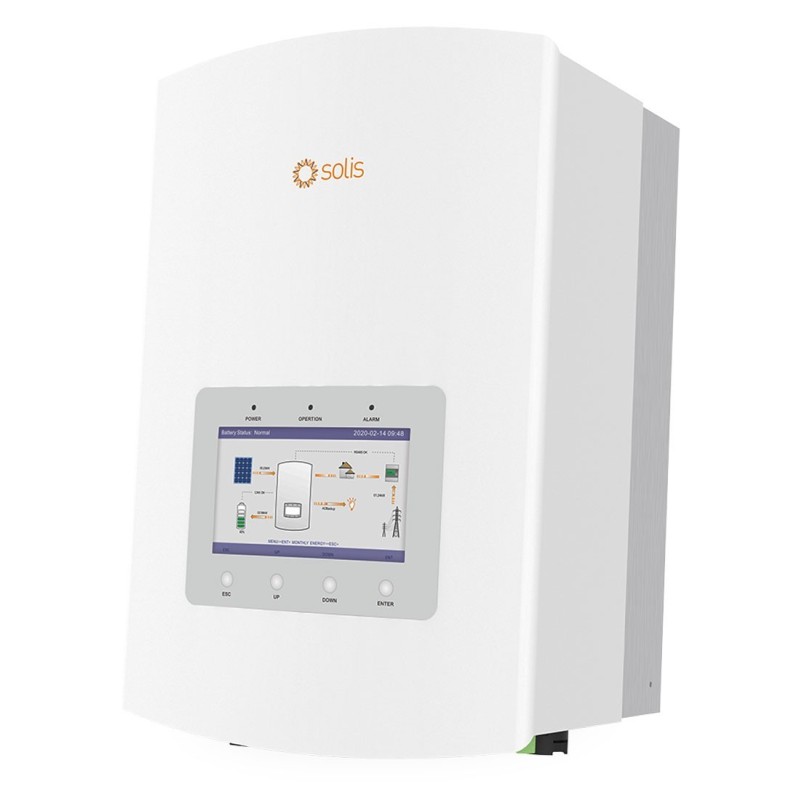

Solis S5-EH1P3.6K-L Single-phase Hybrid Inverter 3.6kW 5700W 2Mppt Backup

Solis S5-EH1P3.6K-L Single-phase Hybrid Inverter 3.6kW 5700W 2Mppt Backup

The S5-EH1P3.6K-L energy storage inverter is designed for residential PV energy storage system. 5kW backup power supports more critical loads. Backup switching time is less than 20 ms. Integrate multiple protections and fault monitoring to ensure the safety of batteries and equipment.

• Max. string input current 15A
• Uninterrupted power supply, 20ms reaction
• 5kW backup power to support more important loads
• With shifting and peak shaving capabilities friendly to grid
• Multiple working modes to make maximize selfconsumption, increase benefit
• Higher charge-discharge efficiency, improving the economic benefits
• AFCI protection, proactively reduces fire risk
• Compatible with lithium & lead-acid batteries, increased more choice in different markets
• Fanless design, long lifespan
• Intelligent EMS function, improving battery's reliability
• With high-frequency isolation technology, making system safer and long lifespan
• 24-hour fully intelligent energy management, Realtime grasp of PV plant status
• Remotely control & upgrade function, making digital power plant maintenance at your fingertips

Technical specifications
DC input
Recommended max. PV power: 5.7 kW;
Max. input voltage: 600 V;
Rated voltage: 330V;
Starting voltage: 120V;
MPPT voltage range: 90-520V;
Maximum input current: 15A / 15A;
Maximum short circuit current: 22.5A / 22.5A;
MPPT number: 2;
Max. input strings number: 2.
Battery
Battery type: lithium-ion/lead-acid;
Battery voltage range: 42 - 58V;
Battery capacity: 50 - 2000 Ah;
Maximum charge/discharge power: 3 kW;
Maximum charge/discharge current: 62.5 A;
Communication: CAN.
Output AC (Grid side)
Rated output power: 3.6 kW;
Max. apparent output power: 4 kVA;
Operation phase: 1/N/PE;
Rated grid voltage: 220V / 230V;
Rated grid frequency: 50-60 Hz;
Rated grid output current: 16.4A / 15.7A;
Maximum output current: 18.5A;
Power Factor: > 0.99 (0.8 leading - 0.8 lagging);
THDi: <2%.
Output AC (backup)
Rated output power: 3 kW;
Maximum apparent output power: 4.5 kVA, 10SEC;
Back-up switch time <20 ms;
Rated output voltage: 1/N/PE, 220V / 230V;
Rated frequency: 50Hz / 60Hz;
Rated output current: 14A/13.5A;
THDv (@linear load): <2%.
Input AC (Grid side)
Input voltage range: 187-265V;
Maximum input current: 25A / 23.5A;
Frequency range: 45-55Hz / 55-65Hz.
Efficiency
Maximum efficiency: 97.1%;
EU efficiency: 96.5%.
Protection
DC Reverse-Polarity Protection: Yes;
Short circuit protection: Yes;
Output over current protection: Yes;
Surge protection: DC Type II / AC Type II;
Ground fault monitoring: Yes;
Anti-islanding system: Yes;
Integrated AFCI (DC arc fault circuit protection): Yes (Activation required);
Protection class/over voltage category: I/II.
General data
Dimensions (WxHxD): 333x505x249 mm;
Weight: 18.3 kg;
Topology: High Frequency Isolation (for battery);
Operating ambient temperature range: -25 ~ +60°C;
Ingress protection: IP65;
Cooling concept: Natural convection;
Maximum operating altitude: 3000 m;
Grid connection standards: G98 or G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0 -21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA;
Safety/EMC standards: IEC/EN 62109-1/-2, EN 61000-6-2/-3.

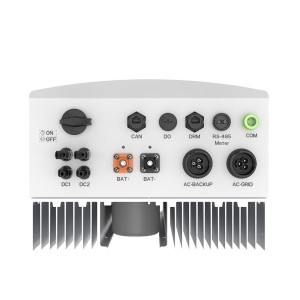

Features
DC connection: MC4 connector;
AC connection: Quick connect plug;
Display: 7" color LCD;
Communication: RS485, Optional: Wi-Fi, GPRS
