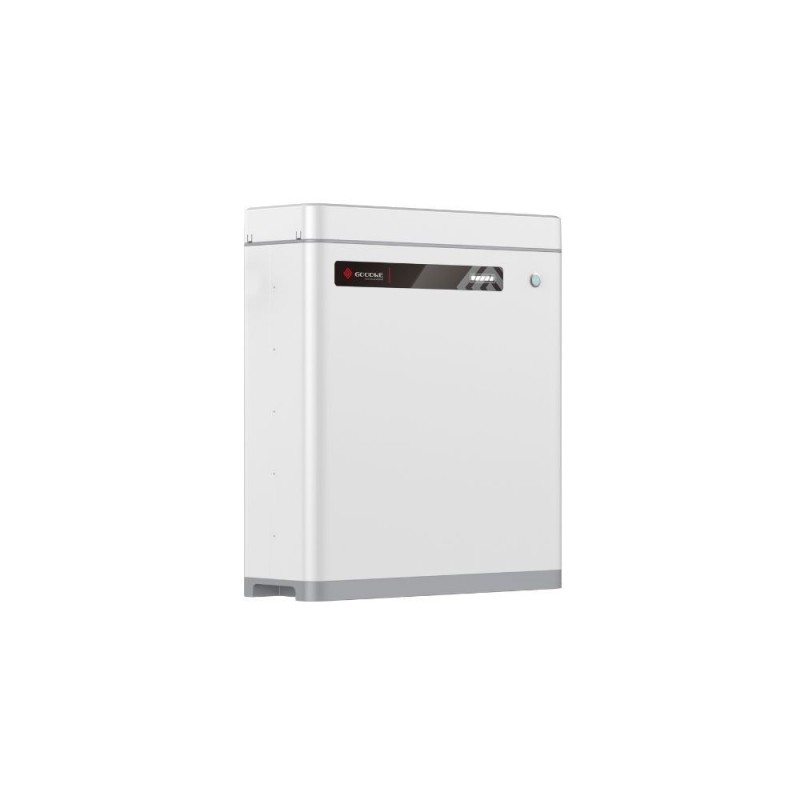

Goodwe Lynx Home GW-LX-U-5.5L 48V 5.4kWh Low Voltage Solar Battery

Goodwe Lynx Home GW-LX-U-5.5L 48V 5.4kWh Low Voltage Battery

Lynx Home U GoodWe series 48V 5.4kWh low voltage solar battery. Featuring lithium iron phosphate (LFP) battery technology that increases safety and ensures reliable performance. GoodWe’s Lynx Home U Series is a low voltage lithium battery especially designed for residential applications with superior performance, safe battery technology (LFP) and optimized user experience. The in-built auto recognition function and the plug & play design allow for easy installation. Compatible with GoodWe ES/EM/SBP inverters, the modular battery system is scalable between 5.4 and 32.4kWh.
Safe and practical low-voltage battery system for self-consumption and back-up of photovoltaic energy.
• Maximization of power backup
• Auto under-voltage reboot
• Maximum safety standards
• Smart and efficient operation
• Modern and compact design
• Reliable LFP battery cell
• High battery cycle stability
• Remote diagnosis and update

Automatic recognition of the number of batteries in parallel
Automatically identifies the presence of multiple storage units in parallel. No setting from the display is required.
Automatic restart under voltage
It can restart automatically when the battery enters self-protection mode due to undervoltage.

Technical data:
Rated Energy: 5.4kWh
Usable power: 4.8 kWh
Cell Type: LFP (LiFePO4)
Cell configuration: 16S1P
Rated Voltage: 51.2V
Operating Voltage Range: 48~57.6V
Max Continuous Discharge Current: 50A
Max Discharge Power: 2.88kW
Short circuit current: 2.323kA@1.0ms
Communication: CAN
Weight: 57kg
Dimensions (W×H×D): 505×570×175 mm
Operating Temperature: Charge: 0 ~ +50°C / Discharge: -10 ~ +50°C
Storage temperature: -20 ~ +45 °C (≤one month); 0 ~ +35 °C (≤one year)
Humidity: 0~95%
Maximum operating altitude: ≤2000 m
Degree of protection: IP65
Installation location: wall-mounted / ground-mounted
Round trip efficiency: 93.0%
Life cycle: ≥4000 @0.5C / 0.5C
Standards and Certifications:
- Safety: IEC62619, IEC 62040, CEC
- EMC: CE, RCM
- Transportation: UN38.3

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
