Ultimatron LiFePO4 300Ah 12.8V UBL-12-300-PRO Smart BMS Lithium Battery ULUBL12300

Ultimatron LiFePO4 300Ah 12.8V UBL-12-300-PRO Smart BMS Lithium Battery

Direct shipping from the Europe Warehouse, delivery in about 10-15 days throughout Europe.

The UBL-12-300-PRO 300 Ah - LiFePO4 from Ultimatron is a lithium iron phosphate battery that is characterized by a number of advantages. Ultimatron offers you high performance, high safety standards, a long service life and a continuous improvement in storage capacity. High performance even in extreme conditions. Deep and constant discharge and refill efficiency.

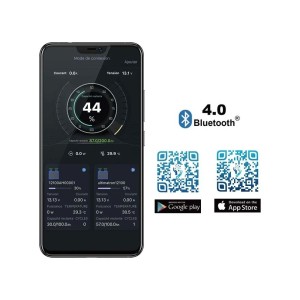

Furthermore, thanks to the BMS (Battery Management System) Smart integrated with Bluetooth 4.0 connection, it is possible to monitor the values in real time and the status of the battery directly from your smartphone thanks to the convenient dedicated App, for smartphone or tablet.
The fields of application of lithium batteries are diverse, especially for stationary or mobile use. In particular, mobile homes, solar boats, electric boats, electric scooters, golf cars or even electromobiles / wheelchairs and cleaning machines are increasingly equipped.
•    The safest technology, with no risk of fire or explosion
•    Long service life
•    High stability even under extreme loads
•    No memory effect, no need for full charge and discharge cycles
•    High performance even under extreme conditions
•    Deep and regular discharge and charge efficiency
•    Small size and low weight
•    Integrated battery management system (BMS)

Technical specifications:
- Model: UBL-12-300-PRO;
- Battery type: Lithium Iron Phosphate LiFePO4;
- Nominal voltage: 12.8V;
- Nominal capacity: 300 Ah;
- Capacity @ 60A: 300 min;
- Energy: 3840 Wh;
- Resistance: ≤15 mΩ @ 50% SOC;
- Self-discharge: <3% / month;
- Number of cycles: >6000 at 80% DoD;
- Recommended charging current: 90 A;
- Maximum charging current: 150 A;
- Recommended charging voltage: 14.6 V;
- Switch-off voltage of the charge: 14.6 V (2000 ms);
- Switch voltage back on: ≤13.8V;
- Equalizing voltage: >12.8V;
- Terminal type: M8;
- Discharge peak current: 600A (200-500ms);
- Discharge cut-off voltage: 10V (2000ms);
- Reconnection voltage: >11.2V;
- Short-circuit protection: 1000-2000A ± 400A (200-800μs);
- Maximum continuous discharge current: 200A;

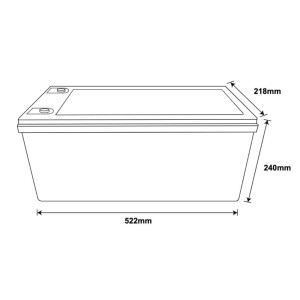

- Dimensions: 522x218x240 mm;
- Weight: 28.25 kg;
- Warranty: 5 years.

Conditions for series and parallel connection
The batteries must be of the same batch and of the same model. Before connecting the batteries in series or parallel, please charge them fully.

ATTENTION:
• Ultimatron LiFePO4 batteries can be connected both in series and in parallel in the maximum number of 4 units.
• Ultimatron batteries cannot be used as engine starter batteries.
If charged by alternators (campers and other vehicles) it is advisable to install a lithium battery charger.
• The BMS does not cut currents above 50A but the battery wears out above this value first.
