48V 4.8kW Photovoltaic Kit with 5.6kW Inverter & LiFePo4 2x5kW Batteries

Delivery times 15 days from the order

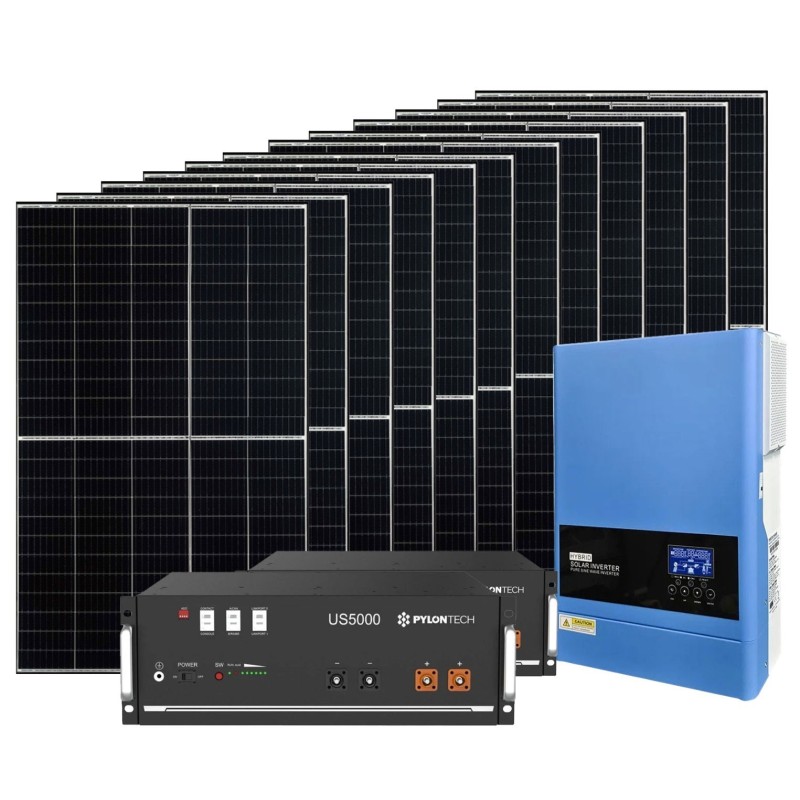

48V 4.8kW Photovoltaic Kit with 5.6kW Off Grid Solar Inverter

Solar Kit consist of 12 410W monocrystalline silicon photovoltaic panels, TopSolar 48V 6200VA 230V MPPT 120A 500Vdc Hybrid solar inverter, 2 LiFePo4 4.8kWh 48V Pylontech lithium batteries and kid cables for Off-Grid systems with grid support.
For more details, we recommend viewing the technical data sheets of each single component of the kit or asking our technicians for information.
The kit contains:
- n°12 410W monocrystalline silicon photovoltaic panels #N151030050303-8;
- n°1 TopSolar 48V 6200VA 230V MPPT 120A 500Vdc Hybrid solar inverter #N150422022024;
- n°2 Pylontech US5000C LiFePo4 4.8kWh 48V Lithium battery #OF013800;
- n°1 Cable Kit #OF012800.

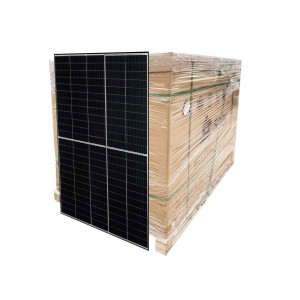

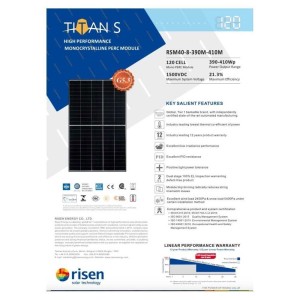

n°12 410W monocrystalline photovoltaic modules

The 410W solar module is a high-efficiency black-white frame monocrystalline solar module with half-cut technologies, which consists of halving the cells. Efficiency of up to 21.3% thanks to superior cell technology and cutting-edge production methods. This technology reduces thermal resistance and increases power output by 5 to 10 Wp. Self-cleaning glass. Powerful module with low irradiance even in low light conditions (morning or cloudy).
• High efficiency monocrystalline technology
• Low current density technology to effectively reduce internal power consumption.
• MBB and HC technology to reduce negative affect from yielding caused by micro cracks and shadows.
• High power output leads to lower BOS cost.
Global, Tier 1 bankable brand, with independently certified state-of-the-art automated manufacturing. Industry leading lowest thermal coefficient of power. Industry leading 12 years product warranty. Excellent low irradiance performance. Excellent PID resistance. Dual stage 100% EL inspection warranting defect-free product. Module Imp binning radically reduces stringmismatch losses. Excellent wind load 2400Pa and snow load 5400Pa under certain installation method.

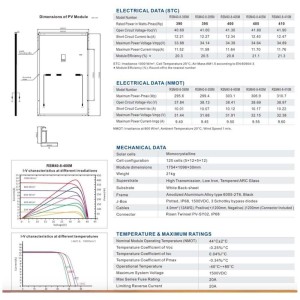

Specification:
Model: RSM120-8-410M-B-TW;
Nominal Power: 410 W;
Cell Type: Monocrystalline;
Number of cells in series: 120 (5x12+5x12);
Open-circuit Voltage (Voc): 41.90 V;
Maximum Power Voltage (Vmp): 34.89 V;
Short-circuit Current (Isc): 12.47 A;
Maximum Power Current (Imp): 11.76 A;
Max System Voltage: 1500 V DC;
Module Efficiency: 21.3 %;
Frame: anodizedaluminium alloy;

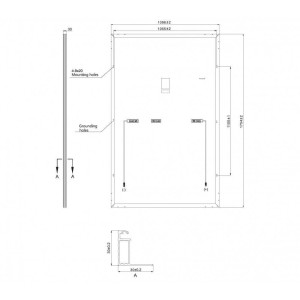

Dimension: 1754x1096x30 mm;
Weight: 21 kg.

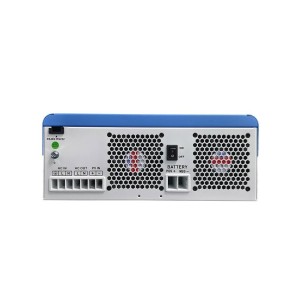

n1 - TopSolar 48V 6200VA 230V MPPT 120A 500Vdc Hybrid solar inverter

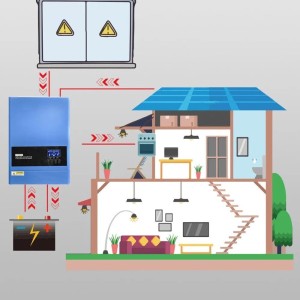

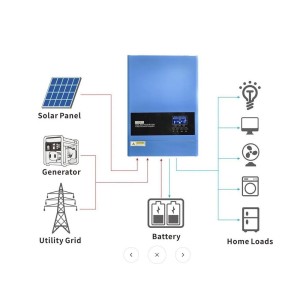

This inverter with display allows you to create an OFF GRID photovoltaic system of up to 6000w for recharging the 48V battery bank and using 230V alternating current with additional 230V AC input for emergency generator or network manager. The ALL in ONE inverter is the simplest system for creating an off-grid system with automatic exchange with the mains (or emergency generator), all components that usually make up a classic stand-alone photovoltaic system (charge regulator, inverter, control unit exchange and battery charger). With this inverter you will always be able to use renewable sources, therefore solar energy, energy stored in the battery and only in the event of the absence of the two renewables, the inverter automatically switches to the AC emergency input of the generator or network manager; This system allows you to have maximum savings on your bill or even completely eliminate the connection with the network operator.
Ideal for stand-alone or hybrid photovoltaic systems with AC mains or generator input.

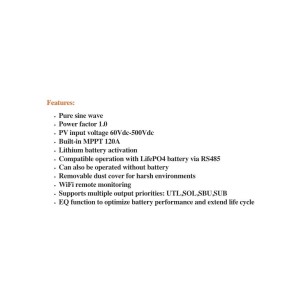

Main features
• Pure Sine Wave.
• Built-in Wi-Fi for mobile monitoring (Android/Iphone app available).
• Removable LCD control module with multiple communications.
• Supply the load from the grid or PV, even if the battery is not available.
• Configurable AC/PV output usage timer and priority.
• Integrated MPPT Solar Controller.
• High efficiency pure sine wave inverter (PF=1).
• Wide PV input range (120V DC - 500V DC) 120A MPPT SCC.
• Increase to 2X continuous power for 5 seconds for engine loads.
• Automatic switch-on in case of AC power failure.
• Overload and short circuit protection.
• 3-stage intelligent battery charger to optimize battery performance.
• Automatic restart while AC is recovering.

Technical characteristics
Inverter output
- Continuous Power: 6200VA/5500W;
- Peak Power: 12000VA/10000W;
- Wave Type: Pure Sine Wave;
- AC Voltage Regulation: ±5%;
- Inverter Efficiency (Peak): 90-93%;
- Transfer Time: 15ms (for Personal Computers), 20ms (for home loads).
AC input
- Voltage: 230 Vac;
- Selectable voltage range: 170∼280 Vac (for Personal Computer) 90∼280 Vac (for household loads);
- Frequency: 50Hz - 60Hz (automatic detection).
DC Input (Battery)
- Nominal voltage: 48 Vdc;
- Charging Voltage: 40-60 Vdc;
DC Solar Controller and Charger and AC
- Maximum photovoltaic power: 6400W;
- Optimal photovoltaic voltage for MPPT: 120 Vdc ~ 450 Vdc;
- Maximum open circuit photovoltaic voltage: 500 Vdc;
- Maximum charging current: 120A;
- Maximum efficiency: 98%.
Mechanical Specifications
- Measurements: 438x295x105h mm;
- Weight: 9 kg.
Working conditions
- Humidity: 5% to 95% relative humidity;
- Operating temperature: from 10 °C to +50 °C;
- Storage temperature: -15 °C to +60 °C.

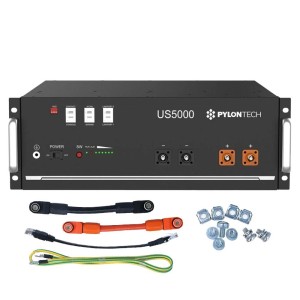

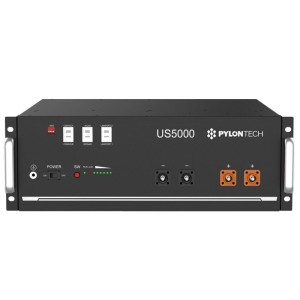

n2 - Pylontech US5000C LiFePo4 4.8kWh 48V Lithium batteries

The us5000c is a lithium storage system of the latest generation. The accumulator was specially developed to fully meet the high demands placed on a solar accumulator today. Maximum safety and a long service life are guaranteed even with regular deep discharge thanks to the latest technology.
The latest battery of the market-leading manufacturer with now 4.8kWh per module has again a battery management system (bms) built into each module and therefore offers a lot of security. Internally, the individual cells are thus monitored and balanced against overvoltage, overtemperature, deep discharge, etc. protected. The battery is compatible and certified with many available inverters.
Features
•    Extremely cycle resistant - over 6000 cycles at 95% DoD
•    More usable energy content than the previous model US5000
•    Lifetime over 10 years
•    Absolutely intrinsically safe lithium technology
•    Compatible with many available inverters
•    Automatic address setting when connected in multi-groups
•    High charging and discharging power possible
•    Integrated BMS
•    Very high storage density - low weight and compact design
•    Easy installation thanks to modular design
•    Absolutely maintenance-free and durable
•    Built-in soft-start function capable of reducing the current surge when the inverter is started from the battery
•    Dual active protection at BMS level
•    Supports WakeUp by 5-12V signal from rj45 port
•    Pre-charge function to protect ESS system from overvoltage function
Battery management system in each module
The battery management system integrated in each module protects each installed battery cell from harmful influences over the entire life of the module and effectively prevents premature failure.
Protection against:
•    Deep discharge and overcharge
•    overvoltage during charging
•    excessive currents during charging and discharging
•    over and under temperature
•    Short circuit and reverse polarity
Constant monitoring of the individual cell voltages (cell balance)
Modular design
The system has a modular design and can be configured precisely to the desired storage capacity by interconnecting several modules. Each storage module consists of a high-performance lithium iron phosphate (LiFePo4) accumulator and an integrated BMS.
High cycle life
The extremely high cycle life of the installed LiFePo4 cells make Pylontech us3000c modules the optimal storage solution for photovoltaic systems. Regardless of whether the solar system is grid-connected or stand-alone, the Pylontech storage system offers several advantages over typical lead-acid batteries and other lithium technologies.

Technical data
-    Battery Type: Lithium Iron Phosphate (LiFePo4);
-    Rated voltage: 48V;
-    Rated capacity: 4800 Wh;
-    Usable capacity (95% DoD): 4560 Wh;
-    Discharge voltage range: 44.5 - 53.5V;
-    Charging voltage range: 52.5 - 53.5V;
-    Max. Peak (discharge) charging current: 200A @15sec;
-    Max. (Discharge) charging current: 120A @15min;
-    Recommended charge/discharge current: 75A;
-    Communication: rs485, CAN;
-    Protection class: IP20;
-    Temperature range charge: 0°C - +50°C;
-    Temperature range discharge: -10°C - +50°C;
-    Temperature range storage: -20°C - +60°C;
-    Service life: over 10 years;
-    Cycle life: over 6000 at 95% DoD;
-    BMS / monitoring: integrated in each module;
-    Dimensions: 442x420x161 mm;
-    Weight: 38 kg;
-    Warranty: 10 years manufacturer warranty;
-    Certification: TÜV, ce, UN38.8.

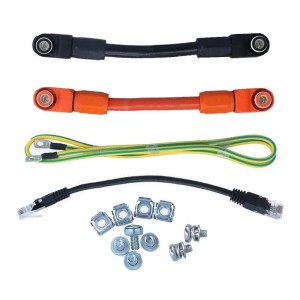

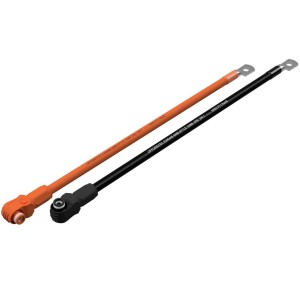

n1 - Cable set to connect the batteries of Pylontech with an inverter

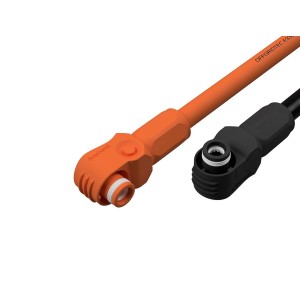

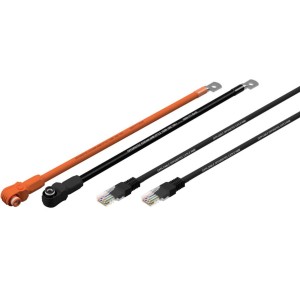

The Pylontech battery connection cable set includes 2 x 2 meter cables (plus/minus) with a cross section of 25mm² each and a CAN data cable with rj45 connectors on both sides. The set is needed to connect the batteries of Pylontech with an inverter.
Content
-    2m cable plus with m8 ring cable lug and amphenol connector (Pylontech).
-    2m cable minus with m8 ring cable lug and Amphenol connector (Pylontech).

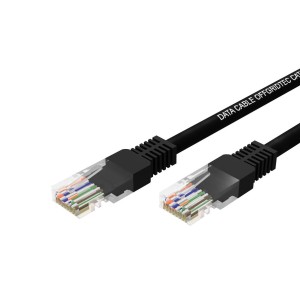

-    CAN data cable with rj45 connectors on both ends.
