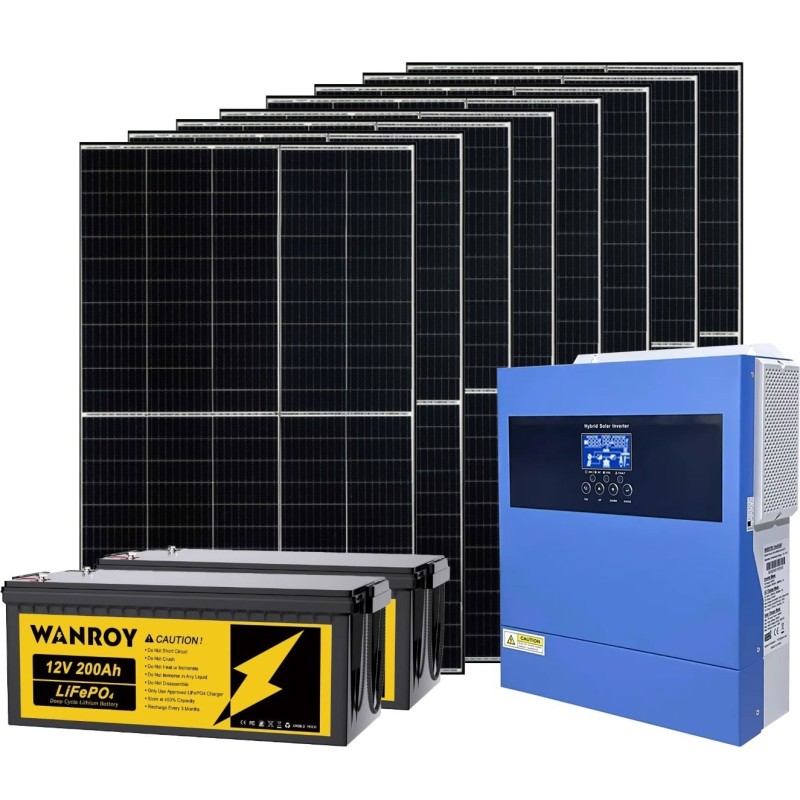

24V 3.28kW Photovoltaic Kit with 4kW Inverter 5120Wh LiFePO4 BatteryBattery

24V 3.28kW Photovoltaic Kit with 4kW Inverter 5120Wh LiFePO4 Battery

Solar Kit consist of 8 410W monocrystalline silicon photovoltaic panels, 24V 4000VA Off Grid hybrid inverter at 230V MPPT 100A 500Vdc and two 24V 100Ah LiFePO4 Batteries With 100A BMS 25,6V 2560Wh for Off-Grid systems with grid support.
For more details, we recommend viewing the technical data sheets of each single component of the kit or asking our technicians for information.
The kit contains:
- n°8 410W monocrystalline silicon photovoltaic panels #N151030050303-8 or superior.
- n°1 24V 4000VA Off Grid hybrid inverter at 230V MPPT 100A 500Vdc #N150422022025; (the color of the inverter can be blue or white depending on stock availability)
- n°2 24V 100Ah LiFePO4 Battery With 100A BMS 25,6V 2560Wh (the color of the batteries can be black or white depending on stock availability)
THE BATTERIES MUST BE CONNECTED IN PARALLEL TO EACH OTHER IN ORDER TO MAINTAIN THE VOLTAGE AT 25.6V FOR A TOTAL OF 200Ah

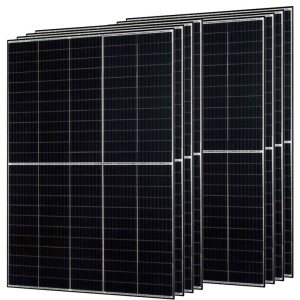

Set of 8 410W Monocrystalline photovoltaic solar panels

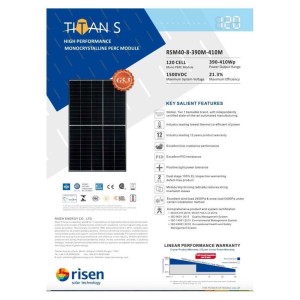

The 410W solar module is a high-efficiency black-white frame monocrystalline solar module with half-cut technologies, which consists of halving the cells. Efficiency of up to 21.3% thanks to superior cell technology and cutting-edge production methods. This technology reduces thermal resistance and increases power output by 5 to 10 Wp. Self-cleaning glass. Powerful module with low irradiance even in low light conditions (morning or cloudy).
• High efficiency monocrystalline technology
• Low current density technology to effectively reduce internal power consumption.
• MBB and HC technology to reduce negative affect from yielding caused by micro cracks and shadows.
• High power output leads to lower BOS cost.
Global, Tier 1 bankable brand, with independently certified state-of-the-art automated manufacturing. Industry leading lowest thermal coefficient of power. Industry leading 12 years product warranty. Excellent low irradiance performance. Excellent PID resistance. Dual stage 100% EL inspection warranting defect-free product. Module Imp binning radically reduces stringmismatch losses. Excellent wind load 2400Pa and snow load 5400Pa under certain installation method.

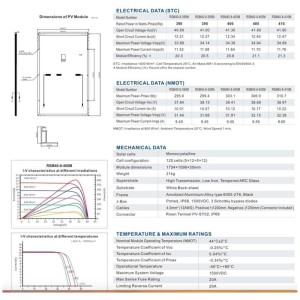

Specification:
Model: RSM120-8-410M-B-TW;
Nominal Power: 410 W;
Cell Type: Monocrystalline;
Number of cells in series: 120 (5x12+5x12);
Open-circuit Voltage (Voc): 41.90 V;
Maximum Power Voltage (Vmp): 34.89 V;
Short-circuit Current (Isc): 12.47 A;
Maximum Power Current (Imp): 11.76 A;
Max System Voltage: 1500 V DC;
Module Efficiency: 21.3 %;
Frame: anodizedaluminium alloy;

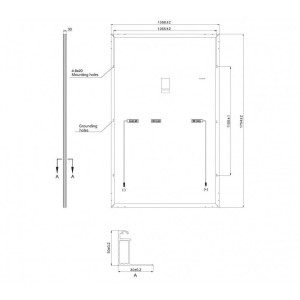

Dimension: 1754x1096x30 mm;
Weight: 21 kg.

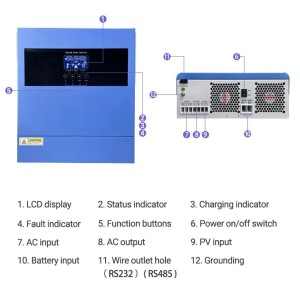

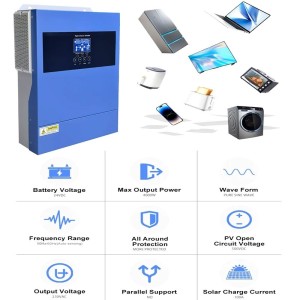

n°1 24V 4000VA Off Grid hybrid inverter at 230V MPPT 100A 500Vdc

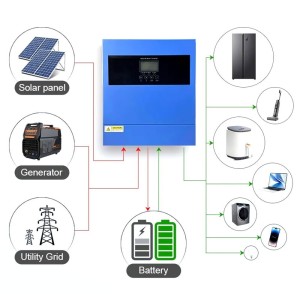

This inverter with display allows you to create an OFF GRID photovoltaic system of up to 4000W for recharging the 24V battery bank and using 230V alternating current with additional 230V AC input for emergency generator or network manager. The ALL in ONE inverter is the simplest system for creating an off-grid system with automatic exchange with the mains (or emergency generator), all components that usually make up a classic stand-alone photovoltaic system (charge regulator, inverter, control unit exchange and battery charger). With this inverter you will always be able to use renewable sources, therefore solar energy, energy stored in the battery and only in the event of the absence of the two renewables, the inverter automatically switches to the AC emergency input of the generator or network manager. This system allows you to have maximum savings on your bill or even completely eliminate the connection with the network operator.
Ideal for stand-alone or hybrid photovoltaic systems with AC mains or generator input.

• Pure sine wave inverter.
• Power factor 1.0.
• High PV input voltage range 60Vdc-500Vdc.
• Built-in Wi-Fi for mobile monitoring (Android/Iphone app available).
• Removable LCD control module with multiple communications.
• Built-in Max 100A MPPT solar charge.
• Lithium Battery Activation.
• Compatible work with LifePO4 Battery via RS485.
• Capable to work without battery.
• Detachable dust cover for harsh environment.
• Automatic switch-on in case of AC power failure.
• Overload and short circuit protection.
• Automatic restart while AC is recovering.
• Support multiple output priority: UTL, SOL, SBU, SUB.
• EQ function to optimize battery performance and extend lifecycle.

Technical characteristics:
INVERTER OUTPUT
- Rated Power: 4000 VA/3600 W;
- Surge Power: 7200 VA/6000 W;
- Waveform: Pure sine wave;
- AC Voltage Regulation (Batt.Mode): 230 VAC±5%;
- Inverter Efficiency (Peak): 90-93 %;
- Transfer Time: 15ms (For Personal Computers) 20ms(For Home Appliances).
AC INPUT
- Voltage: 230 VAC;
- Selectable Voltage Range: 170~280 VAC (For Personal Computers) 90~280VAC (For Home Appliances);
- Frequency Range: 50 Hz/60 Hz (Auto sensing).
BATTERY
- Nominal voltage: 24 VDC;
- Floating Charge Voltage: 27 VDC;
- Overcharge Protection: 33 VDC.
SOLAR CHARGER & AC CHARGER
- Solar charger type: MPPT;
- Maximum PV Array Power: 4000 W;
- MPPT Range @ Operating Voltage: 120~450 VDC;
- Maximum PV Array Open Circuit Voltage: 500 VDC;
- Maximum Solar Charge Current: 120 A;
- Maximum AC Charge Current: 100 A;
- Maximum Efficiency: 98%.
OTHER
- Humidity: 5% to 95% Relative Humidity (Non-condensing);
- Operating Temperature: 10 °C - 50 °C;
- Storage Temperature: -15 °C - 60 °C.
MECHANICAL SPECIFICATION
- Dimension, WxHxD: 119x313x422 mm;
- Net Weight: 10 kg.

n°2 24V 100Ah LiFePO4 Batteries With 100A BMS 25,6V 2560Wh

Made with the safest lithium iron phosphate battery technology, the LiFePO4 24V 100Ah Batteries offer exceptional durability and a longer life cycle. What is surprising is the possibility of carrying out over 3000 charge and discharge cycles, guaranteeing use for at least 10 years. Equipped with a battery management system (BMS), it is able to operate efficiently while ensuring safety and reliability.
Lighter, smaller, more powerful
The Batteries LiFePO4 24V 100Ah is lighter, more compact and more powerful! The slim design makes it light and practical, while its core holds long-lasting and powerful energy. With a high capacity of 100 amps/hour, it will accompany you freely without fearing energy exhaustion anymore.
The importance of the battery management system (BMS)
To protect your battery pack, ensure a stable energy supply and offer you excellent energy management, our Battery Management System (BMS) is here to support you. From everyday needs to special situations, our BMS offers comprehensive protection for lithium battery packs, ensuring a stable case for your power needs.
•    Integrated battery management system
•    After 3000 cycles with 80% DOD, 80% capacity still remains
•    Lifespan of at least 15 years without the need for maintenance
•    Fully-fledged replacement for lead-acid batteries
•    Eco-friendly, lead-free, acid-free
•    Compatible with Victron Energy, Growatt, Green Cell, etc.
Smart long-term solution
Despite the higher price, LiFePo4 batteries are characterized by much lower operating costs, which means that the purchase pays for itself very quickly. Over its lifetime, a LiFePo4 battery costs more than 100% less than a standard AGM battery, making it a worthwhile investment and a smart long-term solution.
Electrical performance:
Battery technology: LiFePO4 (Lithium Iron Phosphate)
Nominal tension: 12 V
Capacity (Ah): 200 Ah
Maximum continuous load power: 1280 W
Nominal energy: 2560 Wh
Capacity: 100%
Cycle time: >3000 cycles
Lifespan: >15 years
Charge/Discharge performance:
Charging voltage: 14.4 V (maximum 14.6 V)
Maximum continuous charge/discharge current: 100 A
Peak discharge current @10S: 250 A
Performance in temperature:
Discharge Temperature: -20 ~ +60 °C
Charge Temperature: 0 ~ +45 °C
Storage Temperature: -5 ~ +35 °C
High Temperature Cut-Off: 65 °C
Mechanical performance:
Terminal Type: M8
Terminal Torque: 80 ~ 100 in-lbs (9 ~ 11 N-m)
Terminal pole: F12 (M8 internal thread)
Case Material: ABS
Enclosure Protection: IP65
Dimension (LxWxH): 500x240x220 mm
Weight: 23 kg.

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
