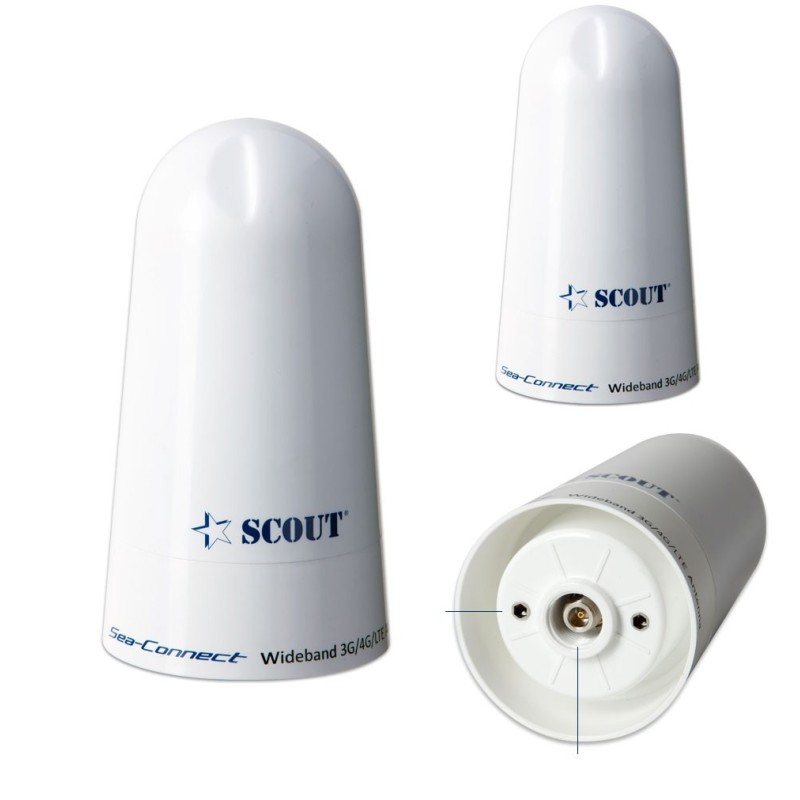

Scout Sea-Connect wideband antenna 4dBi 3G/4G/LTE Ø11cm h20cm 66501066

Scout Sea-Connect wideband antenna 4dBi 3G/4G/LTE Ø11cm

The new Scout Sea-Connect wideband antenna provides coverage for 3G/4G/LTE and WLAN systems in a compact and waterproof design, ideal for any type of boat. Excellent performance with VSWR less than 1.5:1 in all 3G and 4G bands.
With all these properties the Sea-Connect is the perfect external antenna to link to a 3G/4G router on board, enabling internet connectivity on board also during the navigation on the open sea.
The frequencies supported are 698-2700 MHz covering all major bands: 4G, 3G, AWS, LTE, CLR, DCS, IMT, ISM, PCS, WCDMA, WCS, WiFi, WiMax, Cellular.
Easy to install both on standard 1″ x 14 threaded mount model PA-40 and on deck  as a permanent, through-hole mount solution (onto a non-metal surface or enclosure). The UV stable casing provides outstanding corrosion resistance in the harshest environments. The antenna terminates in an N type female connector.
Suggested coaxial cable for the installation: LMR-400 or similar.
•    Full Band (698 – 2700 MHz).
•    Excellent performance in all 3G and 4G bands.
•    Designed for marine use.
•    Omni-directional antenna 4 dBi Gain.
•    Easy to install (mount/deck).
Technical specifications:
- Frequency Range: 698-2700 Mhz;
- V.S.W.R.: ≤1.7;
- Polarization: Vertical;
- Gain: 4 dBi;
- Horizontal Beamwidth: 360°;
- Input impedance: 50 ohm;
- Max power: 100W;
- Antenna diameter: 11 cm (4″);
- DC Ground: Yes;
- Connector: N female;
- Height: 20 cm.
