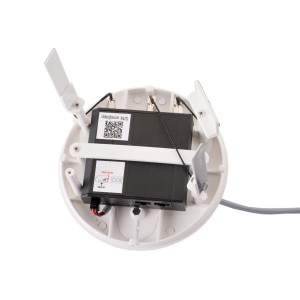

Glomex Webboat 4G Wi-Fi Lite & GSM GPRS EDGE 3G 4G LTE Antenna 12-24V MT5637062

Glomex Webboat 4G Wi-Fi Lite 12-24V & GSM/GPRS/EDGE/3G/4G/LTE Antenna

The weBBoat 4G Lite is the new compact version of COASTAL INTERNET 4G/3G/Wi-Fi SINGLE SIM integrated system to surf the web. The system provides the perfect balance between small dimensions and great performance, ensuring stable and high speed connections up to approximately 15 miles from the coast.The weBBoat 4G Lite is equipped with two 4G/3G diversity antenna, one diversity Wi-Fi antennas, an internal single SIM card slot, and a super-fast 3G/4G/Wi-Fi router that creates a hot spot on the vessel.Up to 24 different devices can be used simultaneously without anydegradation to the signal or performance.The units built-in advanced switching software allows the user to save money on costly roaming and overage charges by automatically switching to Wi-Fi when available.The weBBoat 4G Lite is a true Plug & Play device that requires minimal setup and only one power lead for the antenna which operates from 10-30 Vdc.Most importantly, all functions of the unit are controlled by the app which is available for both Android and iOS devices.

Mobile data and WiFi made easy
With the GLOMEX weBBoat® 4G Lite antenna, you can browse the Internet quickly and easily without cumbersome installations. Insert your SIM card and connect the antenna to a 10-30V DC voltage. After short configuration via the GLOMEX weBBoat® app, you will be ready to start surfing the Internet.

Easy connection

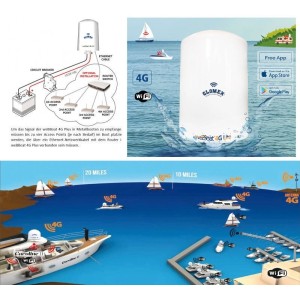

Connect the GLOMEX weBBoat® to a port WiFi up to a distance of about 15 nautical miles (depending on environment / installation). Share this connection via the weBBoat® antenna with up to 24 devices. If no Wi-Fi hotspot is available, use your providers' 4G (LTE) or 3G mobile network (SIM card optional), depending on availability. The GLOMEX weBBoat® is also suitable for use on large yachts or on ships where metal hulls and superstructures can hinder reception. In these cases, the access point in the antenna can be routed using an LAN cable to the boat's interior. In addition to the weBBoat® WiFi hotspot, four wired ethernet ports are also available.

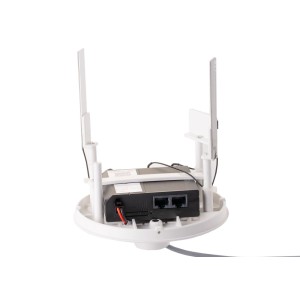

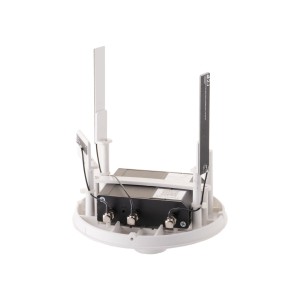

WeBBoat 4G PLUS is equipped with:
• SINGLE SIM - internal slot
•  New free weBBoat Lite App with AUTOMATIC FIRMWARE UPDATE to always have the best performance without any need to contact technicians;
•  2 Diversity High-gain and wide band 4G antennas covering MORE  INTERNET BANDS
•  New 1 powerful Wi-Fi antennas - double Wi-Fi range - to receive the external Wi-Fi signal, such as from the marina, restaurant..;
• 1 4G/3G/WiFi built-in faster fuctions router specifically developed for the marine environment to have a personal and safe Wi-Fi network on the boat, that can be used by up to 32 different devices (iPhones, Smartphones, Tablets and PCs);
•  Automatic switch from 4G to Wi-Fi to limit 4G fees.

Easy installation
For optimum reception, place the antenna at about the height of the spreader (max 8-10m from the deck). On a motorboat we recommend mounting the weBBoat® on the gear tray.

Electrical connection - Plug'n Play

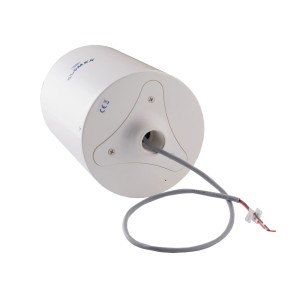

Installing the GLOMEX weBBoat® antenna is as easy as it is to mount.  Simply supply the antenna with a 10-30 DC voltage for operation.
Power supply requires a 2-core cable. The antenna can be switched off through installing an optional switch.

Intuitive configuration
Set up the GLOMEX weBBoat® easily with the free GLOMEX weBBoat® App. The app is available for Android and Apple devices.
Use the app to manage existing WiFi networks or connect to new networks in the area.
The GLOMEX weBBoat® app can be used to configure your own weBBoat® hotspot and manage your connected devices.

TECHNICAL SPECIFICATIONS

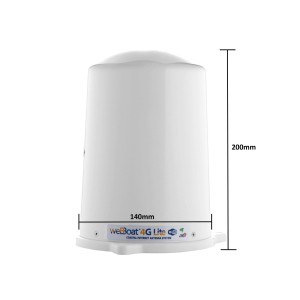

•    Dimensions (ØxH): 140 x 200 mm
•    Weight: 0.9 kg
•    Power supply: 10-30V DC
•    Ø Power consumption: approx. 200 mA
•    Minimum operating voltage: 9V DC
•    Automatically switch between mobile data and WiFi connection
•    Android and iOS app to configure the antenna
•    weBBoat® WiFi Hotspot for up to 24 users
•    High-performance diversity antennas for mobile reception (4G / LTE, 3G, UMTS, EDGE, GSM & GPRS)
•    Four Ethernet interfaces (to the internal hotspot)
•    Single SIM card slot
•    Integrated openVPN and dynamic DNS
•    4G Backup WAN feature
•    SMS-Reboot function
•    LTE up to 70 Mb / s and 50mb / s for upload (depends on the distance of the transmitter and the corresponding data plan)
•    DC HSPA +, up to 42 Mb / s download and 5.76 Mb / s upload
•    Quadband UMTS, GSM and LTE
•    WiFi standards IEEE 802.11n, IEEE802.11g and IEEE 802.11b
•    LAN standard IEEE 802.3 and IEEE 802.3u.

DATA
Mode LTE: DL 150 Mbps - 50 Mbps UL
DC-HSPA+: DL 42 Mbps - 5.76 Mbps UL
IEEE 802.11b/g/n WiFi standards (2.4 GHz): speed up to 72 Mbps in DL
1 x LAN 10/100Mbps Ethernet port
1 x WAN 10/100Mbps Ethernet port
2 LTE Diversity (high) performance antennas
1 x Wi-Fi antenna
Android and iOS App for an easy control
Easy installation require only power supply connection 12/24V
UV resistant Dome

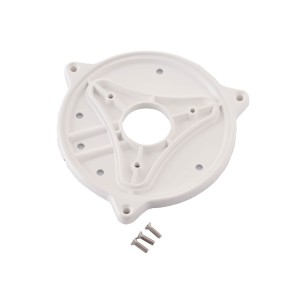

Complete with 1"1/4 mount base.
