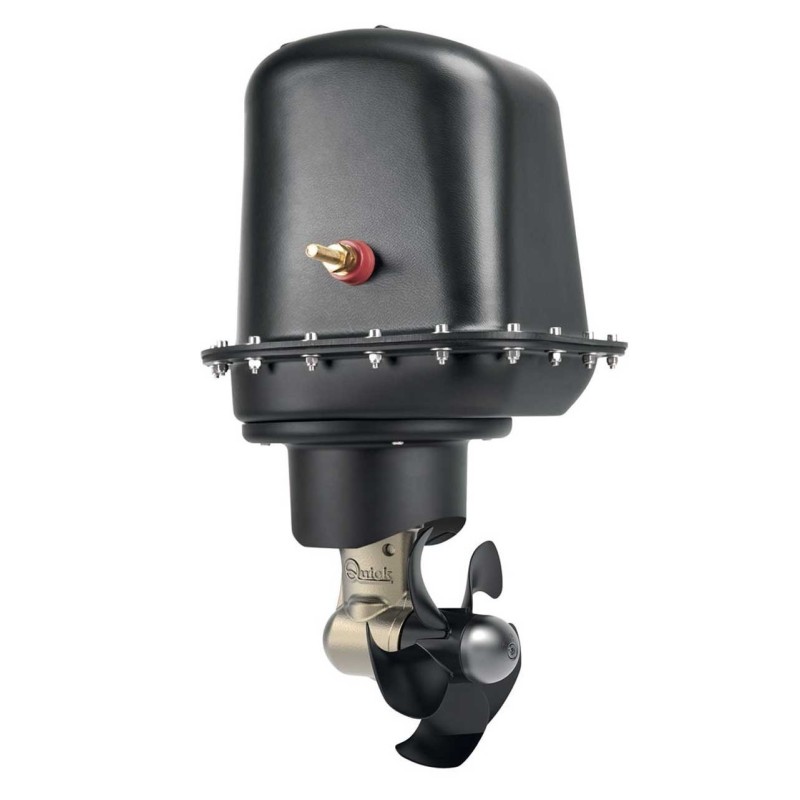

Quick BTQ 185-55 C 12V Single Propeller DC Thruster Bow/Stern 3000W 55kgf with Case

Quick BTQ 185-55 C 12V Single Propeller DC Thruster Bow/Stern 3000W 55kgf with protection case

Quick BTQ 185-55 C 12V Single DC Thruster with protection case, suitable for both bow and stern installations.
It delivers 3000 W motor power with a thrust of 55 kgf, ensuring reliable performance and precise maneuvering.
Supplied without a cowling, it features compact dimensions (359 x 185 x 123 mm) and a weight of only 19.1 kg, making it ideal for installation on boats from 8 to 15 meters.
Designed to provide safe and accurate maneuvers even in tight spaces, it is built with high-quality materials that guarantee strength, efficiency, and long service life. An ideal device to handle even the most demanding marine conditions with confidence.

Key Features
Single propeller in high-strength composite material.
Recommended for boats from 8 to 15 m (26 – 49 ft).
Bronze gearbox with hardened and ground bevel gears for maximum efficiency.
Standard Aluminum anode, independent from the gearbox and easily replaceable.
Quick elastic coupling: optimizes alignment between motor and gearbox, reduces vibrations, and protects the system.

Performance & Reliability
Gearbox designed to ensure the same performance of the propeller in both directions.
Minimal maintenance: high-strength components ensure lifetime oil seal integrity.
Hydrodynamic bronze leg profile designed to minimize turbulence and increase efficiency.
4-blade composite propeller, secured with stainless steel self-locking nuts: maximum thrust with reduced power consumption.

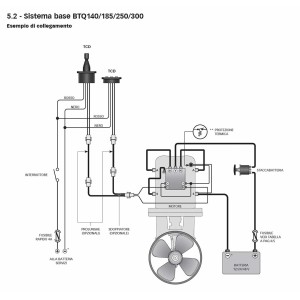

Electrical connections equipped with quick, safe, and practical connectors.

Motor & Safety
Motor built with next-generation materials to deliver consistent performance even under demanding conditions.
Overheating protection ensured by an integrated microprocessor.
Support flange in hard-anodized aluminum for superior corrosion resistance and long service life.

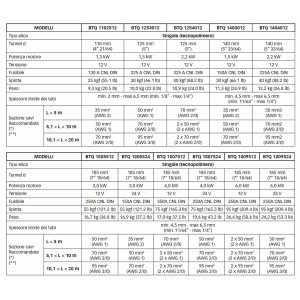

Technical data:
Model: BTQ 185-55 C;
Propulsion system: Single propeller;
Protection: IP66;
Ø Tunnel: 185 mm;
Voltage: 12 V;
Motor power: 3 kW;
Thrust: 55 Kgf;
Boat length*: 8-15 m;
Weight: 19.1 kg;

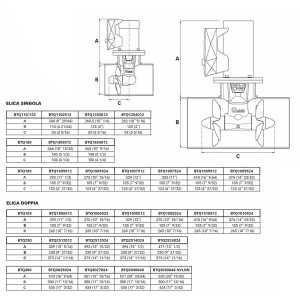

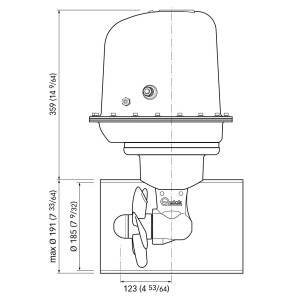

Dimensions: A= 359 mm, B= 185 mm, C= 123 mm.

(*): Indications may vary according to the boat type.

⚠️ Attention:
This item is assembled directly by the manufacturer at the time of order. Delivery takes approximately 10–15 working days; during July, August, and December, slight delays may occur. We will always keep you updated on the status of your order.
