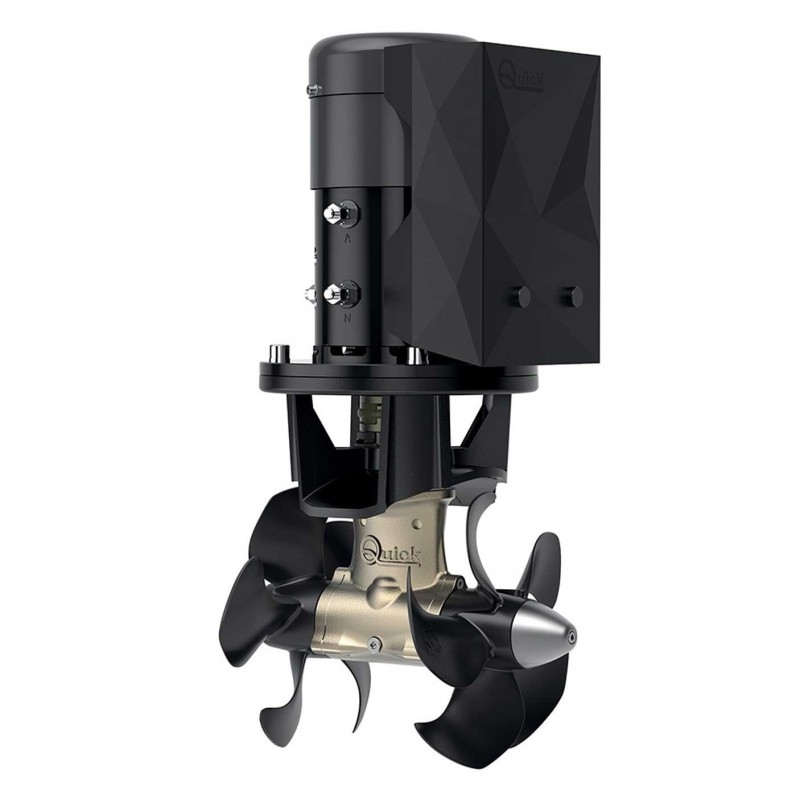

Quick BTQ 250-120 12V 6500W 120kgf Double Propeller DC Thruster

Quick BTQ 250-120 12V 6500W 120kgf Double Propeller DC Thruster

Quick BTQ 250-120 12V Double DC Thruster, suitable for both bow and stern installations.
It delivers 6500 W motor power with a thrust of 120 kgf, ensuring reliable performance and precise maneuvering.
Supplied without a cowling, it features compact dimensions (390x250x372 mm) and a weight of only 35.5 kg, making it ideal for installation on boats from 12 to 17 meters.
Designed to provide safe and accurate maneuvers even in tight spaces, it is built with high-quality materials that guarantee strength, efficiency, and long service life. An ideal device to handle even the most demanding marine conditions with confidence.

Key Features
Double propeller in high-strength composite material.
Recommended for boats from 12 to 17 m (39-55 ft).
Bronze gearbox with hardened and ground bevel gears for maximum efficiency.
Standard Aluminum anode, independent from the gearbox and easily replaceable.
Quick elastic coupling: optimizes alignment between motor and gearbox, reduces vibrations, and protects the system.

Performance & Reliability
Gearbox designed to ensure the same performance of the propeller in both directions.
Minimal maintenance: high-strength components ensure lifetime oil seal integrity.
Hydrodynamic bronze leg profile designed to minimize turbulence and increase efficiency.
5-blade composite propeller, secured with stainless steel self-locking nuts: maximum thrust with reduced power consumption.

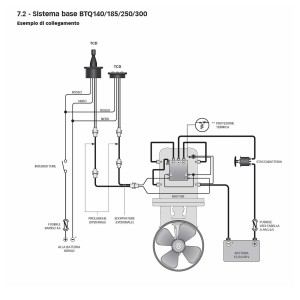

Electrical connections equipped with quick, safe, and practical connectors.

Motor & Safety
Motor built with next-generation materials to deliver consistent performance even under demanding conditions.
Overheating protection ensured by an integrated microprocessor.
Support flange in hard-anodized aluminum for superior corrosion resistance and long service life.

Technical data:
Model: BTQ 250-120;
Propulsion system: Double propeller - 2 Counter-rotating (technopolymer);
Ø Tunnel: 250 mm;
Voltage: 12 V;
Motor power: 6.5 kW;
Thrust: 120 Kgf;
Boat length*: 12-17 m;
Weight: 35.5 kg;

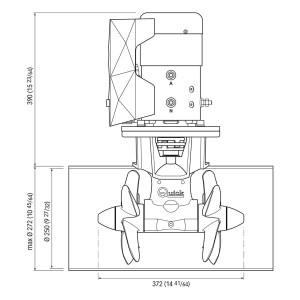

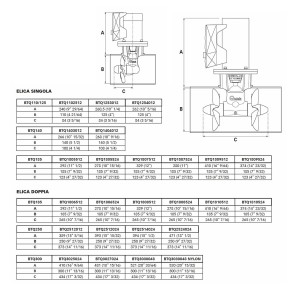

Dimensions: A= 390 mm, B= 250 mm, C= 372 mm.

(*): Indications may vary according to the boat type.

⚠️ Attention:
This item is assembled directly by the manufacturer at the time of order. Delivery takes approximately 10–15 working days; during July, August, and December, slight delays may occur. We will always keep you updated on the status of your order.
